CS 501: Software Engineering

1

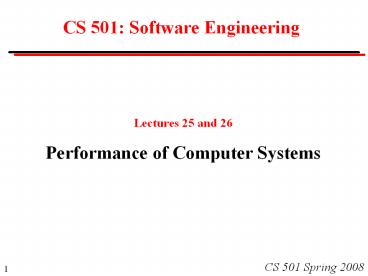

CS 501 Software Engineering
Lectures 25 and 26 Performance of Computer
Systems
2
Administration
Next week Thursday, May 1 no class
3
Software Development as a Profession
Software development demands a high degree of
professionalism.
Question Is software development a branch of
engineering? Answer It depends on how you
define engineering.
4
What is Engineering?
A definition of engineering The profession
of ... creating cost-effective solutions ... ...
to practical problems ... ... by applying
scientific knowledge ... ... and established
practices ... ... building things ... and taking
responsibility for them! With this definition,
software development is clearly engineering
5
What is Engineering?
A second definition of engineering A professional
who is licensed by a professional society
based on a set educational program with a
standard body of knowledge and specified
experience who is the only person permitted to
oversee certain tasks If this is your definition
of engineering it is hard to see it applied to
software development
6
From the National Society of Professional
Engineers
Only a licensed engineer may prepare, sign and
seal, and submit engineering plans ... for public
and private clients. Licensure for
individuals ... is a legal requirement for those
who are in responsible charge of work, ...
Federal, state, and municipal agencies require
that certain positions ... be filled only by
licensed professional engineers. Many states
have been increasingly requiring that those
individuals teaching engineering must be
licensed. State engineering boards are
increasingly ... obtaining the authority to
impose civil penalties against unlicensed
individuals.
7
From Lecture 1The Craft of Software Development
Software products are very varied --gt Client
requirements are very different --gt There is no
standard process for software engineering --gt
There is no best language, operating system,
platform, database system, development
environment, etc. A skilled software developer
knows about a wide variety of approaches,
methods, tools. The craft of software
engineering is to select appropriate methods for
each project and apply them effectively.
8
Crafts, Science, Engineering
Science
Production
Professional Engineering
Commercial
Craft
From Shaw and Garlan
9
Crafts, Science, Engineering
algorithms data structures
compiler construction
software development methodologies
From Shaw and Garlan
10
From Lecture 1Professional Responsibility

• Organizations put trust in software developers
• Competence Software that does not work
  effectively can destroy an organization.
• Confidentiality Software developers and systems
  administrators may have access to highly
  confidential information (e.g., trade secrets,
  personal data).
• Legal environment Software exists in a complex
  legal environment (e.g., intellectual property,
  obscenity).
• Acceptable use and misuse Computer abuse can
  paralyze an organization (e.g., the Internet
  worm).

11
An Old Question Safety Critical Software
A software system fails and several lives are
lost. An inquiry discovers that the test plan
did not consider the case that caused the
failure. Who is responsible (a) The testers
for not noticing the missing cases? (b) The
test planners for not writing the complete test
plan? (c) The managers for not having checked
the test plan? (d) The client for not having
done a thorough acceptance test?
12
Software Developers and Testers Responsibilities
Carrying out assigned tasks thoroughly and in a
professional manner Being committed to the
entire project -- not just tasks that have been
assigned Resisting pressures to cut corners on
vital tasks Alerting colleagues and management
to potential problems early
13
Computing Management Responsibility
Organization culture that expects
quality Appointment of suitably qualified
people to vital tasks (e.g., testing
safety-critical software) Establishing and
overseeing the software development
process Providing time and incentives that
encourage quality work Working closely with the
client Accepting responsibility for work of team
14
Client Responsibility
Organization culture that expects
quality Appointment of suitably qualified
people to vital tasks (e.g., technical team that
will build a critical system) Reviewing
requirements and design carefully Establishing
and overseeing the acceptance process Providing
time and incentives that encourage quality
work Working closely with the software
team Accepting responsibility for the resulting
product
15
Performance of Computer Systems
In most computer systems The cost of people is
much greater than the cost of hardware Yet
performance is important Future loads may be
much greater than predicted A single bottleneck
can slow down an entire system The choice of
systems architecture may lead to a system that
places great demands on the skills of the
implementers.
16
Performance Challenges
Tasks Predict performance problems before a
system is implemented Identify causes and fix
problems after a system is implemented Basic
techniques Understand how the underlying
hardware and networking components interact when
executing the system For each component
calculate the capacity and load Identify
components that are near peak capacity
17
Understand the Interactions between Hardware and
Software
Example execution of http//www.cs.cornell.edu/
domain name service TCP connection HTTP get
Client
Servers
18
Understand the Interactions between Hardware and
Software
Thread
Toolkit
ComponentPeer
targetHelloWorld
run
run
callbackLoop
handleExpose
paint
19
Understand Interactions between Hardware and
Software
start state
fork
join
stop state
20
Look for Bottlenecks
CPU performance is important in certain domains,
e.g. large data analysis (e.g.,
searching) mathematical computation (e.g.,
weather models) multimedia (e.g., video
compression) perception (e.g., image
processing)
21
Look for Bottlenecks
In most domains CPU performance is not the
limiting factor. Common bottlenecks Reading
data from disk Shortage of memory (including
paging) Moving data from memory to
CPU Network load Inefficient software Databas
e access Parallel and sequential processing
22
Timescale
Operations per second CPU instruction 1,000,
000,000 Disk latency 100
read 25,000,000 bytes Network LAN
10,000,000 bytes dial-up modem 6,000
bytes
23
Predicting System Performance
Direct measurement on subsystem
(benchmark) Mathematical models
Simulation Rules of thumb All require
detailed understanding of the interaction between
software and hardware systems.
24
Look for Bottlenecks Utilization
Utilization is the proportion of the capacity of
a service that is used on average.
When the utilization of any hardware component
exceeds 30, be prepared for congestion. Peak
loads and temporary increases in demand can be
much greater than the average.
25
Mathematical Models
Queueing theory Good estimates of congestion can
be made for single-server queues with
arrivals that are independent, random events
(Poisson process) service times that follow
families of distributions (e.g., negative
exponential, gamma) Many of the results can be
extended to multi-server queues.
26
Mathematical Models Queues
arrive
wait in line
service
depart
Single server queue
27
Queues
service
arrive
wait in line
depart
Multi-server queue
28
Behavior of Queues Utilization
mean delay
utilization
1
0
29
Software development for high-performance systems
High-performance computing Large data
collections (e.g., Amazon) Internet services
(e.g., Google) Large computations (e.g, weather
forecasting) Must balance cost of hardware
against cost of software development Some
configurations are very difficult to program and
debug Sometimes it is possible to isolate
applications programmers from the system
complexities CS 530, Architecture of Large-Scale
Information Systems
30
Software development very large databases
Databases Hardware is expensive.
Software development uses commercial database
systems, which do not need specialist
knowledge. But specialist knowledge is needed
to organize data on disks, connect disks to
memory, configure database for backup and restore.
31
Software development cluster computing
Computer clusters are built on large numbers of
commodity computers. Hardware is
cheap(ish). Commercial clusters may have
thousands of nodes and petabytes of disk.
System must assume that hardware components are
unreliable (e.g., Hadoop file system),
bandwidth limited. New techniques (e.g.,
map/reduce) emphasize simple applications
code, so that moderately skilled programmers do
not need to understand complexities of
parallel programming.
32
Measurements on Operational Systems
Benchmarks Run system on standard problem
sets, sample inputs, or a simulated load on the
system. Instrumentation Clock specific
events. If you have any doubt about the
performance of part of a system, experiment with
a simulated load.
33
Example Web Laboratory
Benchmark Throughput v. number of CPUs on SMP
total MB/s
average / CPU
34
Techniques Simulation
Model the system as set of states and
events advance simulated time determine
which events occurred update state and event
list repeat Discrete time simulation Time is
advanced in fixed steps (e.g., 1
millisecond) Next event simulation Time is
advanced to next event Events can be simulated by
random variables (e.g., arrival of next customer,
completion of disk latency)
35
Case Study Performance of Disk Array
When many transaction use a disk array, each
transaction must wait for specific disk
platter wait for I/O channel signal to move
heads on disk platter wait for I/O
channel pause for disk rotation read data Close
agreement between results from queuing theory,
simulation, and direct measurement (within 15).
36
Fixing Bad Performance
If a system performs badly, begin by identifying
the cause Instrumentation. Add timers to the
code. Often this will reveal that the delays are
centered in one specific part of the
system. Test loads. Run the system with
varying loads, e.g., high transaction rates,
large input files, many users, etc. This may
reveal the characteristics of when the system
runs badly. Design and code reviews. Have a
team review the system design and suspect
sections of code for performance problems. This
may reveal an algorithm that is running very
slowly, e.g., a sort, locking procedure, etc. Fix
the underlying cause or the problem will return!
37
Predicting Performance ChangeMoore's Law
Original version The density of transistors in
an integrated circuit will double every year.
(Gordon Moore, Intel, 1965) Current
version Cost/performance of silicon chips
doubles every 18 months.
38
Moore's Law Rules of Thumb
Planning assumptions Every year
cost/performance of silicon chips improves 25
cost/performance of magnetic media improves
30 10 years 1001 20 years 10,0001
39
Moore's Law and System Design
Design system 2006 Production use
2009 Withdrawn from production
2019 Processor speeds 1 1.9
28 Memory sizes 1 1.9 28 Disk
capacity 1 2.2 51 System
cost 1 0.4 0.01
40
Moore's Law Example
Will this be a typical personal computer?
2008 2020 Processor 2.5 GHz 50
GHz Memory 1 GB 30 GB Disc 100 GB
4 TB Network 100 Mb/s 1 Gb/s
Surely there will be some fundamental changes in
how this this power is packaged and used.
41
Parkinson's Law
Original Work expands to fill the time
available. (C. Northcote Parkinson) Planning
assumptions (a) Demand will expand to use all
the hardware available. (b) Low prices will
create new demands. (c) Your software will be
used on equipment that you have not envisioned.
42
False Assumptions from the Past
Unix file system will never exceed 2 Gbytes (232
bytes). AppleTalk networks will never have more
than 256 hosts (28 bits). GPS software will not
last 1024 weeks. etc., etc., .....
43
Moore's Law and the Long Term
What level?
1965
2005
44
Moore's Law and the Long Term
What level?
Within your working life?
1965
When?
2006?
