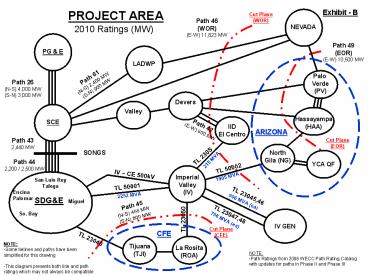

PROJECT AREA
Exhibit - B
Cut Plane (WOR)
Path 46 (WOR) (E-W) 11,823 MW
2010 Ratings (MW)
Path 49 (EOR) (E-W) 10,500 MW
Path 61 (N-S) 2,400 MW (S-N) 900 MW
Path 26 (N-S) 4,000 MW (S-N) 3,000 MW
Path 42 (E-W) 600 MW
ARIZONA
Path 43 2,440 MW
Cut Plane (EOR)
SONGS
TL 230S
215 MVA
Path 44 2,200 / 2,500 MW
TL 50002
IV CE 500kV
1905 MVA
San Luis Rey Talega
TL 50001
Encina Palomar
2252 MVA
TL 23045,46
SDGE
Miguel
906 MVA (ea)
Path 45 (N-S) 408 MW (S-N) 800 MW
So. Bay
TL 23047,48
TL 23050
796 MVA (ea)
Cut Plane (CFE)
CFE
TL 23040
NOTE -Some tielines and paths have been
simplified for this drawing -This diagram
presents both line and path ratings which may not
always be compatible
Tijuana (TJI)
La Rosita (ROA)
NOTE -Path Ratings from 2006 WECC Path Rating
Catalog with updates for paths in Phase II and
Phase III
