Image segmentation using Eigenvectors

1

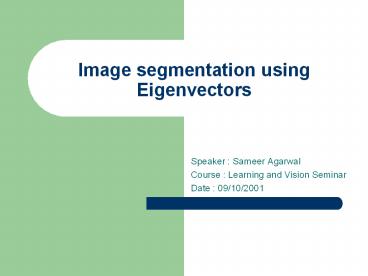

Image segmentation using Eigenvectors

• Speaker Sameer Agarwal
• Course Learning and Vision Seminar
• Date 09/10/2001

2

• Theoretically I might say there are 327
  brightnesses and nuances of color. Do I have
  327 No. I have sky, house, and trees. It is
  impossible to achieve 327 as such. And yet
  even though such droll calculations are
  possible--- and implied, say, for the house 120,
  the trees 90 and the sky 117 I should at least
  have this arrangement and division of the total,
  and not, say, 127 and 100 and 100 or 150 and
  177.
• Laws of Organization in Perceptual Forms
• Max Wertheimer (1923)

3
What is Image Segmentation ?

• Partitioning of an image into related regions.

4
Why do Image Segmentation ?

• Image Compression - Identify distinct components
  within an image and use the most suitable
  compression algorithm for each component to get a
  higher compression ratio.
• Medical Diagnosis - Automatic segmentation of MRI
  images for identification of cancerous regions
• Mapping and Measurement - Automatic analysis of
  remote sensing data from satellites to identify
  and measure regions of interest. e.g. Petroleum
  reserves.

5
How many groups ?
Out of the various possible partitions, which is
the correct one ?
6
The bayesian view

• Given prior knowledge about the structure of the
  data, choose the partition which is most
  probable.
• Problem
• How do you specify a prior for knowledge which
  is composed of knowledge on multiple scales. e.g.
• Coherence
• Symmetry

7
A simple implementation

• Assume that the image was generated by a mixture
  of multiple models
• Segmentation is done in two steps
• Estimate the parameters of the mixture model
• For each point calculate the posterior
  probabilities of it belonging to a cluster.
  Assign to the cluster with the maximum posterior.

8
Why doesnt it work ?

• The model selection problem.
• Number of components ?
• The structure of the components?
• Estimation problem transforms into a hard
  optimization problem. No guarantee of convergence
  to the global optima.

9
Prior Work

• k-means
• Mixture Models (Expectation Maximization)
• k-Medoid
• k-Harmonic
• Self Organizing Maps
• Neural Gas
• Linkage based graph methods.

10
Outline of the talk

1. The Gestalt approach to perceptual grouping
2. Graph theoretic formulation of the segmentation
   problem
3. The normalized cut
4. Experimental results
5. Relation to other methods
6. Conclusions

11
The Gestalt approach

• Gestalt a structure, configuration, or pattern
  of physical, biological, or psychological
  phenomena so integrated as to constitute a
  functional unit with properties not derivable by
  summation of its parts
• The whole is different from the sum of the
  parts

12
The Gestalt Movement

1. Formed by Max Werthheimer, Wolfgang Kohler and
   Kurt Koffka.
2. Rejected structuralism and its assumptions of
   atomicity and empiricism.
3. Adopted a Holistic approach to perception.

13
An Example
Emergent properties of a configuration. The
arrangement of several dots in a line gives rise
to emergent properties, such as length,
orientation and curvature, that are different
from the properties of the dots that compose it.
14
Gestalt Cues
15
And the moral of the story is ..

• Image segmentation based on low level cues cannot
  and should not aim to produce a complete final
  correct segmentation.
• Instead use low-level attributes like color,
  brightness to sequentially come up with
  hierarchical partitions.
• Mid and high-level knowledge can be used to
  either confirm or select some partition for
  further attention.

16
A graph theoretic approach

• A weighted undirected graph G (V,E)
• Nodes are points in the feature space
• Fully connected graph
• Edge weight w(i,j) is a function of the
  similarity between nodes i and j.
• Task Partition the set V into disjoint sets
  V1,..,Vn, s.t. similarity among nodes in Vi is
  high and similarity across Vi and Vj is low.

17
Issues

• What is a good partition ?
• How can you compute such a partition efficiently ?

18
Graph Cut

• G(V,E)
• Sets A and B are a disjoint partition of V
• Cut(A,B) is a measure of similarity between the
  two groups.

19
The temptation

• Cut is a measure of association
• Minimizing it will give a partition with the
  maximum disassociation.
• Efficient poly-time algorithms algorithms exist
  to solve the MinCut problem.
• So why not use it ?

20
The problem with MinCut
21
The Normalized Cut

• Given a partition (A,B) of the vertex set V.
• Ncut(A,B) measures similarity between two groups,
  normalized by the volume they occupy in the
  whole graph.

22
Matrix formulation

• Definitions
• D is an n x n diagonal matrix with entries
• W is an n x n symmetrical matrix

23
After some linear algebra we get..

• Subject to the constraints
• y(i) e 1,-b
• ytD10

24
Real numbers to the rescue

• Relax the constraints on y, and allow it to take
  real value.
• Claim
• The real valued MinNcut(G) can then be solved
  for by solving the generalized eigenvalue problem
• for the second smallest generalized
  eigenvector.

25
Proof

• Rewrite the equation as
• Here
• Lemma 1 is an eigenvector of the
  above eigensystem with eigenvalue 0.

26
Proof(contd.)

• Lemma 2 is a positive
  definite matrix since (D-W) is known to be
  positive semi-definite.
• Lemma 3 z0 is the smallest eigenvector of
  eigensystem.
• Lemma 4 z1 is perpendicular to z0

27
Proof (contd.)

• Lemma 5 Let A be a real symmetric matrix,
  Under the constraint that x is orthogonal to the
  j-1 smallest eigenvectors x1,,xj-1,the quotient
• is minimized by the next smallest eigenvector.

28
Finally..

• By lemma 1 we have y01 is an eigenvector of the
  eigensystem with eigenvalue 0.
• It is the smallest eigenvector.
• Hence by lemma 2, the second smallest eigenvector
  (y1) will minimize the Ncut equation.
• By lemma 3 and 4
• z1tz0 y1tD10

29
What about the first constraint ?

• The second smallest eigenvector is only an
  approximation to the optimal normalized cut.
• y1 minimizes
• Y will take similar values for nodes with with
  high similarity value.

30
The grouping algorithm

1. Given an image, set up the weighted graph
   G(E,V). Set the weight on the edges connecting
   two nodes as a measure of the similarity between
   the nodes.
2. Solve (D-W)x?Dx for eigenvectors with the
   smallest eigenvalues.
3. Use the second smallest eigenvector to
   bipartition the graph.

31
Details..

• The eigenvector takes continuous values, how do
  use it to segment the image ?
• Choose 0 as the splitting point.
• Find the median of the eigenvector and use that
  as the splitting point
• Search amongst l evenly spaced points for one
  which gives the best exact Ncut value.
• Impose a stability criterion on the eigenvector.

32
Stability ?

• Since we allow the eigenvectors to take real
  values. Some eigenvectors might take a smooth
  continuous form.
• We want vectors that have sharp discontinuities,
  indicating separation between regions.
• Measure the smoothness of the vector, and stop
  partitioning when the smoothness value falls
  below a threshold.

33
Detail.. (Contd.)

• How do you partition images with multiple
  segments ?
• 1. The higher order eigenvectors contain
  information about sub-partitions. Keep splitting
  till Ncut exceeds some pre-specified value.
• Problem Numerical Error
• 2. Recursively run the algorithm on successive
  subgraphs.
• Problem Computationally Expensive and the
  stability criterion might prevent correct
  partitioning.

34
Simultanous P-way cut

1. Use the first n eigenvectors as n-dimensional
   indicator vectors of each point. This is
   equivalent to imbedding each point in an
   n-dimensional space.
2. Perform k-means clustering in this new space to
   create pgtp clusters.
3. Use the original 2-way Ncut or a greedy strategy
   to merge these p partitions into p partitions.

35
How good is the approximation ?

• The normalized cheeger constant h is defined as

• We know that the second eigenvalue is bounded by

• This is only a qualitative indication of the
  quality of approximation, it does not say
  anything about how close the eigenvector is to
  the optimal Ncut vector.

36
Example I
37
Distance Matrix
38
The second generalized eigenvector
39
The first partition
40
The second generalized eigenvector
41
The second partition
42
The fourth generalized eigenvector
43
The third partition
44
Example II
45
The structure of the affinity matrix
46
Generalized eigenvalues
47
The first partition
48
The second partition
49
The third partition
50
The fourth partition
51
The fifth partition
52
The sixth partition
53
Complexity Issues

• Finding Eigenvectors for an n x n matrix is O(n3)
  operation.
• This is extremely expensive
• One solution is to make the affinity matrix
  sparse. Only consider nearby points. Efficient
  methods exist for finding eigenvectors of sparse
  matrices.
• Even with the best methods, its not possible to
  perform this task in real time.

54
The Nystrom method

• Belongie et. al. made the observation that the
  affinity matrix has very low rank i.e. the matrix
  has very few unique rows.
• Hence its possible to approximate the
  eigenvectors of the whole affinity matrix by
  linearly interpolating the eigenvectors of a
  small randomly sampled sub-matrix.
• This method is fast enough to give real-time
  performance.
• This is also referred to as the Nystrom method in
  operator theory.

55
Cuts Galore

• The standard Cheeger constant
• defines the ratio cut (Hu Kahng)
• The Feidler value is the solution to the problem
• which known as the average cut.

56
Association or Disassociation ?

• Normalized Cut can be formulated as a
  minimization of association between clusters OR
  as maximization of association within clusters.

57
Average Cut is NOT symmetric

• The average does not share the same relationship
  with its corresponding notion of normalized
  association.
• The RHS gives rise to another kind of cut which
  we refer to as the average association.

58
Relationship between Average,Ratio and Normalized
Cuts
Finding Clumps
Finding Splits
Average Association Assoc(A,A)/A Assoc(B,B)/B Normalized Cut Cut(A,B)/assoc(A,V) Cut(A,B)/assoc(B,V) 2 (assoc(A,A)/assoc(A,V) assoc(B,B)/assoc(B,V)) Average Cut Cut(A,B)/A Cut(A,b)/B
Wx?x (D-W)x?Dx (D-W)x?x
Discrete Formulation
Continuous Formulation
59
Perona and Freeman

• Construct the affinity matrix W for the graphs
  G(V,E)
• Find the eigenvector with the largest eigenvalue.
• Threshold it to get a partition of the nodes of G.

60
Shi Malik

• Construct the matricies W and D.
• Find the second smallest generalized eigen vector
  of (D-W) i.e.
• Threshold y1 to get a partitioning of the graph.

61
A closer look

• Define a new matrix N as
• Lemma If v is an eigenvector of N with
  eigenvalue ?, then D-1/2v is a generalized
  eigenvector of W with eigenvector 1-?. Also
• 0lt ? lt1.
• Hence Perona and Freeman use the largest
  eigenvector of the un-normalized affinity matrix,
  and Shi Malik use the ratio of the first two
  vectors of the normalized affinity matrix.

62
Scott and Longuet-Higgins

• Construct the matrix V whose columns are the k
  eigenvectors of W
• Normalize the rows of V
• Construct the matrix Q V VT
• Segment points using Q. If i and j belong to the
  same cluster, Q(i,j)1, 0 if they belong to
  different groups.

63
In an ideal world..

• A B would be constant and C would be 0. Then W
  can be decomposed as

64
And that tells us..

1. If V is a 2x2 matrix whose columns are the first
   two eigen vectors of W. Then V ODR, where D is
   a 2x2 diagonal matrix and R is a 2x2 rotation
   matrix. Now if W(i,j) on depends on the
   membership of i and j
2. If v1 is the indicator vector(first eigenvector
   of W) of the PF algorithm, then if i and j belong
   to the same cluster then v(i) v(j).
3. If v1 is the indicator vector(second generalized
   eigenvector of W) and if i and j belong to the
   same cluster then v(i) v(j).
4. If Q is the indicator matrix in the the SLH
   method, then Q(i,j)1, 0 otherwise.

65
Non-constant Matricies

• Let A,B be arbitrary positive matrices and C0.
• Let v be the PF indicator vector. If ?(A)1 gt
  ?(B)1 , then v(i) gt0 for all points belonging to
  the first cluster and v(j) 0 for points
  belonging to the second cluster.
• Let v be the SM indicator vector, then v(i)v(j)
  if points i and j belong to the same cluster.
• If ?(B)1 gt ?(A)2 and ?(A)1 gt ?(B)2 then
  Q(i,j) 1 if i,j belong to the same cluster, 0
  otherwise.

66
Conclusions

• Normalized cut presents a new optimality
  criterion for partitioning a graph into clusters.
• Ncut is normalized measure of disassociation and
  minimizing it is equivalent to maximizing
  association.
• The discrete problem corresponding to Min Ncut is
  NP-Complete.
• We solve an approximate version of the MinNcut
  problem by converting it into a generalized
  eigenvector problem.

67
Conclusions (contd.)

• There are a number of approaches which use the
  eigenvectors of matrices related to the affinity
  matrix of a graph.
• Three of these methods can be shown to be based
  on the top eigenvectors of the affinity matrix.
  They differ in two ways
• 1. Which eigenvectors to look at.
• 2. Whether to normalize the matrix or not ?

68
References

1. Normalized Cut and Image Segmentation Jianbo
   Shi and Jitendra Malik
2. Segmentation using eigenvectors a unifying view
   Yair Weiss

69
Acknowledgements

• Serge Belongie for sharing hours of excitement
  and details of Linear Algebra and associated
  wonders.
• Ben Leong for sharing his figures.
• And the music of Tool for keeping me company. ?
