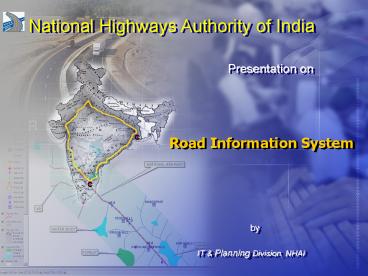

Road Information System

1
Road Information System
National Highways Authority of India
Presentation on


by
IT Planning Division, NHAI
2
Presentation Outline

• Features of the Road Information System
• RIS Uses
• RIS Updation Strategy Process

http//www.nhai-ris.org or http//www.nhai.org
3
RIS Introduction

• Road Information System
• Integrated system for collection and storage of
  highway data for Planning, Programming Project
  preparation.
• Pavement Asset Management System
• RIS Coupled with Decision support tool (HDM-4).

RIS as a Part of Asset Management System
Inventory, roughness, visual
Data

• condition, deflection, traffic, bridges
• On every km of highway

Collection
Road Information System (RIS) - On more than 300
road attributes
Road
Database
Data
Selection of roads segmentation Benchmarking
input file creation
Preparation
Tool
Planning, Project and network level analysis
Strategic and policy outputs
HDM-4
Prioritisation, budgeting multi-year rolling
work programmes, etc.
Management
Information
Development completed Data populated for 11000
km NHs in June 2006 http//www.nhai-ris.org or
http//www.nhai.org
4
RIS Features

• Comprehensive Integrated Database of National
  Highways of NHDP
• - Also being adopted by the Ministry for non
  NHDP National Highways
• Presently 13 modules
• Scalable and Modular Architecture
• Web / WAN enabled application
• User Friendly Data Creation, Retrieval and
  Updation Modules
• Geo-coding of Attribute and Spatial Database with
  each km being given 15 digit ID
• Queries and results possible on Graphical
  Interface (GIS) and Statistical (Tables)

Data Collection using Geo-Referencing System

Road Inventory Condition Data
Topo Sheets
Data Processing to Required Format
Road Network
Traffic Data
Data from DPRs
Socio Economic Data
Thematic Map
http//www.nhai-ris.org or http//www.nhai.org
Attribute data
Spatial Data
GIS
Analysis Modules
Planning Monitoring Output
5
RIS Modules
Locational Referencing System
System Administration
Asset Management System
HDM-4 Integration Module
Pavement Management System
Ad-Hoc Query Module
Integrated RIS coupled with GIS
Performance Management System
Traffic Management System
Bridge Management System
Accident Management System
Document Management System
Environment Management System
Toll Management System
6
RIS Useful for Illustrative List
7
Data Collection Strategy Process
8
Data Collection Strategy Process
9
Data Collection Strategy Process
10
Data Collection Strategy Process

• Data Collection from Secondary Sources Like
• Environment related data Manual of MOEF / DOM
• Rise, fall, rise percentage, total rise and
  fall, number of rise and fall,
• Curvature and Super Elevation
• Pavement Structural Number
• Pavement layer thickness, layer material
• Sub-grade strength
• Pavement history

11
