Slide no.1

1

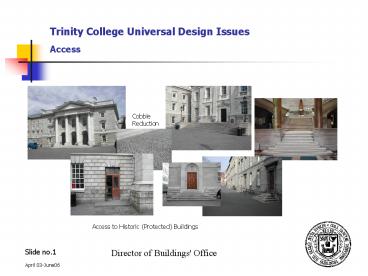

Trinity College Universal Design IssuesAccess
Cobble Reduction
Access to Historic (Protected) Buildings
2
Trinity College Universal Design IssuesAccess
Hide
Erase
3
Trinity College Universal Design
IssuesTemporary/immediate solutions
Hide
Erase
House 39 Law School
Anatomy Building
4
Trinity College Universal Design Issues
Permanent solutions Historic Buildings
Hide
Erase
Front Square Houses New access ramps
5
Trinity College Universal Design IssuesPermanent
solutions - Historic Buildings
Hide
Erase
House 27
Entrance to Catex
6
Trinity College Universal Design Issues
Permanent solutions Historic Buildings
Hide
Erase
The Old Library
The GMB (Sounder/beacon retrofitted)
7
Trinity College Universal Design Issues
Permanent solutions Historic Buildings
Hide
Erase
Cobble Reduction
8
Trinity College Universal Design IssuesPermanent
solutions - New Buildings
Hide
Erase
SNIAMS (automatic doors)
East End 4/5
9
Trinity College Universal Design IssuesPermanent
solutions - New Buildings
Hide
Erase
Berkeley Podium (ramp)
Ussher Podium (platform lift) Sounder/beacon
retrofitted)
10
Trinity College Universal Design IssuesPermanent
solutions - Existing Buildings
Hide
Erase
Lecky Library (Arts Building)
11
Trinity College Universal Design IssuesPermanent
solutions- New Buildings
Hide
Erase
Ussher/Berkeley Library (ramp and lift)
12
Trinity College Universal Design IssuesGeneral
Facilities
Hide
Erase
UA Toilet
Desiginated Parking Bay
13
Trinity College Universal Design IssuesPermanent
solutions- New Buildings
Hide
Erase
Ussher/Berkeley Library (ramp and lift)
14
Trinity College Universal Design IssuesInterim
solutions
Hide
Erase
Portable Ramp
15
Trinity College Universal Design IssuesGeneral
Requirements

• Mobility ease of access for all
• Hearing Induction loops, strobe alarms
• Vision Tactile clues, lighting, audible alarms

Hide
Erase
16
Trinity College Universal Design IssuesCompleted
Projects Lecture Halls

• Accessible for all new buildings
• Note Access to lecture theatres in old buildings
  to be considered.

Hide
Erase
17
Trinity College Universal Design IssuesCompleted
Projects Goldsmith Hall Residences

• All units accessible by lift
• All units visitable and adaptable when
  required.
• Specifically designed bathrooms available.

Hide
Erase
18
Trinity College Universal Design IssuesCompleted
Projects Botany Bay Residences

• Refurbishment
• Provision of 9 no places in 3 no. units
• Each unit is fully adapted to suit Universal
  Design requirements
• Including specifically designed kitchens and
  bathrooms
• In addition facilities can be provided for both
  the visually impaired and deaf persons in the
  remaining units.

Hide
Erase
19
Trinity College Universal Design IssuesCurrent
Programs/Projects - Trinity Hall Residences

• Each of the three new buildings is fully
  accessible
• All apartments are 'visitable
• 45 of 938 bed spaces are enabled bed spaces with
  specially designed toilet/shower facilities with
  'nurse call' system centrally monitored and
  enabled kitchen facilities.
• Each apartment has an 1800 turning circle for
  wheelchair access.
• All switches, door furniture etc are universally
  accessible-visibility socket switches fitted
• Specifically designated parking bays
• Provision of facilities for both the visually
  impaired and deaf occupants.

Hide
Erase
20
Trinity College Universal Design IssuesPriority
List 1

• GMB internal lift
• The Pavilion Bar platform lift.
• East Theatre automate entrance door.
• Arts Building (Faculty Area) automate
  doors/platform lift
• Chemistry Building improve access to Large
  Lecture Theatre.
• Physiology/Zoology Building Access provision.
• The Boathouse provision of UA toilets
• Santry Pavilion provision of UA toilets/changing
  room

Hide
Erase
21
Trinity College Universal Design IssuesPriority
List - General

• Induction Loop System
• Deaf alerter Fire Alarms.
• Cobble reduction.
• Improve external/internal circulation routes
• Visual/tactile provisions.

Hide
Erase
22
Trinity College Universal Design IssuesFor
Consideration

• Front Square Access provision/automate doors
• Provosts House Access provision.
• New Square Access provision/automate doors
• East End Improve access to existing buildings.
• Islandbridge improve access/lift installation/UD
  facilities.
• Santry Pavilion improve access/lift
  installation/UD facilities.

Hide
Erase
