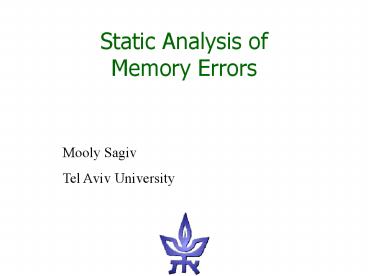

Static Analysis of Memory Errors

1
Static Analysis of Memory Errors
Mooly Sagiv Tel Aviv University
2
Project Goals

• Statically determine that data are used in a
  sound way
• No unexpected software behavior
• In C
• No undefined semantics (ANSI C)
• Prevent bad programming styles
• In Java
• Certain exceptions will never be raised
• Sound analysis
• Minimal false alarms

3
Sample Cleanness Problems

• C String related errors
• Unsafe calls to strcpy(), strcat()
• Out of bound references
• Pointer arithmetic
• Java interface requirements for library usages

4
String Manipulation Cleanness Checking
Nurit Dor Greta Yorsh
http//www.cs.tau.ac.il/nurr
5
Are String Violations Common?

• FUZZ study (1995)
• Random test programs on various systems
• 9 different UNIX systems
• 18 23 hang or crash
• 80 are string related errors
• CERT advisory
• 50 of attacks are abuses of buffer overflows

6
Example unsafe call to strcpy()
simple() char s20 char p char t
10 strcpy(s,Hello) p s
5 strcpy(p, world!) strcpy(t,s)
7
Example unsafe call to strcpy()
simple() char s20 char p char t
10 strcpy(s,Hello) p s
5 strcpy(p, world!) strcpy(t,s)
cleanness is always violated alloc(t)
10 len(s) 12
8
Example unsafe pointer arithmetic
/ from web2c strpascal.c / void
null_terminate(char s) while ( s !
) s s 0
9
Example unsafe pointer arithmetic
/ from web2c strpascal.c / void
null_terminate(char s) while ( s !
) s s 0
Cleanness is potentially violated offtset(s)
alloc(buff(s))
10
Complicated Example
/ from web2c fixwrites.c / define BUFSIZ
1024 char bufBUFSIZ char insert_long(char
cp) char tempBUFSIZ for (i 0
bufi lt cp i) tempi
bufi strcpy(tempi,(long)) strcpy(temp
i6,cp)
(long)
temp
11
Complicated Example
/ from web2c fixwrites.c / define BUFSIZ
1024 char bufBUFSIZ char insert_long(char
cp) char tempBUFSIZ for (i 0
bufi lt cp i) tempi
bufi strcpy(tempi,(long)) strcpy(temp
i6,cp)
buf
cp
( l o n g )
temp
Cleanness is potentially violated 7 offset
(cp) ?BUFSIZ
12
Complicated Example
/ from web2c fixwrites.c / define BUFSIZ
1024 char bufBUFSIZ char insert_long(char
cp) char tempBUFSIZ for (i 0
bufi lt cp i) tempi
bufi strcpy(tempi,(long)) strcpy(temp
i6,cp)
(long)
temp
Cleanness is potentially violated offset(cp)7
len(cp) ? BUFSIZ 7 offset (cp) lt BUFSIZ
13
Vulnerable String Manipulation

• Pointers to buffers char p buffer
  while( ) p
• Standard string manipulation functions
• strcpy(), strcat(),
• NULL termination
• strncpy(),

14
C Static String Verifier (CSSV) Objectives

• Modular analysis
• Procedure pre-condition/post-condition/mod
• Automatically generate procedure specification
• Handle full C
• Multi-level pointers
• Structures
• Reduce complexity of transformation
• Linear in the number of variables

15
CSSV
Pointer Analysis
ProceduresPointer info
Procedure name
C2IP
Integer Proc
Potential Error Messages
Integer Analysis
16
Advantages of Procedure Specification

• Modular analysis
• Not all the code is available
• Enables more expensive analyses
• User control of the verification
• Detect errors at point of logical error
• Improve the precision of the analysis
• Check additional properties
• Beyond ANSI-C

17
Specification and Soundness

• All errors are detected
• Violation of procedures precondition
• Call
• Violation of procedure's postcondition
• Return
• Violation of statements precondition
• ai

18
Specification strcpy

• char strcpy(char dst, char src)
• requires mod
• ensures

( string(src) ? alloc(dst) gt len(src) )

• len(dst), is_nullt(dst)

( len(dst) pre_at_len(src) ? return
pre_at_dst )
19
Specification insert_long()
/ insert_long.c / include "insert_long.h"
char bufBUFSIZ char insert_long (char cp)
char tempBUFSIZ int i for (i0
bufi lt cp i) tempi bufi
strcpy (tempi,"(long)") strcpy
(tempi 6, cp) strcpy (buf, temp)
return cp 6
char insert_long(char cp) requires(
string(cp) ? buf ? cp lt buf BUFSIZ ) mod
cp.strlen ensures ( len(cp)
prelen(cp) 6 ? return_value cp
6 )
20
CSSV
Pointer Analysis
ProceduresPointer info
Procedure name
C2IP
Integer proc
Potential Error Messages
Integer Analysis
21
CSSV
Pointer Analysis
ProceduresPointer info
LeafProcedure
C2IPside effect
Mod
Integer proc
22
CSSV
Pointer Analysis
ProceduresPointer info
LeafProcedure
C2IP
Pre Mod
Integer proc
Potential Error Messages
Integer Analysis
23
C2IP
char insert_long (char cp)
char tempBUFSIZ
int i
require string(cp)
for(i0 bufi lt cp i)
tempicpi
strcpy(tempi,"(long)")
24
AWP

• Approximate the Weakest Precondition
• Backward integer analysis
• Generates a precondition

25
AWP insert_long()

• Generate the following precondition
• string(cp) ?

• len(buf) ? offset(cp) 1017

• Not the weakest precondition
• string(cp) ?
• len(buf) ? 1017

26
Implementation

• Using
• ASToolKit Microsoft
• GOLF Microsoft Manuvir Das
• New Polka IMAG - Bertrand Jeannet
• Main steps
• Simplifier
• Pointer analysis
• C2IP
• Integer Analysis

27
Preliminary results (web2C)

• Up to four times faster than SAS01

28
Preliminary results (EADS/RTC_Si)
29
The Canvas Project Component ANnotation,
Verification And Stuff

• J. Field
• D. Goyal.
• G. Ramalingam

IBM Research
http//www.research.ibm.com/menage/canvas
30
The problem

• Class libraries and software components are
  supposed to
• make building complex applications from "parts"
  easier
• make a market for pre-packaged code...
• ...but in practice
• programming with components is hard
• inadequate documentation
• lack of source code
• increased API complexity (to allow for
  customization)
• Programmers often resort to iterative
  trial-and-error methods to get components to work
  in their application

31
Canvas Goals

• The component designers specify component
  conformance constraints
• Develop automated certification tools to
  determine whether the client satisfies the
  component's conformance constraints
• focus on JavaTM libraries and JavaBeansTM

32
Our Approach

• Specify component behavior in a Java like
  language (EASL)
• Use TVLA for statically analyzing Java heap
• Specialize the algorithm for the component

33
The Concurrent Modification Problem(PLDI02
Berlin)

• Static analysis of Java programs manipulating
  Java 2 collections
• Inconsistent usages of iterators
• An Iterator object i defined on a collection
  object c
• No use of i may be preceded by update to the
  contents of c, unless the update was also made
  via i

34

• class Make
• private Worklist worklist
• public static void main (String args)
• Make m new Make()
• m.initializeWorklist(args)
• m.processWorklist()
• void initializeWorklist(String args)
• ... worklist new Worklist() ...
• // add some items to worklist
• void processWorklist()
• Set s worklist.unprocessedItems()
• for (Iterator i s.iterator()
  i.hasNext())
• Object item i.next()
• if (...) processItem(item)
• void processItem(Object i) ...
  doSubproblem(...)
• void doSubproblem(...)
• ... worklist.addItem(newitem) ...

• public class Worklist
• Set s
• public Worklist() .
• .. s new HashSet() ...
• public void addItem(Object item)
  s.add(item)
• public Set unprocessedItems()
• return s
• return rev

35
EASL Specification
class Version
class Collection Version version
Collection() version new Version()
boolean add(Object o) version new
Version() Iterator iterator() return new
Iterator(this)
class Iterator Collection set Version
definingVersion Iterator (Collection s)
definingVersion s.version set s
void remove() requires (definingVersion
set.version) set.ver new Version()
definingVersion set.version Object
next() requires (definingVersion
set.version)
36
Prototype
Jimple AST
CFG actions
J2TVP Translator
Java
Soot
EASL
Specialize
Three Value Logic Analyzer
action definition
Analysis result Potential cleanness violations
37
Empirical Results
38
Conclusion

• Ambitious sound analyses
• Very few false alarms
• Scaling is an issue
• Use staged analyses
• Use modular analysis
• Use encapsulation
