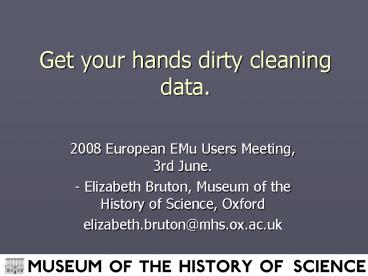

Get your hands dirty cleaning data.

1
Get your hands dirty cleaning data.

• 2008 European EMu Users Meeting, 3rd June.
• - Elizabeth Bruton, Museum of the History of
  Science, Oxford
• elizabeth.bruton_at_mhs.ox.ac.uk

2
Outline

• Data Migration
• Problem -gt Solution approach
• Tools
• Manual Data Cleaning
• Examples
• Current and Future Practices (Documentation,
  Policing, Review)?

3
Data Migration

• First step towards better, cleaner data
• Steps
• Prepare and analyse legacy system
• Data mapping
• KE EMu system design
• Data migration

4
Legacy System Analysis

• Prepare and analyse previous (legacy) system
• Data structure and relationships - tables and
  fields.
• Primary
• Secondary
• Cross-reference
• Documentation and usage
• Redundant data

5
Legacy Data analysis
6
Data Mapping
7
KE EMu system design

• Default and additional fields across different
  modules
• Field titles
• Screen Designer
• e.g. Summary tab for ecatalogue module
• Finally data migration

8
Data cleaning overview

• Problem -gt solution approach
• Input data
• Operations
• Output data
• Manual or automated operations or both?
• Which tools to use for automated operations?
• KE EMu tools many powerful built-in tools
  within EMu
• Non-KE EMu tools scripts to use on data
  imported from EMu reimport back into EMu
• Both

9
KE EMu Tools Texql

• KE Texpress Texql queries
• Similar syntax to mySQL or SQL
• Uses
• Analysing data and data structure
• Analysing search queries
• Advanced search queries

10
KE EMu Tools Global Replace

• Very useful, powerful but also potentially
  dangerous tool
• Can use in combination with search query or list
  options within EMu
• Can use regular expressions and/or wildcard
  searches
• Powerful tool for single field or Field A-gtField
  B operations

11
KE EMu Tools Record Merge

• Does what it says on the tin
• Merge one or more duplicate record(s) into single
  record
• Only attachments to different modules are
  merged into record not data
• Ditto tool can be used for easily copying data
  from one record to another
• Attachments to original duplicate record(s) are
  removed so records can be deleted

12
KE EMu Tools Reports

• Tool to present information in assorted ways
• Can be used to produce reports but can also be
  used as data export tool
• Microsoft Excel or CSV format appropriate for
  more advanced data operations

13
Non-KE EMu Tools Scripting

• Personally use php and mySQL
• Perl is also useful scripting tool used by KE
• Have written CSV to mySQL file checker and
  converter in php
• Then run more advanced operations on data using
  php scripts
• PhpMyAdmin can export data in many formats
  including CSV

14
Non-KE EMu Tools Scripting

• Systematic Approach
• Keep copy of original data
• Produce data mapping or data cleaning document
• Perform operations using php file on mySQL table
• Check data produced (manual or automatic) and
  output logs
• Validate data in EMu and then import

15
Manual Data Cleaning

• Some problems cannot be done automatically,
  either partially or entirely
• Need to be eyeballed by a person, preferably
  someone familiar with the museums collections

16
Example Parties Records

• Legacy system used two systems of noting object
  makers
• Freetext Maker field with no centralised system
  (11 ratio) used for applicable records
• Assigned makers with centralised system only
  used for first 3,000 or so records
• Freetext data imported into EMu resulted in
  approximately 5,500 Parties records

17
Example Parties Records

• Good example of mapping freetext field to more
  structured data field with 1Many ratio
• KE ran script which detected maker type and
  formatted accordingly, i.e. Maker Type etc
• But still much cleaning up to be done
• Two approaches automatic then manual

18
Example Parties Records

• Problem Creation-related data within legacy
  system were all free-text fields
• The museum wanted to keep this data in some
  format as it contained valuable information, such
  as ambiguities or uncertainties
• e.g. Italy or France, Attributed to Smith
  Jones, possibly last quarter of 19th century etc

19
Example Parties Records

• This data did not fit neatly into defined,
  structure fields such as Parties, Places or
  Creation Date
• Also wanted to clean Parties records
• Solution Automatic batch process then manual
  cleaning

20
Example Parties Records Automatic Approach

• Exported Creation data (Parties, Place, Creation
  Date) from EMu
• Ran script which checked for and removed
  duplicates in Parties and Place
• Note The above operation deleted rather than
  manipulated data but still integral part of data
  cleaning operation
• Copied cleaned Parties, Place, Creation Data into
  single free-text field Creation Notes
• Re-imported data into EMu using Import Tool

21
Example Parties Records Automatic Approach

• Began data cleaning by running Global Replace
  operation within EMu eparties module, removing
  'Signed by', 'Attributed to', or 'Made by' from
  the relevant parties records
• Next Manual Approach

22
Example Parties Records Manual Approach

• Cleaned records Check Parties Type (Person or
  Organisation) and edited records (Surname,
  Forename, Organisation etc)?
• Merged and deleted duplicate records
• Checked and deleted unattached parties records

23
Example Parties Records End Result

• Currently have 3,300 cleaner Parties records

24
Current and Future Practices

• Current
• Systematic approach to data cleaning
  incorporated into monthly museum EMu Users'
  Meeting
• Review
• In Progress
• Documentation
• Future
• Policing

25
Conclusion

• Data cleaning and policing is an ongoing process
  for an institution of any size
• Data standards must be set and adhered to
• Needs to be approached and done in a systematic
  way
• Any questions?
