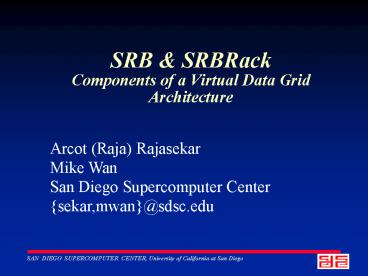

SRB SRBRackComponents of a Virtual Data Grid
Architecture
Arcot (Raja) Rajasekar Mike Wan San Diego
Supercomputer Center sekar,mwan_at_sdsc.edu
2
Why do we need Data Grids?

• Data is distributed
• Computation is done remotely
• Distributed Computation
• Large-scale Data Movement
• Sharing of Data across Security Realms
• Large Data stored beyond computation
• Need to access multiple data sets

3
What are Data Grids?

• Power Grid Analogy
• Multiple power generators
• Complex transmission networks with switching
• Simple Usage Interface plug and play
• Guaranteed Supply - Meeting of demands (peak and
  lull)
• Complex cost function
• More than one data provider
• Best movement of data across computer networks
• Seamless Access to Data with good Finding Aids

• Guarantee of Data Access
• Access Control, Quotas Complex Usage Costing

4
Hayden Planetarium
NCSA
SGI
NY
AMNH NYC
2.5 TB UniTree
visualization
data simulation
SDSC
CalTech

GPFS 7.5 TB
IBM SP2
BIRN
HPSS 7.5 TB
UVa
rendering
5
Data involved in Hayden

• ISM Interstellar Medium Simulation
• run by Mordecai Mac Low of AMNH at NCSA
  2.5 Terabytes sent from NCSA to SDSC. Data
  stored in SRB (HPSS, GPFS).
• Ionization
• Simulation run at AMNH
• 117 Gigabytes sent from AMNH to SDSC. Data
  stored in SRB.
• Star motion
• Simulation run at AMNH by Ryan Wyatt
  38 Megabytes sent from AMNH to SDSC.
• Rendering Movies
• Intermediate Steps produced 7.5 Terabytes. Data
  stored in SRB (SDSC, CalTech)

6
Data Grid Requirements

• Functional
• Logical
• Service-oriented
• Administrative
• Physical

7
Data Grid Requirements 1(Functional)

• Seamless Access
• Scale in Size Number
• Guaranteed Delivery
• Fault tolerance, load sharing
• Replication, Consistency Maintenance
• Handle Heterogeniety Multiplicity
• Platforms systems, vendors, types of storage,
  types of services, types of processes users
• Controlled Data Movement
• Demand-driven Data placement
• Caching, archiving, version and locks
• Third-party data movement
• Parallel data transfer
• Server-driven or client-controlled

8
Data Grid Requirements 2 (Logical)

• Handle Autonomous Authentication
• Multiple Authentication Realms single sign-on
• Uniform user name space
• Authorization Access Control
• Seamless One-stop authorization
• Roles Tickets inheritance longevity
• Virtual Data Organization
• Data Location Independence
• Uniform data name space, persistent identifiers
• Collections Hierarchy
• Integrate with Metadata
• finding aids complex querying browsing
• System, user-defined, domain-specific,
  application
• Access Control for Metadata

9
Data Grid Requirements 3 (Service-oriented)

• Data Services
• Third party services
• Web- accessibility (HTTP GET, WSDL, SOAP)
• Language API
• Computational Grid Interaction - Globus
• Examples
• Ingestion, Certification and Authenticity
• Value-added integration
• Server-side Operations
• Close-to-data
• Proxy-operation (security/access considerations)
• Bulk Operations - batch
• JIT operations interactive or on-demand
• Seamless Chaining and Composition
• Examples
• Data Filtering Eg. Data Cutter
• Format Conversion Eg. Thumbnail creation
• Metadata Extraction

10
Data Grid Requirements -4 (Administrative)

• Virtual Administration
• Single-point administration
• Autonomous local control
• Multiple-levels of administrations
• Roles and Responsiibilities
• Policy Management
• Distributed Caching, Archiving, Replication
  Data Placement
• Locking, Pinning, BackUp
• Data Movement
• Preferences, Priorities Administration
• Auditing, Quotas, Pricing

11
Data Grid Requirements 5(Physical)

• Storage
• Hierarchical Storage Systems, Tapes, Disks, SAN,
  NAS, NFS, Databases, FTP servers, HTTP servers,
  WSDL services,
• Integration on Device Characteristics
• Storage Bricks
• Distributed Cluster Storage
• Network
• Characteristics
• NWS
• Guaranteed Service

12
SRB A Data Grid Solution

• The Storage Resource Broker is a Middleware
• It provides uniform access to data in
  heterogeneous resources
• It uses a MetaCatalog to facilitate the brokering

MCAT
Application
SRB Server
HRM DB2, Oracle, Illustra, ObjectStore
HPSS, ADSM, UniTree
UNIX, NTFS, HTTP, FTP
13
SRB Concepts

• Abstraction of User Space
• Single sign-on
• Multiple authentication schemes
• certificates, passwords, tickets, group
  permissions, roles
• Virtualization of Resources
• Resource Location, Type Access transperancy
• Logical Resource Definitions - bundling
• Abstraction of Data and Collections
• Virtual Collections Persistent Identifier and
  Global Name Space
• Replication Segmentation
• Data Discovery system application metadata
• User-defined Metadata Structural Descriptive
• Attribute-based Access (path names become
  irrelevant)
• Uniform Access Methods
• APIs, Command Line, GUI Browsers, Web-Access
  (Portal,WSDL, CGI)
• Parallel Access with both Client and
  Server-driven strategies

14
Federated SRB Operation
Peer-to-peer Brokering
Read Application
Parallel Data Access
Logical Name Or Attribute Condition
1
6
SRB server
5/6
SRB server
3
4
5
SRB agent
SRB agent
2
Server(s) Spawning
R1
MCAT
1.Logical-to-Physical mapping 2. Identification
of Replicas 3.Access Audit Control
Data Access
R2
15
SRB Rack

• Brick of Disk Storage
• 1TB to 4TB possibly more
• Linux-based
• Pluggable
• Self-organizing
• Each Brick may be internally RAIDed
• Processor for Data-side Operations
• High-speed Network Connection

16
SRB Rack
17
Biomedical Information Research Net
18
Conclusion

• SRB provides
• a uniform interface to heterogeneous data
  resources
• logical name space management
• a replica management and mapping
• attribute-based data discovery access
• parallel access to replicated data
• SRB Rack
• Data brick which can be plugged into data grids
• Storage as a service component
• Easy Management lights out
• Collection-level RAIB
