DATA BASE DESIGN

1

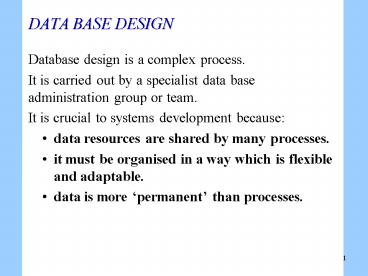

DATA BASE DESIGN

• Database design is a complex process.
• It is carried out by a specialist data base
  administration group or team.
• It is crucial to systems development because
• data resources are shared by many processes.
• it must be organised in a way which is flexible
  and adaptable.
• data is more permanent than processes.

2
DATA BASE DESIGN

• Database design can be seen as a three step
  process in the SDLC
• 1. Conceptual data modelling
• (Analysis phase)
• 2. Logical database design
• (conceptual model ? logical data description for
  the DBMS)
• 3. Physical database design
• (how the database will be organised and accessed
  on the storage devices)

3
Database Design Data ModellingReference
Whitten Bentley, Chap. 12

• Data Modelling
• Describes and documents data that must be stored
  in a database.
• Many different modelling standards are in use.
• The different standards vary in the symbols they
  use, not the concepts that they model.
• Also known as information modelling.

4
Data modelling

• The Logical model
• Shows what data the business system uses.
• Identifies the business constraints on the data.
• Is implementation independent.
• Is part of the requirements specification during
  the Analysis stage.
• Entity-Relationship diagrams (ERDs) are an
  example of a popular logical modelling technique

5
Data modelling

• The Physical Model
• Shows how the system is physically and
  technically implemented.
• Prepared during the Design stage.
• Includes
• Attributes Domains are defined
• Distribution of data is determined
• Database architecture is selected
• Media are selected
• Indexes are defined
• Security permissions are determined

6
Data modelling v process modelling

• Data models help analysts to quickly identify
  business vocabulary better than process models.
• Data models are almost always built more quickly
  than process models.
• Process modellers often get hung up on
  unnecessary detail.
• Data models for existing and proposed systems are
  far less likely to be thrown away as the system
  development proceeds.

7
Data Modelling vs Object Modelling

• Data Modelling (relational)
• Data models focus on data which needs to be
  stored.
• Process models are developed separately from data
  models.
• Object Modelling
• Object modelling combines processes with the data
• Object modelling models persistent objects as
  well as transient or temporary objects.

8
Data Modelling vs Object Modelling (cont)

• Most databases are designed on the relational
  model.
• Most systems are developed using the object model
• BUT
• The database design remains relational
• In this hybrid environment a common approach to
  handle the differences is
• Each persistent class is mapped to a table

9
Class Diagram
Becomes
Relational
10
ERD definitions

• Entity - something about which we want to store
  data.
• Relationship - an association that exists
  between one or more entities.
• Cardinality - the complexity, or multiplicity of
  each relationship.
• Degree - the number of entities that can
  participate in the relationship.

11
ERD definitions

• Attribute - a property or characteristic of an
  entity.
• Data type - defines what class of data can be
  stored in an attribute.
• Key - one or more attributes that uniquely
  identify an instance of an entity.

12
Sample ERD
13
Developing a logical model

• Entities are discovered and defined.
• A context data model is built
• Shows fundamental entities and relationships.
• Business rules are identified.
• A key-based model is built, which eliminates
  non-specific relationships and adds associative
  entities.
• All entities in this model are given keys.

14
Developing a logical model

• A fully attributed model is built, showing all
  the attributes to be stored in the system.
• A fully described model is built, which defines
  each attributes domain (ie. its properties and
  legitimate values ).

15
Data dictionary

• The data dictionary is an alphabetic list of all
  the data items and their definitions.
• The data dictionary should be developed at the
  same time as the ERD or Class Diagram.
• eg.
• campus-code
• unique identification for a record in the
  Campus table 1-letter string, in uppercase
• department-code
• unique identification for a record in the
  Department table 3-letter string, in uppercase

16
Data dictionary cont

• Participant
• table of people who have enrolled in classes
  _at_participant-id participant-firstname
• participant-surname preferred name
  participant-gender participant-type
• (campus-code) (department-code)
  participant-phone (participant-fax)
  participant-email

17
Data dictionary cont

• participant-email electronic mail address of
  this person 50-character string
• participant-fax facsimile number of this
  person 15-character string
• participant-firstname the first given name of
  this person in full (ie. Robert, not
  Bob)20-character string
• participant-gender the gender of this person
  Male Female
• participant-id unique identification number
  for a record in the Participant table
  automatically generated by the system when the
  record is created 8-character string, minimum
  length 8
• (note the alphabetical order of attributes for
  the table)

18
Data dictionary cont

• participant-password the password used to
  verify this person when they access the system
  8-character string, minimum of 4-characters
• participant-phone telephone number of this
  person 15-character string
• participant-surname the family name of this
  person 30-character string
• participant-type where does this person come
  from? Academic staff General staff External
  staff Student

19
Developing the physical model

• Database design transforms the logical data model
  into a physical data model (or database schema).
• The technical capabilities and limitations of the
  database technology are identified and resolved.
• Performance requirements are defined.
• Normalisation is used to ensure adaptability,
  flexibility and efficiency of stored data.
• Construction of the physical model is dependent
  on samples of data, facts and information
  supplied by users.
• Users must verify that the model is correct.

20
A Method for Database Design

• Review the logical data model.
• Create a table for each entity.
• Create fields for each attribute.
• Create an index for each primary and secondary
  key.
• Create an index for each subsetting criterion.
• Designate foreign keys for relationships.
• Define data types, sizes, null settings, domains,
  and defaults for each attribute.
• Create or combine tables to implement supertype/
  subtype structures.
• Evaluate and specify referential integrity
  constraints.

21
Data architecture

• Files, Tables and Databases that store data
• Technology used to store database engine or file
• The distribution of the data
• The organisational structure which manages the
  data resources.
• responsible for the database technology
• design and construction, security, backup and
  recovery, and performance tuning.

22

• Common components of data architectures
• Operational (or production) databases, which
  support day-to-day operations.
• Data warehouses, containing read-only information
  extracted from the production databases.
• Personal and work group (or departmental)
  databases.

23
Files versus Database
24
Typical DBMS Architecture
25
Database management system (DBMS)

• A DBMS is specialised software that is used to
  create, access, control and manage the database.
• The core of a DBMS is the database engine, which
  executes specific commands to create database
  structures, and to create, read, update, and
  delete records in the database.
• Data definition language (DDL) is used by the
  DBMS to physically establish the record types,
  fields, and structural relationships, and to
  define views of the database.
• A data manipulation language (DML) is used to
  create, read, update and delete records in the
  database, and to navigate between different
  records.
• The DBMS and the DML hide details concerning how
  the records are physically organised and
  allocated to the disk.

26
Relational databases

• Data is stored in tables where relationships
  between data in different tables are supported
  (through links).
• The DDL and DML of most relational databases is
  called SQL (structured query language).
• Nearly all relational DBMSs support the SQL
  language standards (eg. Oracle, IBMs Database
  Manager, MS SQL Server, Sybase for large
  systems, and MS Access, Foxpro, Paradox, dBASE
  for desktop PCs).
• Require data to be normalised to prepare the data
  model for implementation as a simple,
  non-redundant, flexible and adaptive database.

27
Relational Database schema

• Database is defined in terms of tables, keys,
  indexes, and integrity rules.
• Each entity is implemented as a physical table.
• Each table has a primary key, and a index based
  on that key.
• Each table may have zero or more secondary keys,
  and an index based on each of these keys.
• A foreign key can be used to match the primary
  key in a related table to allow the tables to be
  joined.
• Attributes are implemented as fields.

28
Common Database Terms

• Definitions
• Field - (column or attribute) the smallest unit
  of meaningful data that can be stored.
• Record - (or row) a collection of related
  fields.
• Table - collection of similar records.
• Index - a list to assist with table searches or
  enforce key integrity.
• Database - a collection of inter-related tables.
• Data is a resource that must be controlled and
  managed.

29
Defining the fields

• Attribute - which data element is it?
• Field name - how will it be identified in the
  table?
• Data type - string, numeric, boolean, date, ?
• Field size - how many characters, digits,
  decimal places?
• Null? - can the field be left empty?
• Domain - what range of values are legal?
• Default - what value is initially offered to the
  user?
• any other relevant information about the
  attribute.

30
MS-Access example

• Participant table definition

31
Indexes

• An index is a way of ordering the records in the
  table.
• Indexes are used for
• rapid access to data
• searching for a specific record in a table.
• displaying records in a report in a particular
  order.
• looking up a related table for the record which
  matches a foreign key value.
• A table may have many indexes, but should have at
  least one based on the primary key (ie. the
  primary index).
• This key is used to preserve uniqueness of the
  key

32
Indexes (cont)

• Searching for a record without an index requires
  a sequential search.
• On average, half the records will need to be
  searched.
• Searching for a record with an index uses a
  binary search.
• Greatly reduces the number of records that need
  to be searched.
• If a query will return a large number of records,
  using indexes may slow the return of the results.

33
MS-Access example

• Indexes for the Participant table

34
Data and referential integrity

• Key integrity
• every table should have a primary key (which may
  be concatenated).
• no two records in a table can have the same
  primary key value.
• a primary key value must never be Null.
• Domain integrity
• no field can take a value outside its range of
  legal values.
• Referential integrity
• a foreign key value in one table must have a
  matching primary key value in the related table.
• record deletion rules must consider this.

35
Estimating database capacity

• Database administrator will need to calculate the
  amount of disk space required for the database.
• Calculation involves
• summing the field sizes to get the record size.
• forecasting the number of records that will be in
  the table after a given period of time.
• multiplying the number of records by the record
  size to get the table size
• summing the table sizes to get the database size.
• Adding in a factor (eg. 50) to allow for indexes
  and other overheads.

36
The Next Generation of Database Design

• Some applications still use network or
  heirarchical database technology - but their use
  is declining.
• Relational database technology (RDBMS) is widely
  used in contemporary information systems.
• Object database management systems (OODBMS) are
  emerging

37
Object database management systems

• Object database management systems store true
  objects, that is, encapsulated data and the
  processes for each object.
• Because relational database management systems
  are so widely used, this change will happen
  slowly.
• ODBMS are unproven in business applications
• Object technology is being biuilt into some
  relational DBMSs
• New object DBMSs have been developed to for the
  transition between relational and object models.
