SG Earthing Electrode: GI Earthing Electrode

1

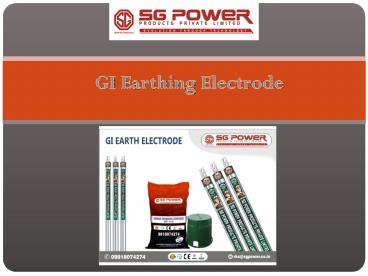

GI Earthing Electrode
2
About
GI Earthing Electrode helps to conduct fault
current safely to the bottom and protect people
from current shock thanks to lightning. In GI
earthing electrode, iron is ready by depositing a
movie of zinc over iron through the method called
galvanization. Consequently, the GI earthing
electrode is corrosion resistant. The offered
electrode is widely wont to protect people from
accidents caused by accumulation in
telecommunication towers, microwave antennas,
residential areas, and industrial areas.
3
Features of GI Earthing Electrode
1. The galvanization of iron makes it a
corrosion-resistant electrode. 2. The current
dissipation rate is high. 3. It is suitable for
all kinds of soil. 4. Periodical moisturization
is not necessary.
4
Adavantage of GI Earthing Electrode
Requires less maintenance. Lesser space is
required. On-site easy and fast
installation. Moisturization is less
necessary. Low impedance while grounding.
5
Models Electrode Length in mm Electrode Diameter in mm (Outer Pipe) Electrode Diameter in mm (Inner Pipe) Terminal Size (LxW) in mm Conductive Minerals Filled
SG250 2000 50 25 32x10 Yes
SG350 3000 50 25 32x10 Yes
SG280 2000 80 50 50x10 Yes
SG380 3000 80 50 50x10 Yes
6
Contact Us
Mr. R. K. SharmaMobile 91-9818074274Address
I-Thum, A-807, Tower A, Block A,Industrial Area,
Sector 62, Noida,Uttar PradeshIndia 201301
