Title: Example of modular design: ALU


1

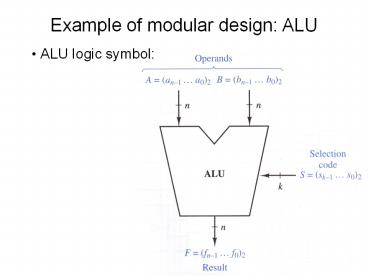

Example of modular design ALU
  • ALU logic symbol

2
ALU
  • Exercise construct an ALU to perform the
    operations in this function table

3
ALU
  • Subdivide ALU function or partition ALU into bit
    slices
  • A bit slice a module that can be replicated
    (arrayed) to generate a n-bit ALU

4
ALU
  • Further partition the bit slice into a Logic Unit
    and an Arithmetic Unit

5
ALU
  • Implement the logic unit module
  • Truth table
  • Simple multiplexer realization

6
ALU
  • K-map of the LU, and the minimized LU circuit

7
ALU
  • Implement the Arithmetic Unit
  • Block diagram of the AU slice

8
ALU
9
ALU

10
ALU
  • Complete 1-bit slice

11
Programmable logic devices
  • Goal place as much functionality on a single
    chip as possible
  • Increases speed
  • Reduces power consumption, size, weight
  • IC design methodologies can be classified
    according to the level of design effort expended
    in obtaining the chip
  • Can range from full custom to none
  • Each has its advantages and drawbacks

12
IC design methodologies
  • Full custom
  • Design every aspect of the chip gate
    placements, routing, etc.
  • Complete control over all circuit parameters
  • Slowest to design and manufacture
  • Semi-custom
  • Use some pre-designed components, design the rest
  • None
  • Uses pre-fabricated SSI or LSI chips, just
    interconnect on PCB

13
IC design methodologies
  • Semi-custom
  • Standard Cell libraries
  • Use pre-designed units, just place and
    interconnect
  • All processing steps need to be done (same as
    full custom)
  • Fabrication delay weeks or months
  • Pre-designed gate arrays
  • They are ICs containing unconnected gates
  • Only interconnection layer needs to be fabricated
  • Fabrication delay is days or weeks
  • PLDs
  • Gate arrays with flexible interconnections
    included
  • Fabrication delay is hours or days

14
Programmable logic devices
  • PLA circuits
  • Built around homogeneous arrays of elementary
    components that can be configured to perform
    logical AND and OR operations
  • We look at basic structures that can realize AND,
    OR functions (in reality PLAs are based on
    NAND/NOR functions in CMOS technology)
  • PLAs can belong to
  • Gate arrays, if interconnect layer is not
    finished
  • PLDs, if fuses are provided along with a full
    interconnect layer
  • FPGA are PLD
