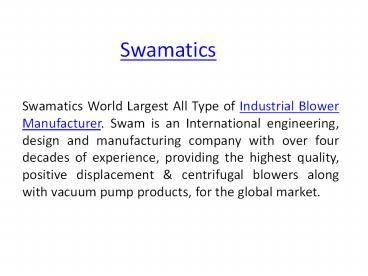

Swamatics
Swamatics World Largest All Type of Industrial
Blower Manufacturer. Swam is an International
engineering, design and manufacturing company
with over four decades of experience, providing
the highest quality, positive displacement
centrifugal blowers along with vacuum pump
products, for the global market.
2
Tri Lobe Roots Blowers
Swamtics, India's leading root blower
manufacturer introduces the new Tri lobe root
blowers. Tri-lobe technology means that the
blowers have the tips of the lobes exposed at 120
degrees around the rotor instead of 180 degrees
as in a Bi-lobe blower. This provides a stiffer
rotor assembly, which means less deflection under
any load. Best process gas blowers, these blowers
are designed with specific industry demands in
mind for continuous operation, rugged design,
reduced noise, reduced pulsation and vibration,
longer bearing life, and minimal maintenance.
These blowers are designed for continuous duty.
Full package units ship with all essential
accessories and electric motor, ready to install,
plug and play. Tri lobe rotary piston, A Swam
Tri-Lobe blower is supplied with integrated
safety and monitoring equipment, such as a safety
valve and pressure gauge. best process gas
blowers manufacturer in india
3
Swamtics, Tri-Lobe Blowers / Compressors are
positive displacement units, the pumping capacity
of which is determined by size, operating speed
and pressure conditions. best process gas
boosters, It employs two three-lobe impellers
mounted on parallel shafts, rotating in opposite
directions within a casing closed at the ends by
side plates. As the impellers rotate, air is
drawn into one side of the casing and blown out
the opposite side against existing pressures. Air
Blowers Manufacturer, The differential pressure
developed, therefore, depends on the resistance
of the connected system.
Blowers, being the positive displacement type, do
not develop pressure within the housing, but the
discharge pressure depends on the resistance /
back pressure of the system. Best Air Blowers
Manufacturer, Effective sealing of the compressor
inlet area from the discharge area is achieved
through the use of a very small operating space,
eliminating the need for internal lobe
lubrication. Pair of precision machined, hardened
and ground alloy steel timing gears maintains
clearances between impellers during rotation.
4
The air, thus delivered, is 100 OIL FREE. The
pumping capacity of a lobe compressor, operating
at constant speed, remains relatively independent
of variations in inlet and discharge pressure.
These blowers are constant volume machines,
delivering a fixed discharge against the back
pressure of the system. Therefore, it is
essential to ensure that minimal restrictions are
placed on the piping, inlet and discharge.
Properly sized pipes and large radius bends
ensure minimal line losses resulting in higher
efficiency and low energy consumption. A sudden
change in pipe cross section should also be
avoided. To change the capacity, it is necessary
to change the speed or vent some of the air to
the atmosphere. best process gas boosters
manufacturer in india
Air should not be recirculated from discharge to
suction as it may cause the triple lube fan to
overheat. Never attempt to control compressor
capacity by means of butterfly valves in the
inlet or discharge piping. Condenser exhausters,
This increases the power load on the engine and
can seriously damage the compressor. There is an
increase in the discharge air temperature due to
the heat of compression. vacuum pump
manufacturer.
5

• Features
• Anti-friction bearings
• Three-lobe rotor design, suitable for both
  pressure service and vacuum service
• Fail-safe labyrinth seal
• Splash-lubricated, hardened and ground alloy
  steel timing gears
• Improved volumetric efficiency and reduced
  operating temperatures
• Dynamically balanced rotor shaft assembly
• Low-noise, low-pulsation three-lobe blower
  construction

6

• Features
• Extended shaft design for cold operation
• Rigid one-piece IC housing and end plates
• Large inlet and outlet connections for minimal
  loss
• Hardened alloy steel shafts ground to close
  tolerances
• 100 oil-free air delivery, Turbo Blowers
• Superior product designed and guaranteed from the
  factory
• Standard Orientation - Right Angle Flow

7
Swams vision
Swam vision is to provide globally the
best-manufactured products. Its focus is on
meeting our customers requirements while being
competitive. Swam sees itself as being recognised
as a world leader, providing high-quality robust
products.
8
About Us
Swam continues to grow year on year. Our focus is
growth through - Integrity. High Quality.
Reliability. Innovation. World best practices.
Maintaining the highest international
standards. Swam is very proud of its history and
achievements, our constant desire to be the best
Company we can be. Swam Pneumatics, has
continued to grow. From its humble beginnings to
an international supplier of high quality
products. Part of its success is due to the
inherited nature to continually improve in every
aspect of its business.
9
Contact Us
Address C-2,SECTOR-3, NOIDA-201301,(U.P.)
INDIA. Phone 91-120 - 469 6222, 91-120 -
2527610, 2537282 Fax 91-120 - 244 3282 Email
sales_at_swamatics.com
