Basic of Parallel Programming and MPI Introduction

1

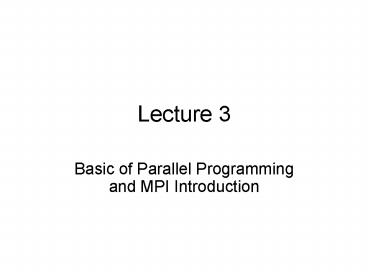

Lecture 3

• Basic of Parallel Programming and MPI Introduction

2
Parallel Programming

• The activity of constructing a parallel program
  from a given algorithm.
• Approaches
• Library Subroutine - P4, PVM, MPI
• New Constructs to handle parallelism Fortran90
• Compiler Directives or formatted comments are
  added to the language to mark the parallel block
  - HPF

3
What is a process?

• A process is an entity with 4 components P
  (P,C,D,S)
• P is a program or a piece of code that a process
  is associated with.
• C is a control state, defined by a set of control
  variables that indicate where to execute next.
• D is a data state, defined by a set of data
  variables that hold user data
• S is a process status ready, suspended,
  running, etc.

4
Process Status
5
Execution Mode

• A computer system has two modes, which are system
  mode and user mode.
• Kernel (important programs in OS) process are
  always execute in system mode.
• Processes created by user programs are in user
  mode unless such process requests services from
  kernel (I/O function, exception handles)

6
Address Space
A new address space is crate when a new process
is created.

• Hold the code of the processes, fixed size and
  not writable
• Hold states and dynamic data of the process,
• can grow and shrink
• 3. Hold activation records of the procedure calls
  made by
• a process, can grow and shrink
• 4. Hold process status and context

7
Context switching

• Context of a process is the part of a program
  that is stored in the processor register.
• When context switch occurs, the processs current
  context will be saved and the new one will be
  loaded.
• Actions such as keyboard interrupt, status
  changes of a process to suspended, will cause
  context switching.

8
Process Control

• Performs by a kernel using information in process
  descriptors.
• A kernel will check to ensure that a process only
  accesses the resource (Processor, memory, I/O) it
  suppose to.
• A Kernel will also act as a scheduler assigning
  resource to a process.

9
Resource Sharing

• Resource sharing, handling by the scheduler, can
  happen in several forms
• Dedicated mode not share, occupied from start
  to finish
• Batch mode user process once scheduled to run
  will run to completion
• Time-sharing mode multiple process are running
  simultaneously in an interleaved fashion
• Preemption mode a high priority process can take
  away processor from a lower priority process

10
Threads

• Creating a new process, hundreds of thousands of
  clock cycles will be wasted because a new address
  space has to be created.
• In some case, creating a heavy weight process is
  not suitable (When a process holds a large data
  set).
• To reduce the overhead, a light- weight process
  or thread is considered.
• Threads can exist sharing and address space
  within a process.
• Creating a thread is much faster because less
  memory allocation is required.

11
Single vs. Multiple Programs

• Single-program users can write one program that
  will be run on all nodes
• pid my-process-id()
• if (pid 1) A()
• else if (pid 2) B()
• else if (pid 3) C()
• Multiple-program users can write 3 executable
  programs A, B and C which are loaded to three
  nodes in a shell script
• run A on node 1
• run B on node 2
• run C on node 3

12
Static vs. Dynamic Parallelism

• Static A program that the number of processes
  can be predetermined at the compile time. This
  type of parallelism has less run time overhead
  and more efficient binary code.
• Dynamic A program that a process can be created
  during run-time and the number of processors to
  be created is unknown at the beginning. This
  type of parallelism is more flexible.

13
Fork/Join

• Process A
• begin
• Fork(B)
• X foo(z)
• Join(B) Output(xy)
• end

• Process B
• begin
• Y boo(z)
• end

• A is a parent process and B is a child process.

• When fork(B) is executed, A and B execute in
  parallel
• Join(B) forces A to wait until B terminates
  before executing
• the output.

14
Process Interaction

• Communication passes data among two or more
  processes (shared variables or message passing)
• Synchronization causes process to wait for one
  another.
• Aggregation merges partial results computed by
  the component process of a parallel program.

15
Synchronous vs. Asynchronous Interaction

• Suppose there are n processes execute a parallel
  program, where there is an interaction code C
• If code C cannot be executed until all n
  processes have reached C, then the
  Interaction is called Synchronous.
• If when a process reaches C, it can proceed to
  execute C without having to wait for others, then
  the interaction is Asynchronous.
• Ex. Synchronous send/receive process will not
  return from send/receive function until the
  message is both sent and received.

16
Blocking vs. Nonblocking Interaction

• Blocking if the process have to wait until a
  certain event happen.
• Ex. Blocking sent - a process can move on only
  after the message is sent out (not necessarily
  been received).
• Non-Blocking no wait time.
• Ex. Non-Blocking sent - a process can move to the
  next operation as soon as it has requested to
  send (not necessarily sent out).
• This non-blocking scheme implies that the send
  buffer can not yet be safely re-written.

17
Problems in Parallel Programming

• Lost Update Problem
• Temporary Update Problem
• Incorrect Summary Problem

18
Lost Update

• Process 1 Process 2
• Read(A)
• Read(A)
• A Am Read(B)
• Write(A) AAB
• Write(A)

19
Temporary Update

• When a process, P1, updates data and then fails
  for some reasons, another process, P2, accesses
  the updated data before the value is put back to
  the original state.

20
Incorrect Summary

• A process is aggregating values on a set of data,
  while another process updating some of these
  data. Inconsistency can occur
• Process1 Process2
• Data A, B, C in x
• Count the number of items in x
• Write(new item D in x)
• Read(x)
• Sum(x) // (ABCD)
• Ave sum/count

21
To solve the problems

• Divide a parallel program into a set of
  transactions.
• Each transaction must have the following
  properties
• Consistency
• Atomicity
• Durability
• Isolation
• Serializability

22
Concurrency Control

• Locking mechanism
• Timestamp
• Optimistic concurrency control (OCC)

23
Locking

• Data to be accessed is locked so that no other
  process can gain access to that data.
• When the process, which has the lock is through
  using that data, the data is unlocked.
• A lock can be defined using three variables Lock
  (L, C, I).
• L is a Boolean variable indicates lock/unlock
  state.
• C is a condition on which a process may wait on.
• I is an identifier on process which has the lock.


24
Timestamp

• Each access to shared data is stamped with time.

• During an attempt to access data, the current
  time will be compared with the timestamps of
  other processes on this data.
• If the timestamp associated with the process that
  request an access is less than the timestamp of
  other processes, the access will be denied.
• A request to write is granted if data was last
  read and written by older process.
• A read request is granted if the data was last
  written by older process.
• This scheme will introduce no deadlock.

25
OCC

• All processes can concurrently access data, but
  before any modification is committed, a check is
  made to see if any concurrent access takes place.
  If so, modification is rejected, the data will
  remain in the original state.
• OCC is based on the assumption that the
  likelihood of two processes accessing the same
  data is low.

26
Introduction to MPI
27
Message-passing Model
28
Processes

• Number is specified at start-up time
• Remains constant throughout execution of program
• All execute same program
• Each has unique ID number
• Alternately performs computations and communicates

29
Advantages of Message-passing Model

• Gives programmer ability to manage the memory
  hierarchy
• Portability to many architectures
• Provides a platform- and language- independent
  standard for message passing.
• Simplifies debugging

30
The Message Passing Interface

• Late 1980s vendors had unique libraries
• 1989 Parallel Virtual Machine (PVM) developed at
  Oak Ridge National Lab
• 1992 Work on MPI standard begun
• 1994 Version 1.0 of MPI standard
• 1997 Version 2.0 of MPI standard
• Today MPI is dominant message passing library
  standard

31
Include Files
include ltmpi.hgt

• MPI header file

include ltstdio.hgt
Standard I/O header file
32
Local Variables
int main (int argc, char argv) int i
int id / Process rank / int p / Number
of processes /

• Include argc and argv they are needed to
  initialize MPI
• One copy of every variable for each process
  running this program

33
Initialize MPI
MPI_Init (argc, argv)

• First MPI function called by each process
• Not necessarily first executable statement
• Allows system to do any necessary setup

34
Communicators

• Communicator opaque object that provides
  message-passing environment for processes
• MPI_COMM_WORLD
• Default communicator
• Includes all processes
• Possible to create new communicators
• Will do this later

35
Communicator
MPI_COMM_WORLD
0
5
2
1
4
3
36
Determine Number of Processes
MPI_Comm_size (MPI_COMM_WORLD, p)

• First argument is the communicator
• Number of processes returned through second
  argument

37
Determine Process Rank
MPI_Comm_rank (MPI_COMM_WORLD, id)

• First argument is the communicator
• Process rank (in range 0, 1, , p-1) returned
  through second argument

38
Replication of Automatic Variables
39
Shutting Down MPI
MPI_Finalize()

• Call after all other MPI library calls
• Allows system to free up MPI resources

40
Point-to-point Communication

• Involves a pair of processes
• One process sends a message
• Other process receives the message

41
Send/Receive Not Collective
42
Function MPI_Send
int MPI_Send ( void message,
int count, MPI_Datatype
datatype, int dest, int
tag, MPI_Comm comm )
43
Function MPI_Recv
int MPI_Recv ( void message,
int count, MPI_Datatype
datatype, int source, int
tag, MPI_Comm comm,
MPI_Status status )
44
Return from MPI_Send

• Function blocks until message buffer free
• Message buffer is free when
• Message copied to system buffer, or
• Message transmitted
• Typical scenario
• Message copied to system buffer
• Transmission overlaps computation

45
Return from MPI_Recv

• Function blocks until message in buffer
• If message never arrives, function never returns

46
Deadlock

• Deadlock process waiting for a condition that
  will never become true
• Easy to write send/receive code that deadlocks
• Two processes both receive before send
• Send tag doesnt match receive tag
• Process sends message to wrong destination process

47
Compiling MPI Programs
mpicc -O -o foo foo.c

• mpicc script to compile and link CMPI programs
• Flags same meaning as C compiler
• -O ?? optimize
• -o ltfilegt ? where to put executable

48
Running MPI Programs

• mpirun -help
• mpirun -np ltpgt ltexecgt ltarg1gt
• -np ltpgt ? number of processes
• ltexecgt ? executable
• ltarg1gt ? command-line arguments

49
Specifying Host Processors

• mpirun -p4pg ltpgfilegt ltexecgt ltarg1gt
• ltpgfilegt lists host processors in order of their
  use (put in in home directory)
• Exampe of a pgfile contents
• olab1 0 / home/ tiranee/ myprog
• olab2 1 / home/ tiranee/ myprog
• olab3 2 / home/ tiranee/ myprog
• olab1 1 / home/ tiranee/ myprog

50
Enabling Remote Logins

• MPI needs to be able to initiate processes on
  other processors without supplying a password
• Each processor in group must list all other
  processors in its .rhosts file e.g.,

51
Deciphering Output

• Output order only partially reflects order of
  output events inside parallel computer
• If process A prints two messages, first message
  will appear before second
• If process A calls printf before process B, there
  is no guarantee process As message will appear
  before process Bs message
• Try to put fflush() after every printf()

52
Lab 1

• Write a Hello World program where each process in
  the group sends a Hello world message to
  process 0 and process 0 print out all messages.
