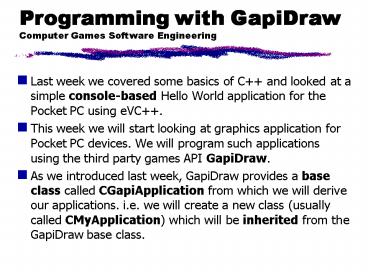

Programming with GapiDraw Computer Games Software Engineering

1
Programming with GapiDrawComputer Games Software
Engineering

• Last week we covered some basics of C and
  looked at a simple console-based Hello World
  application for the Pocket PC using eVC.
• This week we will start looking at graphics
  application for Pocket PC devices. We will
  program such applications using the third party
  games API GapiDraw.
• As we introduced last week, GapiDraw provides a
  base class called CGapiApplication from which we
  will derive our applications. i.e. we will create
  a new class (usually called CMyApplication) which
  will be inherited from the GapiDraw base class.

2
The games loopComputer Games Software Engineering
Start
Initialise

• Computer games (and any interactive graphics
  application) can be thought of as executing in
  one big loop (or a cyclic executive).
• Whilst in reality this is rarely the real model
  that is used anymore (modern OSs like Windows use
  message passing and events) we can still largely
  think of games operating in such a fashion.

Get User Input
Move Objects
Detect Collisions
Draw Objects
Exit?
n
y
Clean Up
3
CGapiApplicationComputer Games Software
Engineering

• CGapiApplication is simply a base class you can
  use to quickly create new games and applications.
• It has a number of public and protected member
  functions you are expected to make use of the
  public member functions (but never change them)
  and add your own code to the protected member
  functions (which sounds the wrong way around).
• The public member functions do critical (or
  system oriented) things such as starting the
  application running, setting up the graphics
  hardware and display mode.
• The protected member functions typically
  automatically run when certain things happen (the
  game starts/ends, user presses a key, the
  graphics are updated etc.)

4
Public Member FunctionsComputer Games Software
Engineering
5
Protected Member FunctionsComputer Games
Software Engineering
Ive skipped some here there are also functions
to read stylus (touch screen) activity. Each
returns a HRESULT (either S_OK or GD_OK).
6
CGapiApplication data members Computer Games
Software Engineering

• A subclass of CGapiApplication will have the
  following member variables-
• (1),(2) and (4) are examples of further object
  classes that are provided by GapiDraw. You should
  already have started reading the GapiDraw
  documentation.
• GapiDraw surfaces are of particular importance.

• m_pDisplay the primary surface of the
  application.
• m_config a copy of the GDAPPCONFIG structure
  passed to the constructor
• m_pInput a CGapiInput object used for all
  keyboard and stylus input.
• m_pTimer a CGapiTimer object used to sleep
  between each CGapiApplicationProcessNextFrame.

7
GapiDraw surfaces Computer Games Software
Engineering

• A GapiDraw surface object (a GCGapiSurface) is a
  memory area to which you can draw images and
  primitives (rectangles, lines, text and etc).
• Lots of the GCGapiSurface functionality is a
  direct implementation of MS Direct Draw (Direct
  X) commands.
• This is really what your graphics/games
  applications are all about writing graphical
  objects to the screen. Each movable object (e.g.
  character) you will create for your games will
  usually be based on a GCGapiSurface object.
• Additionally you have access to the main display
  surface (m_pDisplay) which is an object of type
  CGapiDisplay - a sub class of CGapiSurface which
  adds extra features such as surface flipping and
  back-buffer support.

8
The backbuffer double buffering Computer Games
Software Engineering

• In any computer graphics application it is
  unsafe to draw directly to the screen. Instead,
  graphics programmers usually create a back-buffer
  to which objects are written only when the
  drawing of all objects is complete is the
  contents of the back-buffer drawn to the physical
  display.
• The back-buffer can be thought as an offline
  canvas for your application. Before each frame is
  rendered you draw all your objects to this canvas
  then the GapiDraw application takes care of
  writing this to the real screen.
• This last process is called a flip.
• The back-buffer is accessible from your
  ProcessNextFrame member function in any sub-class
  of CGapiApplication.

9
CGapiApplicationCGapiApplicationComputer Games
Software Engineering

• The CGapiApplication constructor is used to
  create a new instance of a CGapiApplication
  CGapiApplication(const GDAPPCONFIG config)
• Creating a new CGapiApplication usually consists
  of the following steps-
• A GDAPPCONFIG structure sets lots of Windows
  related parameters (including what icon to use).

• Create a new GDAPPCONFIG structure and set the
  parameters you want.
• Create a CGapiApplication instance and supply the
  GDAPPCONFIG structure.
• Start the application with CGapiApplicationRun

10
The GapiDraw games loopComputer Games Software
Engineering

• When CGapiApplicationRun is called, the
  following steps are performed
• CGapiApplicationRun finishes when
  CGapiApplicationShutdown is called.

• The main window is created based on the options
  specified in the GDAPPCONFIG structure.
• The display is opened and the display mode is
  set.
• InitInstance is called in the subclass.
• CreateSysMemSurfaces is called in the subclass.
• CreateVidMemSurfaces is called in the subclass.
• The main games loop is started and
  ProcessNextFrame will be called in the subclass
  on each frame.

11
The end of an applicationComputer Games Software
Engineering

• When CGapiApplicationShutdown is called, the
  following steps are performed
• Finally the subclass destructor is called. It is
  sometime useful to wait here for a keyboard press
  so we can see any printf() statements that have
  been directed to a console window.

• CGapiApplicationExitInstance is called in the
  subclass.
• The GapiDraw display is closed.
• Any pending error messages set with
  CGapiApplicationSetErrorMessage is displayed.
• The main window is destroyed.

12
A typical applicationComputer Games Software
Engineering
include local_include_file.h int WinMain(..)
// standard Windows entry point // create a
config structure // create instance of a
CMyApplication using config // run the instance
of CMyApplication
CMyApplicationCMyApplication(const
GDAPPCONFIG config)
CGapiApplication(config) CMyApplicationCMy
Application() //char cgetchar() // used to
look at console output
13
A typical application (cont)Computer Games
Software Engineering
HRESULT CMyApplicationInitInstance() // runs
once at start // initialise variables, random
nos., sprites etc // start any background
sounds return S_OK HRESULT
CMyApplicationExitInstance() // runs once at
end // stop any background sounds return
S_OK HRESULT CMyApplicationCreateSurfaces(CG
apiDisplay display,
HINSTANCE hInstance) // create surfaces and
load bitmaps, PNGs etc
14
A typical application (cont)Computer Games
Software Engineering
HRESULT CMyApplicationProcessNextFrame
(CGapiSurface backbuffer, DWORD dwFlags)
// draw background // calculate new object
locations check for collisions // draw the
objects return S_OK HRESULT
CMyApplicationKeyDown(DWORD dwKey,GDKEYLIST
keylist) // do stuff if a key is
pressed HRESULT CMyApplicationMyNewMemberFucti
on() // do something you want to do
yourself return S_OK
15
A typical applicationComputer Games Software
Engineering

• This application defines (or implements) a new
  sub-class of the CGapiApplication called
  CMyApplication. It should be saved as a .cpp
  file. To go along with this there should also be
  a header file which defines this new subclass.
• As we discussed last week, the header file (.h)
  defines the interface to the class. Hence it must
  list all the member variables and functions that
  will be used by the class.
• The keyword virtual in the method definition in
  the header file on the next slide simply tells
  the compiler that the method can be over-ridden.
• When a base class pointer points to an instance
  of a derived class, the version of the virtual
  function in the derived class will be dynamically
  called at run-time.

16
A typical header fileComputer Games Software
Engineering
include "GapiApplication.h" class
CMyApplication public CGapiApplication public
CMyApplication(const GDAPPCONFIG config)
virtual CMyApplication() virtual HRESULT
InitInstance() virtual HRESULT
ExitInstance() virtual HRESULT
CreateSurfaces(CGapiDisplay display,
HINSTANCE hInstance)
virtual HRESULT ProcessNextFrame(CGapiSurface
backbuffer,
DWORD dwFlags) virtual HRESULT KeyDown(DWORD
dwKey, GDKEYLIST keylist) virtual HRESULT
CMyApplicationMyNewMemberFunction() protected
// member variables here
17
ProcessNextFrameComputer Games Software
Engineering

• The most important member function of the
  applications that you will derive from the
  CGapiApplication class is ProcessNextFrame.
• This function defines what happens at each frame
  update.
• In the second tutorial you will create an
  application that cycles through different colours
  (i.e. the colour is changed at each frame update)
  and fills the screen with a different colour when
  the frame is updated.
• You can set the target FPS value for your
  applications when you create the GDAPPCONFIG
  structure.
• The code for ProcessNextFrame and InitInstance
  for the colour cycling application is shown on
  the next slide.

18
Color pulsator code Computer Games Software
Engineering
19
Color pulsator header Computer Games Software
Engineering
20
Color pulsator explanationComputer Games
Software Engineering

• The application has three member variables
  (m_red, m_blue and m_green) each of which is a
  DWORD type.
• Your application uses these three variables to
  set the background screen colour as an RGB value
  (i.e. a mix of the three colours red, green and
  blue with each individual RGB value being a
  number in the range 0-255).
• All three variables are initialised in the
  InitInstance() member function which is run once
  at startup.
• The green and red variables are fixed whilst the
  blue variable is continuously cycled (in steps of
  5) throughout its complete range.
• The GapiDraw surface FillRect() function draws a
  rectangle of the required colour to the
  backbuffer.

21
DWORDS and other intsComputer Games Software
Engineering

• Using integers in C/C has always been a real
  pain.
• An int data-type in C/C can be 16-bit, 32-bit,
  or even 64-bit depending on the hardware
  platform/compiler that is being used. You can
  also have long and short ints !
• This leads to all sorts of potentially very nasty
  scenarios, and is a common cause for complaint
  about the languages.
• An int in Java is always stored as a 32-bit
  number. A DWORD in Visual C is also always
  32bits.
• Almost every integer example we will use for our
  GapiDraw games are DWORDS.
• Note that a WORD is a 16-bit integer.

22
StringsComputer Games Software Engineering

• One part of C that we will not cover is the
  Standard Template Library (or STL). The STL gives
  programmers nice ways of manipulating all sorts
  of high level data structures including
  strings. eVC does not support STL.
• Strings on their own are complicated because two
  different types of string are possible desktop
  PCs use 8-bit ASCII strings, whilst Pocket PCs
  use 16-bit or Unicode strings.
• Java also uses Unicode strings.
• This is not normally a problem except when you
  are cross compiling for different target
  platforms or (worse) when you writing
  collaborative networked games where one machine
  might be a PC and the other a PDA or one
  application is in Java the other in C!

23
More about StringsComputer Games Software
Engineering

• Microsoft has a data-type called a TCHAR which
  you can use to automatically create either an
  8-bit or a 16-bit string depending on the
  platform you are compiling for.
• Additionally, writing TEXT() around an actual
  string stores the string in the format specific
  to the platform.
• Since all our applications will run on the PDAs
  we will frequently use TCHARs and the TEXT()
  macro-

DWORD my_number 1 TCHAR str128 _stprintf(str
, TEXT(My_Number d"), my_number) backbuffer.D
rawText(1, 1, str, m_display.GetSystemFontB
order(), 0, NULL, 0, NULL)
24
Even more about StringsComputer Games Software
Engineering

• Frequently, as in the previous example, we would
  want to create a string from scratch that we want
  to write to the display. This string might
  typically display the contents of some variables.
• The function sprintf() is what we would normally
  use in C/C to do this kind of thing.
• However we will use the special MS macro
  _stprint() to do this as this always creates the
  correct format of string.
• Annoyingly MS have a myriad of other string types
  as well as (our favourite) TCHAR. These include
  LPSTR (a char), LPTSTR (a TCHAR), and LPCTSTR (a
  const TCHAR).
• LP is a historical throwback to 16bit Windows 3.1
  days and means Long Pointer.

25
Making things interestingComputer Games Software
Engineering

• At the end of Tutorial 2 you will be asked to
  modify the color pulsator so that it does
  something different.
• First, youll be asked to make all the colors
  (and not just blue) cycle through their values.
  To do this you will need to add two more member
  variables m_green_direction and m_red_direction
  and use them in the same way as the application
  currently uses the m_blue_direction variable
  (i.e. to check when the values should move up or
  down).
• Then, youll be asked to set the screen color to
  a random value at each frame update.
• Finally, youll be asked to fill the screen with
  a static background image.

26
Random numbers in CComputer Games Software
Engineering

• You will commonly need to use random numbers in
  your games. To do this we will use the C
  functions srand() and rand().
• At the start of any application that uses random
  numbers you should seed the random number
  generator using the srand() function otherwise
  your programs will always generate the same
  sequence of random numbers! E.g.-
• Then, in your program to generate a number, for
  instance between 0 and 7, use a line of form-

srand(GetTickCount())
new_direction (rand()(DWORD)8)/ RAND_MAX
27
Background imagesComputer Games Software
Engineering

• After the first few tutorials you will begin to
  create your own background images for your
  applications.
• These will typically be created in an external
  package (like PSP) and stored as an image file
  (JPG, GIF or PNG). When creating images remember
  that the screen size of the PDA is only 240x320
  pixels (and is 16bits deep).
• The GapiDraw library allows you to load images
  (as CGapiSurface objects) into your application
  before the games loop starts and then use those
  images in your game.
• You load any images in an overidden
  CreateSurfaces function which runs once at the
  start of an application.
• You can then draw your images (surfaces) to the
  back-buffer in the ProcessNextFrame function.

28
Extra ReadingComputer Games Software Engineering

• For this week you should make sure that you start
  browsing the online GapiDraw documentation.
• The documentation for all of the GapiDraw classes
  and their functions can be found in the GapiDraw
  directory on each PC i.e. at C\CO42032\GapiDraw\
  doc\index.html or linked to via an icon on the
  desktop.
• Also you can get it at http//www.dcs.napier.ac.uk
  /shaun/CO42032/doc/
• You should get used to accessing this
  documentation whenever you come across GapiDraw
  code that is new.
• The GapiDraw forum has lots and lots of tips and
  sample code from experienced (and not) GapiDraw
  developers. http//www.pocketmatrix.com/forums/vie
  wforum.php?f23
