Code Generation for Clustered VLIW processors

1

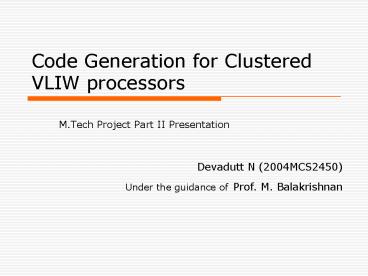

Code Generation for Clustered VLIW processors

• M.Tech Project Part II Presentation
• Devadutt N (2004MCS2450)
• Under the guidance of Prof. M. Balakrishnan

2
Agenda

• Introduction
• Previous approaches
• Proposed approach
• Results
• Implementation notes
• Conclusions and future work

3
Introduction to the problem

• Motivation for clustering
• Need for higher performance processors leads to
  increased number of Functional Units and larger
  number of registers to extract more ILP
• Increasing the number of ports (n) in RF leads to
  increase in Area (n3), Delay (n3/2), Power (n3)
• Complex by-pass network
• Increased clock period

4
Inter-cluster interconnects
Cluster 1
Cluster 3
MEM
INT
INT
R.A
W.A
Cluster 2
R.A
Example with 3 clusters
5
Previous approaches for Acyclic clustering

• Multi-phased or Unified with scheduling
• Unified Assign Schedule (Emre Ozer et.al), Cars
  (Krishnan Kailas et.al) are unified.
• PCC (Desoli), Cluster Assignment for Hi-Perf
  Embedded Processors (Lapinskii) are multi-phased,
  Region based hierarchical clustering (Chu)
• Hierarchical or Flat
• PCC (Desoli), Region based hierarchical
  clustering (Chu), Affinity based clustering for
  unrolled loops (Krishnamurthy) follow the
  hierarchical approach

6
Proposed approach to clustering

• 2 stage clustering
• Step 1 Preprocessing
• Pre-compute components consisting of nodes, which
  are close to each other. Generate k components,
  such that k gt c, where c is number of hardware
  clusters
• Motivation Utilize the graph structure, to
  prevent a completely greedy allocation of
  operations to clusters
• Step 2 Integrated clustering scheduling
• On the fly cluster binding being done along with
  scheduling
• Motivation Load balancing and better estimation
  of inter cluster transfer costs

7
Illustration of proposed approach
Cluster 1
Cluster 2
8
Step 1 Preprocessing Component creation

• Parameters considered, while creating components
• Criticality (Weight) of edges
• Slack distribution1
• Resource usage of the component
• Height of node
• Start with grouping nodes higher up
• Cycle formation between components
• Maximum path length of a component

1 Based on Chu et.al Region based Hierarchical
operation partitioning for multicluster
processors, PLDI 03
9
Preprocessing Component creation
Hardware configuration 2 clusters, each with 1
ARITH unit and 1 MEM unit
10
Preprocessing (2) Slack distribution
0
(10)
0
(10)
0
(10)
0
(10)
1
(8)
0
(10)
0
(10)
1
0
(10)
(1)
11
Preprocessing (3) Merging components
m5
m1
10
10
10
m2
10
10
m6
8
10
m4
1
1
10
m3
m7
12
Coarsening (4) Resource estimates
m3
m1
m2
m4
0
0
2
1
0.5
1
1
3
2
LD
LD
MPY
MPY
MPY
ADD
m6
m7
0.33
0
0.33
1
m5
1
2
0
2
3
LD
ADD
LD
13
Preprocessing (5) Merging components
Usage in Cycle 0 for Load unit exceeds 1
m5
m1
10
10
10
m2
10
10
m6
8
10
m4
1
10
m3
14
Preprocessing (6) Merging components
Usage in the 2 components do not interfere.
Merging them
m5
m1
10
10
10
m2
10
10
m6
8
10
m4
1
10
m3
15
Preprocessing (7) Merging components
Usage in the 2 components do not interfere.
Merging them
m1
m5
10
10
10
m2
10
10
m6
8
10
m4
1
10
Schedule
16
Preprocessing (8) Component graph
17
Integrated scheduling Component ordering

• 2 approaches

• No ordering in binding
• Bind each component, as late as possible.

• Prevent cycles during preprocessing.
• Bind in topological order

18
Preprocessing Restricting max. path length

• Needed only when cycle detection is being done
• With long chains, we get more number of incoming
  edges
• This causes, large components to be bound very
  late
• If we, restrict the height, then we may get
  better results
• Partially implemented, to be tested

19
Step 2 Integrated scheduling

• Inputs List of components
• Bind component and schedule operations in an
  interleaved fashion
• Bind component as late as possible
• When an operation is chosen for scheduling,
• Check if the containing component is bound, if
  not, bind it to a cluster, where the bind cost
  would be minimum
• bind cost is defined by
• Cycles lost due to inter-cluster moves
• Resource contention, due to overloading a cluster

20
Integrated scheduling Load estimation

• We estimate the loss of cycles, due to resource
  contention, by counting the number of operations
  in the cluster, which use a loaded resource
• A resource is considered loaded in a cycle, if
  the probability of it being in use is greater
  that a threshold pt
• This is done by maintaining the probability of a
  resource being used in every cycle in the cluster
  and updating it, as components are bound to the
  cluster

21
Load estimation (2)

• Let, the probability of a resource (r) being used
  in cycle (u) be represented by p(r,u)
• If, the range of cycles of a component (m) is (i,
  j), then resource contention rc(i, j) is defined
  as
• rc(i,j) Opset r i,j
• Opset r i,j is the set of operations Oa,bk,l,
  where k,l is the schedule range of O and a, b
  is the intersection of ranges k,l and i, j
  such that
• "u Î a,b (maxp(r,u) gt pt)

22
Load estimation (3)

• The set of operations, can be classified into 3
  categories as follows
• a) Bound and scheduled (bs)
• b) Bound and unscheduled (bu)
• c) Unbound (and unscheduled) (uu)
• The resource usage of the bs operations on each
  cycle is known accurately
• The resource usage of the bu operations is spread
  across its range of early_time, late_time on
  the bound cluster
• For the uu operations, we do not know the cluster
  binding.
• If, we can estimate the affinity of containing
  component of these operations to each cluster,
  then resource usage of a component (m) on cluster
  (c) is defined as
• Total_resource_usage rs(m,c)
• rsm,cbs rsm,cbu pb(m,c) rsm,cuu
• where pb is probability of mapping component m
  to cluster c

23
Integrated scheduling Intercommunication
estimation

• The intercommunication cost (ic) is defined as
  follows
• icm,c CriticalEdgeSetm,c
• A component edge
• ex,m Î CriticalEdgeSetm,c
• if, x is bound to a cluster (w)
• and w ¹ c
• and slack(e) lt lat(e) max. transfer cost

24
Integrated scheduling Total cost estimation

• Hence, the total cost of binding a component (m)
  to a cluster (c) is
• total_cost (m,c) a rc(m) b ic(m,c)
• As of now, in the implementation, we have set a
  b 1
• We bind component (m) to a cluster (c) such that,

• "c Î C, (total_cost(m,c)) is minimum
• where C is the set of clusters

25
Integrated scheduling - Illustration
Component Load (m1)

• At cycle 0

2
3
1
9
Ready List
Components Selected
m1
m2
m3
m4
Existing Cluster Load
IC Cost (C1) 0 IC Cost (C2) 0
M1 is bind to C1
26
Integrated scheduling Illustration (2)
Component Load (m1)

• Cycle 0 Contd.

3
1
9
Ready List
Components Selected
m2
m3
m4
Existing Cluster Load
After Binding Cluster Load
27
Integrated scheduling Illustration (3)
RC-tupler (i,j) is the resource contention tuple
for resource r between cycles i and j and is
equal to ltnew load , load before bindinggt
RC-tupler (0,1) values
IC Cost (C1) 0 IC Cost (C2) 1
Total_cost (C1) 4 Total_cost (C2) 3
M2 is bind to C2 and a move is inserted between 2
and 6
28
Post pass scheduling

• Spill code inserted during register allocation,
  these need to be bound to clusters.
• General structure of spill code
• We dont form components
• At schedule time, greedy
• decision taken to bind
• operation to cluster, wherein
• source/destination is present
• If no sources/destination are present, map to
  cluster with least load

29
Modified ELCOR compilation architecture
Reference Compilers Creating Custom Processors
(CCCP) group, University of Michigan
30
Implementation notes

• Machine description
• Operations classified as
• INT, MEM, FLOAT, BRANCH
• Cluster configuration
• Support configuration of number of number of
  operations of each type
• Interconnect configuration
• Support multiple buses, point to point
  interconnects, extended reads and extended writes
• Dedicated functional units for moving operands.
  Issues slots shared between moves and computation

31
Experimental setup

• We compare the results of the clustered VLIW with
  that of the unclustered VLIW (Pure VLIW), with
  same FU configuration
• Representation
• Pure VLIW PV_imf_issue
• Clustered Cl_clusters_imf_issue
• Configurations compared
• PV_222_4 vs Cl_2_111_4
• PV_444_4 vs Cl_4_111_4
• PV_444_8 vs Cl_4_222_8

32
Results (1)
33
Results (2)
34
Results for DCT
35
Conclusions and Future work

• Conclusions
• Have a approach which tries to balance between
  pre-pass and integrated clustering approaches
• Code generation flow complete. Code generated is
  simulated and functionally validated.
• Future work - Implementation
• Experiment on some more benchmarks
• Fine tune heuristics and constant values
• Current support for buses. Extend to support
  point to point interconnects. (support in MDES
  has been introduced)
