Title: CS551: Queue Management


1

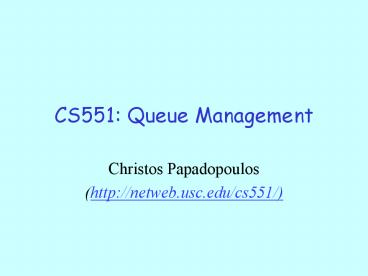

CS551 Queue Management
  • Christos Papadopoulos
  • (http//netweb.usc.edu/cs551/)

2
Congestion control vs. resource allocation
  • Networks key role is to allocate its
    transmission resources to users or applications
  • Two sides of the same coin
  • let network do resource allocation (e.g., VCs)
  • difficult to do allocation of distributed
    resources
  • can be wasteful of resources
  • let sources send as much data as they want
  • recover from congestion when it occurs
  • easier to implement, may lose packets

3
Connectionless Flows
  • How can a connectionless network allocate
    anything to a user?
  • It doesnt know about users or applications
  • Flow
  • a sequence of packets between same source -
    destination pair, following the same route
  • Flow is visible to routers - it is not a channel,
    which is an end-to-end abstraction
  • Routers may maintain soft-state for a flow
  • Flow can be implicitly defined or explicitly
    established (similar to VC)
  • Different from VC in that routing is not fixed

4
Taxonomy
  • Router-centric v.s. Host-centric
  • router-centric address problem from inside
    network - routers decide what to forward and what
    to drop
  • A variant not captured in the taxonomy adaptive
    routing!
  • host centric address problem at the edges -
    hosts observe network conditions and adjust
    behavior
  • not always a clear separation hosts and routers
    may collaborate, e.g., routers advise hosts

5
..Taxonomy..
  • Reservation-based v.s. Feedback-based
  • Reservations hosts ask for resources, network
    responds yes/no
  • implies router-centric allocation
  • Feedback hosts send with no reservation, adjust
    according to feedback
  • either router or host centric explicit (e.g.,
    ICMP source quench) or implicit (e.g., loss)
    feedback

6
..Taxonomy
  • Window-based v.s. Rate-based
  • Both tell sender how much data to transmit
  • Window TCP flow/congestion control
  • flow control advertised window
  • congestion control cwnd
  • Rate still an open area of research
  • may be logical choice for reservation-based system

7
Service Models
  • In practice, fewer than eight choices
  • Best-effort networks
  • Mostly host-centric, feedback, window based
  • TCP as an example
  • Networks with flexible Quality of Service
  • Router-centric, reservation, rate-based

8
Queuing Disciplines
  • Each router MUST implement some queuing
    discipline regardless of what the resource
    allocation mechanism is
  • Queuing allocates bandwidth, buffer space, and
    promptness
  • bandwidth which packets get transmitted
  • buffer space which packets get dropped
  • promptness when packets get transmitted

9
FIFO Queuing
  • FIFOfirst-in-first-out (or FCFS
    first-come-first-serve)
  • Arriving packets get dropped when queue is full
    regardless of flow or importance - implies
    drop-tail
  • Important distinction
  • FIFO scheduling discipline (which packet to
    serve next)
  • Drop-tail drop policy (which packet to drop next)

10
Dimensions
Scheduling
Single class
Per-connection state
Class-based queuing
FIFO
Drop position
Tail
Head
Random location
Early drop
Overflow drop
11
..FIFO
  • FIFO drop-tail is the simplest queuing
    algorithm
  • used widely in the Internet
  • Leaves responsibility of congestion control to
    edges (e.g., TCP)
  • FIFO lets large user get more data through but
    shares congestion with others
  • does not provide isolation between different
    flows
  • no policing

12
Fair Queuing
  • Demmers90

13
Fair Queuing
  • Main idea
  • maintain a separate queue for each flow currently
    flowing through router
  • router services queues in Round-Robin fashion
  • Changes interaction between packets from
    different flows
  • Provides isolation between flows
  • Ill-behaved flows cannot starve well-behaved
    flows
  • Allocates buffer space and bandwidth fairly

14
FQ Illustration
Flow 1
Flow 2
I/P
O/P
Flow n
Variation Weighted Fair Queuing (WFQ)
15
Some Issues
  • What constitutes a user?
  • Several granularities at which one can express
    flows
  • For now, assume at the granularity of
    source-destination pair, but this assumption is
    not critical
  • Packets are of different length
  • Source sending longer packets can still grab more
    than their share of resources
  • We really need bit-by-bit round-robin
  • Fair Queuing simulates bit-by-bit RR
  • not feasible to interleave bits!

16
Bit-by-bit RR
  • Router maintains local clock
  • Single flow suppose clock ticks when a bit is
    transmitted. For packet i
  • Pi length, Ai arrival time, Si begin transmit
    time, Fi finish transmit time. Fi SiPi
  • Fi max (Fi-1, Ai) Pi
  • Multiple flows clock ticks when a bit from all
    active flows is transmitted

17
Fair Queuing
  • While we cannot actually perform bit-by-bit
    interleaving, can compute (for each packet) Fi.
    Then, use Fi to schedule packets
  • Transmit earliest Fi first
  • Still not completely fair
  • But difference now bounded by the size of the
    largest packet
  • Compare with previous approach

18
Fair Queuing Example
Cannot preempt packet currently being transmitted
19
Delay Allocation
  • Aim give less delay to those using less than
    their fair share
  • Advance finish times for sources whose queues
    drain temporarily
  • Bi Pi max (Fi-1, Ai - d)
  • Schedule earliest Bi first

20
Allocate Promptness
  • Bi Pi max (Fi-1, Ai - d)
  • d gives added promptness
  • if Ai lt Fi-1, conversation is active and d does
    not affect it Fi Pi Fi-1
  • if Ai gt Fi-1, conversation is inactive and d
    determines how much history to take into account

21
Notes on FQ
  • FQ is a scheduling policy, not a drop policy
  • Still achieves statistical muxing - one flow can
    fill entire pipe if no contenders FQ is work
    conserving
  • WFQ is a possible variation need to learn about
    weights off line. Default is one bit per flow,
    but sending more bits is possible

22
More Notes on FQ
  • Router does not send explicit feedback to source
    - still needs e2e congestion control
  • FQ isolates ill-behaved users by forcing users to
    share overload with themselves
  • user flow, transport protocol, etc
  • Optimal behavior at source is to keep one packet
    in the queue
  • But, maintaining per flow state can be expensive
  • Flow aggregation is a possibility

23
Congestion Avoidance
  • TCPs approach is reactive
  • detect congestion after it happens
  • increase load trying to maximize utilization
    until loss occurs
  • TCP has a congestion avoidance phase, but thats
    different from what were talking about here
  • Alternatively, we can be proactive
  • we can try to predict congestion and reduce rate
    before loss occurs
  • this is called congestion avoidance

24
Router Congestion Notification
  • Routers well-positioned to detect congestion
  • Router has unified view of queuing behavior
  • Routers can distinguish between propagation and
    persistent queuing delays
  • Routers can decide on transient congestion, based
    on workload
  • Hosts themselves are limited in their ability to
    infer these from perceived behavior

25
Router Mechanisms
  • Congestion notification
  • the DEC-bit scheme
  • explicit congestion feedback to the source
  • Random Early Detection (RED)
  • implicit congestion feedback to the source
  • well suited for TCP

26
Design Choices for Feedback
  • What kind of feedback
  • Separate packets (source quench)
  • Mark packets, receiver propagates marks in ACKs
  • When to generate feedback
  • Based on router utilization
  • You can be near 100 utilization without seeing a
    throughput degradation
  • Queue lengths
  • But what queue lengths (instantaneous, average)?

27
A Binary Feedback Scheme for Congestion Control
in Computer Networks (DEC-bit)
  • Ramakrishnan90

28
The Dec-bit Scheme
29
The Dec-bit Scheme
  • Basic ideas
  • on congestion, router sets a bit (CI) bit on
    packet
  • receiver relays bit to sender in acknowledgements
  • sender uses feedback to adjust sending rate
  • Key design questions
  • Router Feedback policy (how and when does a
    router generate feedback)
  • Source Signal filtering (how does the sender
    respond?)

30
Why Queue Lengths?
  • It is desirable to implement FIFO
  • Fast implementations possible
  • Shares delay among connections
  • Gives low delay during bursts
  • FIFO queue length is then a natural choice for
    detecting the onset of congestion

31
The Use of Hysteresis
  • If we use queue lengths, at what queue lengths
    should we generate feedback?
  • Threshold or hysteresis?
  • Surprisingly, simulations showed that if you want
    to increase power
  • Use no hysteresis
  • Use average queue length threshold of 1
  • Maximizes power function

Power throughput/delay
32
Computing Average Queue Lengths
  • Possibilities
  • Instantaneous
  • Premature, unfair
  • Averaged over a fixed time window, or exponential
    average
  • Can be unfair if time window different from
    round-trip time
  • Solution
  • Adaptive queue length estimation busy/idle
    cycles
  • But need to account for long current busy periods

33
Sender Behavior
  • How often should the source change window?
  • In response to what received information should
    it change its window?
  • By how much should the source change its window?
  • We already know the answer to this AIMD
  • DEC-bit scheme uses a multiplicative factor of
    0.875

34
How Often to Change Window?
  • Not on every ACK received
  • Window size would oscillate dramatically because
    it takes time for a window changes effects to be
    felt
  • If window changes to W, it takes (W1) packets
    for feedback about that window to be received
  • Correct policy wait for (WW) acks
  • Where W is window size before update and W is
    size after update

35
Using Received Information
  • Use the CI bits from W acks in order to decide
    whether congestion still persists
  • Clearly, if some fraction of bits are set, then
    congestion exists
  • What fraction?
  • Depends on the policy to set the threshold
  • When queue size threshold is 1, cutoff fraction
    should be 0.5
  • This has the nice property that the resulting
    power is relatively insensitive to this choice

36
Changing the Senders Window
  • Sender policy
  • monitor packets within a window
  • make change if more than 50 of packets had CI
    set
  • if lt 50 had CI set, then increase window by 1
  • else new window window 0.875
  • additive increase, multiplicative decrease for
    stability

37
Dec-bit Evaluation
  • Relatively easy to implement
  • No per-connection state
  • Stable
  • Assumes cooperative sources
  • Conservative window increase policy
  • Some analytical intuition to guide design
  • Most design parameters determined by extensive
    simulation

38
Random Early Detection (RED)
  • Floyd93

39
Random Early Detection (RED)
  • Motivation
  • high bandwidth-delay flows have large queues to
    accommodate transient congestion
  • TCP detects congestion from loss - after queues
    have built up and increase delay
  • Aim
  • keep throughput high and delay low
  • accommodate bursts

40
Why Active Queue Management? (Rfc2309)
  • Lock-out problem
  • drop-tail allows a few flows to monopolize the
    queue space, locking out other flows (due to
    synchronization)
  • Full queues problem
  • drop tail maintains full or nearly-full queues
    during congestion but queue limits should
    reflect the size of bursts we want to absorb, not
    steady-state queuing

41
Other Options
  • Random drop
  • packet arriving when queue is full causes some
    random packet to be dropped
  • Drop front
  • on full queue, drop packet at head of queue
  • Random drop and drop front solve the lock-out
    problem but not the full-queues problem

42
Solving the Full Queues Problem
  • Drop packets before queue becomes full (early
    drop)
  • Intuition notify senders of incipient congestion
  • example early random drop (ERD)
  • if qlen gt drop level, drop each new packet with
    fixed probability p
  • does not control misbehaving users

43
Differences With Dec-bit
  • Random marking/dropping of packets
  • Exponentially weighted queue lengths
  • Senders react to single packet
  • Rationale
  • Exponential weighting better for high bandwidth
    connections
  • No bias when weighting interval different from
    round-trip time, since packets are marked
    randomly
  • Random marking avoids bias against bursty traffic

44
RED Goals
  • Detect incipient congestion, allow bursts
  • Keep power (throughput/delay) high
  • keep average queue size low
  • assume hosts respond to lost packets
  • Avoid window synchronization
  • randomly mark packets
  • Avoid bias against bursty traffic
  • Some protection against ill-behaved users

45
RED Operation
Min thresh
Max thresh
Average queue length
P(drop)
1.0
MaxP
Avg length
minthresh
maxthresh
46
Queue Estimation
  • Standard EWMA avg - (1-wq) avg wqqlen
  • Upper bound on wq depends on minth
  • want to set wq to allow a certain burst size
  • Lower bound on wq to detect congestion relatively
    quickly

47
Thresholds
  • minth determined by the utilization requirement
  • Needs to be high for fairly bursty traffic
  • maxth set to twice minth
  • Rule of thumb
  • Difference must be larger than queue size
    increase in one RTT
  • Bandwidth dependence

48
Packet Marking
  • Marking probability based on queue length
  • Pb maxp(avg - minth) / (maxth - minth)
  • Just marking based on Pb can lead to clustered
    marking -gt global synchronization
  • Better to bias Pb by history of unmarked packets
  • Pb Pb/(1 - countPb)

49
RED Algorithm
50
RED Variants
  • FRED Fair Random Early Drop (Sigcomm, 1997)
  • maintain per flow state only for active flows
    (ones having packets in the buffer)
  • CHOKe (choose and keep/kill) (Infocom 2000)
  • compare new packet with random pkt in queue
  • if from same flow, drop both
  • if not, use RED to decide fate of new packet

51
Extending RED for Flow Isolation
  • Problem what to do with non-cooperative flows?
  • Fair queuing achieves isolation using per-flow
    state - expensive at backbone routers
  • Pricing can have a similar effect
  • But needs much infrastructure to be developed
  • How can we isolate unresponsive flows without
    per-flow state?

52
Red Penalty Box
  • With RED, monitor history for packet drops,
    identify flows that use disproportionate
    bandwidth
  • Isolate and punish those flows

53
Flows That Must Be Regulated
  • Unresponsive
  • fail to reduce load in response to increased loss
  • Not TCP friendly
  • long-term usage exceeds that of TCP under same
    conditions
  • Using disproportionate bandwidth
  • use disproportionately more bandwidth than other
    flows during congestion
  • Assumptions
  • We can monitor a flows arrival rate

54
Identifying Flows to Regulate
  • Not TCP friendly use TCP model
  • TCP tput (1.5sqrt(0.66B)) / (RTTsqrt(p))
  • B packet size in bytes, p packet drop rate
  • Better approximation in Padhye et al. paper
  • Problems
  • Needs bounds on packet sizes and RTTs
  • Unresponsive
  • if drop rate increases by x then arrival rate
    should decrease by a factor of sqrt(x)

55
..Flows to Regulate
  • Flows using disproportionate bandwidth
  • assume additive increase, multiplicative decrease
    only flows
  • assume cwin W at loss
  • can be shown that loss prob lt 8/(3W2)
  • for segment size B
  • tput lt 0.75WB/RTT
Write a Comment
User Comments (0)
About PowerShow.com
