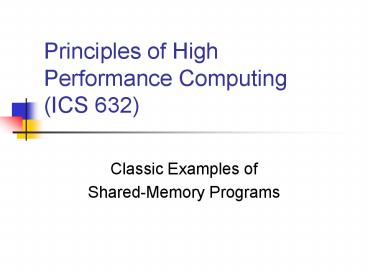

Principles of High Performance Computing (ICS
632)

• Classic Examples of
• Shared-Memory Programs

2
Domain Decomposition

• Now that we know how to create and manage
  threads, we need to decide which thread does what
• This is really the art of parallel computing
• Fortunately, in shared memory, it is often quite
  simple
• Well look at three examples
• Embarrassingly parallel application
• load-balancing issue
• Non-embarrassingly parallel application
• thread synchronization issue
• Shark Fish simulation
• load-balancing AND thread synchronization issue

3
Embarrassingly Parallel

• Embarrassingly parallel applications
• Consists of a set of elementary computations
• These computations can be done in any order
• They are said to be independent
• Sometimes referred to as pleasantly parallel
• Trivial Example Compute all values of a function
  of two variables over a 2-D domain
• function f(x,y) ltrequires many flopsgt
• domain (0,10,0,10)
• domain resolution 0.001
• number of points (10 / 0.001)2 108
• number of processors and of threads 4
• each thread performs 25x106 function evaluations
• No need for critical sections
• No shared output

4
Mandelbrot Set

• In many cases, the cost of computing f varies
  with it input
• Example Mandelbrot
• For each complex number c
• Define the series
• Z0 0
• Zn1 Zn2 c
• If the series converges, put a black dot at
  point c
• i.e., if it hasnt diverged after many iterations
• If one partitions the domain in 4 squares among 4
  threads, some of the threads will have much more
  work to do than others

5
Mandelbrot and Load Balancing

• The problem with partitioning the domain into 4
  identical tiles is that it leads to load
  imbalance
• i.e., suboptimal use of the hardware resources
• Solution
• do not partition the domain in as many tiles as
  threads
• instead use many more tiles than threads
• Then have each thread operate as follows
• compute a tile
• when done request another tile
• until there are no tiles left to compute
• This is called a master-worker execution
• confusing terminology that will make more sense
  when we do distributed memory programming

6
Mandelbrot implementation

• Conceptually very simple, but how do we write
  code to do it?
• Pthreads
• Use some shared (protected) counter that keeps
  track of the next tile
• the keeping track can be easy or difficult
  depending of the shape of the tiles
• Threads read and update the counter each time
• When the counter goes over some predefined value
  terminate
• OpenMP
• Could be done in the same way
• But OpenMP provides tons of convenient ways to do
  parallel loops
• including dynamic scheduling strategies, which
  do exactly what we need!
• Just write the code as a loop over the tiles
• Add the proper pragma
• And youre done

7
Dependent Computations

• In many applications, things are not so simple
  elementary computations may not be independent
• otherwise parallel computing would be pretty easy
• A common example
• Consider a (1-D, 2-D, ...) domain that consists
  of cells
• Each cell holds some state, for example
• temperature, pressure, humidity, wind velocity
• RGB color value
• The application consists of rule(s) that must be
  applied to update the cell states
• possibly over-and-over in an iterative fashion
• CFD, game of life, image processing, etc.
• Such applications are often termed Stencil
  Applications
• We have already talked about one example Heat
  Transfer

8
Dependent Computations

• Really simple
• Cell values one floating point number
• Program written with two arrays
• f_old
• f_new
• One simple loop f_newi f_oldi ...
• In more real cases, the domain in 2-D (or
  worse), there are more terms, and the values on
  the right hand side can be at time step m1 as
  well
• Example from http//ocw.mit.edu/NR/rdonlyres/Nucl
  ear-Engineering/22-00JIntroduction-to-Modeling-and
  -SimulationSpring2002/55114EA2-9B81-4FD8-90D5-5F64
  F21D23D0/0/lecture_16.pdf

9
Stencil Applications

• More generally, a stencil application is defined
  by
• A shape for the stencil, which defines which
  neighboring cells are used to update a cell
• with modified shaped for the edges of the domain
• For each neighboring cell in the stencil, the
  iteration (i.e., time step) of the value that
  should be used to compute the cell value at time
  step t1
• t1, t, t-1, t-2, etc.

2-D domain
Example stencil shapes
t1
t1
t
t
t
10
Stencil Example
t1
t1
t
t
t
11
Stencil applications
0
t1
t1
t
t
t
12
Stencil applications
0
1
t1
1
t1
t
t
t
13
Stencil applications
0
1
2
t1
1
2
t1
t
t
2
t
14
Stencil applications
0
1
2
3
t1
1
2
3
t1
t
t
2
3
t
3
15
Stencil applications
0
1
2
3
4
5
6
t1
1
2
3
4
5
6
7
t1
t
t
2
3
4
5
6
7
8
t
3
4
5
6
7
8
9
4
5
6
7
8
9
10
Called a wavefront computation
5
6
7
8
9
10
11
6
7
8
9
10
11
12
16
Wavefront computation

• How can we parallelize a wavefront computation?
• We have seen that the computation consists in
  computing 2n-2 antidiagonals, in sequence.
• Computations within each antidiagonal are
  independent, and can be done in a multithreaded
  fashion
• One possible Algorithm
• for each antidiagonal
• use multiple threads to compute its elements
• one may need to use a variable number of threads
  because some diagonals are very small, while some
  can be large
• can be implemented with a single array

17
Wavefront computation

• What about cache efficiency?
• After all, reading only one element from an anti
  diagonal at a time is probably not good
• They are not contiguous in memory!
• Solution blocking
• Just like matrix multiply

18
Wavefront computation

• What about cache efficiency?
• After all, reading only one element from a
  diagonal at a time is probably not good
• Solution blocking
• Just like matrix multiply

T0
19
Wavefront computation

• What about cache efficiency?
• After all, reading only one element from a
  diagonal at a time is probably not good
• Solution blocking
• Just like matrix multiply

T0
T1
20
Wavefront computation

• What about cache efficiency?
• After all, reading only one element from a
  diagonal at a time is probably not good
• Solution blocking
• Just like matrix multiply

T0
T1
T0
21
Wavefront computation

• What about cache efficiency?
• After all, reading only one element from a
  diagonal at a time is probably not good
• Solution blocking
• Just like matrix multiply

T0
T1
T0
T1
22
Performance Modeling

• One thing well do often in this class is
  building performance models
• Given simple assumptions regarding the underlying
  architecture
• e.g., ignore cache effects
• Come up with an analytical formula for the
  parallel speed-up
• Lets try it on this simple application
• Let N be the (square) matrix size
• Let p be the number of threads/cores, which is
  fixed

23
Performance Modeling

• What if we use p2 blocks?
• We assume that p divides N (N gt p)
• Then the computation proceeds in 2p-1 phases
• each phase lasts as long as the time to compute
  one block (because of concurrency), Tb
• Therefore
• Parallel time (2p-1) Tb
• Sequential time p2 Tb
• Parallel speedup p2 / (2p - 1)
• Parallel efficiency p / (2p -1)
• Example
• p2, speedup 4/3, efficiency 66
• p4, speedup 16/7, efficiency 57
• p8, speedup 64/17, efficiency 53
• Asymptotically efficiency 50

24
Performance Modeling

• What if we use (bxp)2 blocks?
• b some integer between 1 and N/p
• We assume that p divides N (N gt p)
• But performance modeling becomes more complicated
• The computation still proceeds in 2bp-1 phases
• But a thread can have more than one block to
  compute during a phase!
• During phase i, there are
• i blocks to compute for i1,..,bp
• 2bp-i blocks to compute for ibp1,...,2bp-1
• If there are x (gt0) blocks to compute in a phase,
  then the execution time for that phase is
  ?(x-1)/p? 1)
• Assuming Tb 1
• Therefore, the parallel execution time is

25
Performance Modeling
26
Performance Modeling

• Example Speedup for p 4

27
Performance Modeling

• When b gets larger, speedup increases and tends
  to p
• Since b lt N/p, best speed-up Np / (N p -1)
• When N is large compared to p, speedup is very
  close to p
• Therefore, use a block size of 1, meaning no
  blocking!
• Were back to were we started because our
  performance model ignores cache effects!
• Trade-off
• From a parallel efficiency perspective small
  block size
• From a cache efficiency perspective big block
  size
• Possible rule of thumb use the biggest block
  size that fits in the L1 cache (L2 cache?)
• Lesson full performance modeling is difficult
• We could add the cache behavior, but think of a
  dual-core machine with shared L2 cache, etc.
• In practice do performance modeling for
  asymptotic behaviors, and then do experiments to
  find out what works best

28
Another Possible Algorithm

• The Dojo cleaning algorithm

29
Another Possible Algorithm

• The Dojo cleaning algorithm

30
Another Possible Algorithm

• The Dojo cleaning algorithm

31
Another Possible Algorithm

• The Dojo cleaning algorithm

32
Another Possible Algorithm

• The Dojo cleaning algorithm

33
Performance Modeling

• What if we use (bxp)2 blocks?
• b some integer between 1 and N/p
• We assume that p divides N (N gt p)
• Each processor computes b2p2/p b2p blocks
• The last processor starts computing after p-1
  steps
• So the last processor finishes computing after
  p-1b2p steps
• We obtain
• Tb,p b2p p - 1
• Sb,p b2p2 / (b2p p -1)
• Eb,p b2p / (b2p p -1)
• The algorithm is therefore asymptotically
  optimal, like the previous one
• And its much easier to analyze
• But perhaps not much easier to implement
• Question is it better???

34
Performance Modeling
Speedup for p4
Conclusion the simpler algorithm is likely
better in practice!
35
Sharks and Fish

• Simulation of a population of preys and predators
• Each entity follows some behavior
• Preys move and breed
• Predators move, hunt, and breed
• Given initial populations, nature of the entity
  behaviors (e.g., probability of breeding,
  probability of successful hunting), what do
  populations look like after some time?
• This is something computational ecologists do all
  the time to study ecosystems

36
Sharks and Fish

• There are several possibilities to implement such
  a simulation
• A simple one is to do something that looks like
  the game of life
• A 2-D domain, with NxN cells (each cell can be
  described by many environmental parameters)
• Each cell in the domain can hold a shark or a
  fish
• The simulation is iterative
• There are several rules for movement, breeding,
  preying
• Why do it in parallel?
• Many entities
• Entity interactions may be complex
• How can one write this in parallel with threads
  and shared memory?

37
Space partitioning

• One solution is to divide the 2-D domain between
  threads
• Each thread deals with the entities in its domain

38
Space partitioning

• One solution is the divide the 2-D domain between
  threads
• Each thread deals with the entities in its domain

4 threads
39
Move conflict?

• Threads can make decisions that will lead to
  conflicts!

40
Move conflict?

• Threads can make decisions that will lead to
  conflicts!

41
Dealing with conflicts

• Concept of shadow cells

Only entities in the red regions may cause a
conflict

• One possible implementation
• Each thread deals with its green region
• Thread 1 deals with its red region
• Thread 2 deals with its red region
• Thread 3 deals with its red region
• Thread 4 deals with its red region
• Repeat
• Will still prevent some types of moves
• No swapping of location
• The implementer must make choices

42
Load Balancing

• What if all the fish end up in the same region?
• because they move
• because they breed
• Then one thread has much more work to do that the
  others
• Solution dynamic repartitioning
• Modify the partitioning so that the load is
  balanced
• But perhaps one good idea would be to not do
  domain partitioning at all!
• How about doing entity partitioning
• Better load balancing, but more difficult to deal
  with conflicts
• May use locks, but high overhead

43
Conclusion

• Main lessons
• There are many classes of applications, with many
  domain partitioning schemes
• Performance modeling is fun but inherently
  limited
• Its all about trade-offs
• overhead - load balancing
• parallelism - cache usage
• etc.
• Remember, this is the easy side of parallel
  computing
• Things will become more complex in distributed
  memory programming
