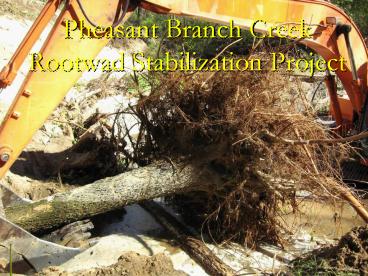

Pheasant Branch Creek Rootwad Stabilization Project

1
Pheasant Branch Creek Rootwad Stabilization
Project
2
Pre-Project View Downstream
3
Pre-Project View Upstream
4
Design Parameters

• Economic Cost per LF comparable to stone.
• Ecological
• Addresses key habitat impairments.
• Local materials
• Structural Withstand Bankfull or Higher Flow
  Events
• Hydraulic Promote sedimentation and scour where
  desired
• Construction Considerations for training and
  equipment.
• Adapted from Shields, Morin, and Cooper. 2004.
  Large Woody Debris Structures for Sand Bed
  Channels. Journal of Hydraulic Engineering. Pg.
  209.

5
(No Transcript)
6
(No Transcript)
7
Rootwad w/ 5x7 notebook
8
Rootwad Install
9
Rootwad Install
10
Slope Grading/Native Seeding/Stabilization
11
Post Project Floodplain and Slopes Cleared of
Buckthorn (Rhamnus cathartica)
12
Early October 2007 Post Construction
May 2007
Late October 2007 1st Bankfull Event
January 2008
13
Project Accomplishments

• Stabilization of 75 LF of severely eroded
  streambank.
• Aquatic habitat enhancement through use of woody
  debris.
• Riparian enhancement through clearing of 1 Ac of
  common buckthorn and re-planting/seeding of
  native species.
