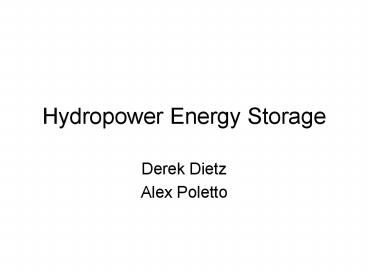

Hydropower Energy Storage

1
Hydropower Energy Storage

• Derek Dietz
• Alex Poletto

2
Design

• Our design is to pump water from Lake Placida to
  the top of the Esbenshade Physics Workshop Room.
• We plan to do this by using PVC pipe to pump
  water up the side of Esbenshade to the roof,
  where it is to be stored in a pool.
• The water will be pushed up using a pump, and
  will run back down to the lake when needed
  through a turbine.

3
Design

• The pipe running from Lake Placida to the roof
  will be covered by a makeshift speed bump, so
  that it does not impede traffic for Leffler
  Chapel.
• The pipe will be braced to the windows of
  Esbenshade for the preliminary testing with
  suction cups.

4
Drawing
5
Design

• Conventional pumps can be used as substitutes
  for hydraulic turbines. When the action of a pump
  is reversed, it operates like a turbine.
  (http//www.eere.energy.gov/consumerinfo/factsheet
  s/hydropower.html)
• The U.S. Department of Energy Energy
  Efficiency and Renewable Energy

6
Design

• We believe our design will work because by our
  calculations, our energy retention will be about
  65 of the energy gained from the solar panel.

7
Calculations
8
Cost

• Pumps
• Pump 156 waterpumpsupply.com
• Turbine 98 waterpumpsupply.com
• Pool
• Pool 90 Lowes Hardware
• Miscellaneous
• Total 56 Lowes Hardware and 3M
• Total Cost 399

9
Pump

• Connections 1-1/2 PVC slip-fit unions connectors
  included.
• Elec. 115 volts, 1 phase, 60 Hz, 1 HP, 2 speed,
  11.0/2.0 amps. ODP motor.
• http//store.waterpumpsupply.com/60gpmsuddis1.html


10
Turbine

• Inlet outlet Dual threaded. 3/4 male hose
  thread outside and 3/8" female national pipe
  thread inside.
• Elec. 12 volts DC , 1/10 HP
• http//store.waterpumpsupply.com/littlegiant.html
