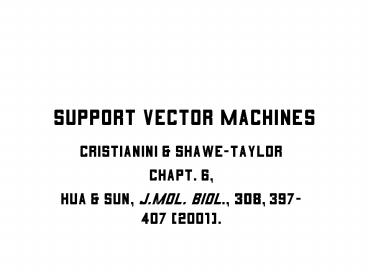

Support Vector Machines

• Cristianini Shawe-Taylor
• Chapt. 6,
• Hua Sun, J.Mol. Biol., 308, 397-407 (2001).

2
Overview

• So far we have learned about
• Learning machines, especially linear machines
  that classify points by separating them into
  categories using hyperplanes
• Attribute space vs. Feature space
• How to embed attribute vectors into a
  high-dimensional feature space how to do this
  implicitly using kernels
• How to measure the performance of a learning
  machine, using measures based on the margin
• How to optimize functions in the presence of
  constraints

3
Putting it together

• A support vector machine
• Maps attribute vectors into a high-dimensional
  feature space (implicitly) using a kernel
• Given a training set, finds a hyperplane to
  categorize the data, by optimizing the
  performance of the resulting learning machine
• Uses an algorithm that automically focusses on
  those training points most critical to
  positioning the hyperplane these are the support
  vectors.

4
The Maximal Margin Approach

• Given a training set, generate a separating
  hyperplane with maximal margin with respect to
  the data.
• The data is implicitly embedded in a
  high-dimensional feature space using a kernel
• Data must be separable not practical for many
  real-world problems (even in high dimensions),
  because of noise.

5
The target function
The separating plane
The functional margin
is affected by the scale factor lambda the
position of the plane is not.
6
How to set the weight vector

• The geometric margin measures how far the
  training points are from the plane it is the
  margin computed when the weight vector has unit
  length.
• It is easy to see that the geometric margin is
  maximized if the size of the un-normalized weight
  vector is made as small as possible.
• To see this, suppose that the functional margin
  is 1

7
The maximal margin optimization problem
Given a separable training set
Find the hyperplane (w,b) that solves the
optimization problem
8
The Lagrangian
Conditions
9
Leads to
Substituting
10
A quadratic optimization problem
Find vector of alphas that maximizes
subject to
This solves for the optimal hyperplane
This comes from the dual formulation of the
optimization problem
11
Observations

• The weight vector is expressed as a linear
  combination of the training example, just as in
  the case of the perceptron
• Consider the inequality constraint the optimal
  alphas are non-zero only for those training
  points that bump into the constraint these
  have minimum distance to the hyperplane. They are
  support vectors.

12

• The target function can be expressed in terms of
  the dual variables
• Also, we can compute the margin

13
Using a Kernel
Find vector of alphas that maximizes
subject to
14
Look at Figure 6.2
15
Soft Margins

• Real-life data is noisy even if there is an
  underlying distribution that can be used to
  classify the data, the presence of random noise
  means that some points near the separating
  hyperplane may cross over and spoil the
  classification the presence of noise may make
  the data inseparable, even in high dimensions.
• The solution is to introduce margin slack
  variables which allow the margin to be violated
  at individual training points.

16
Using slack variables
17
Observations

• The two versions of the optimization problem
  correspond to two different norms on the slack
  variables, and two different Lagrangians.
• The parameter C is adjustable, and is varied
  while the performance of the machine is assessed.
  C effectively imposes an additional constraint on
  the size of the alpha inequality multipliers it
  affects the accuracy of the model and how well it
  regularizes.It can be adjusted to limit the
  influence of outliers.

18
Hua SunJ.Mol. Biol., 308, 397-407
(2001).Project 3
19
Protein Secondary Structure Prediction

• Classic problem in computational biology first
  successful algorithm due to Chou Fasman in the
  70s.
• Contemporary methods use neural networks hidden
  Markov models
• Despite the sophistication of current approaches,
  there appear to be fundamental limits on the
  accuracy of predicting secondary structure on the
  basis of sequence alone.

20
An SVM classifier for secondary structure

• The authors propose to use a set of SVMs to
  classify secondary structure. They justify this
  by pointing to the superiority of SVMs over
  competing learning methods in a number of
  different fields. Also
• The rigorous learning theory that describes SVMs
• The relative simplicity of constructing them.

21
Implementation

• Use the ever-popular sliding window.
• Use Gaussian Kernel (they refer to this as
  radial basis, in keeping with neural network
  terminology)
• Data sets RS126 and CB513. We will use the RS126
  set (Rost Sander, J. Mol. Biol., 232, 584-599
  (1993)), available on the class home page.
• SVM code? We will use SVM Light (available on the
  class home page, precompiled for OS X).

22
Training data format

• The RS126 set presents a collection of 126
  multiple alignments of related proteins.
• We will use the head sequence of each
  alignment these are collected conveniently in
  FASTA format herehttp//antheprot-pbil.ibcp.fr/R
  ost.html
• We will use the secondary structure prediction
  found using DSSP, with the category
  identifications used by Hua Sun.
• We will use a window of 11 residues, classifying
  the secondary structure assignment of the residue
  in the central position.

23
Generating Training Data

• We will train three classifiers Helix/Helix,
  Sheet/Sheet and Coil/Coil.
• For each sequence
• Slide a window of selected length along the
  sequence to control how many example are
  generate, we will employ a user-selected stride
  when advancing the window.
• Use the DSSP string to assign the type of each
  residue, with the mapping H,G,I-gtH, E,B-gtE, all
  others -gt C (coil, represented as - in the data
  set).

24
Data Encoding

• Since this is for educational/recreational
  purposes, lets code our amino acids using three
  attributes
• Molecular weight
• Kyte-Doolittle hydophobicity
• Charge
• Note that we can also encode the identities of
  the amino acids using orthogonal binary vectors
  (just like in our neural net work). Hua Sun
  also employ this approach.

25
Implementing the Data Encoding

• Use a single perl script
• Generate three training output files, one for
  H/H, one for E/E, one for C/C, and three
  corresponding validation files. Use 50 of the
  data for training, 50 for validation.
• Generate the encoding expected by SVM Light see
  http//svmlight.joachims.org/Example-1 10.43
  30.12 92840.2 abcdef

Label
Attribute Value
Comment
26
Kyte-Doolittle Hydrophobicity Scale
Alanine 1.8 Arginine -4.5
Asparagine -3.5 Aspartic acid -3.5
Cysteine 2.5 Glutamine -3.5
Glutamic acid -3.5 Glycine -0.4
Histidine -3.2 Isoleucine 4.5
Leucine 3.8
Lysine -3.9 Methionine 1.9
Phenylalanine 2.8 Proline -1.6
Serine -0.8 Threonine -0.7
Tryptophan -0.9 Tyrosine -1.3
Valine 4.2
http//arbl.cvmbs.colostate.edu/molkit/hydropathy/
scales.html
27
Amino Acid MWs
Alanine Ala A 71.04 Arginine Arg R
156.10 Aspartic acid Asp D 115.03 Asparagine Asn
N 114.04 Cysteine Cys C 103.01 Glutamic acid Glu
E 129.04 Glutamine Gln Q 128.06 Glycine Gly G
57.02 Histidine His H 137.06 Hydroxyproline Hyp -
113.05 Isoleucine Ile I 113.08 Leucine Leu L
113.08
Lysine Lys K 128.09 Methionine Met M
131.04 Phenylalanine Phe F 147.07 Proline Pro P
97.05 Serine Ser S 87.03 Threonine Thr T
101.05 Tryptophan Trp W 186.08 Tyrosine Tyr Y
163.06 Valine Val V 99.07
