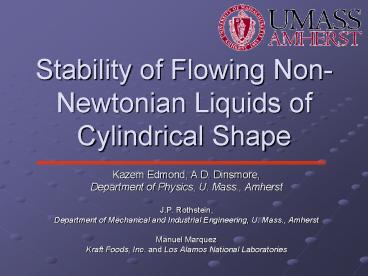

Stability of Flowing Non-Newtonian Liquids of
Cylindrical Shape

• Kazem Edmond, A.D. Dinsmore,
• Department of Physics, U. Mass., Amherst
• J.P. Rothstein,
• Department of Mechanical and Industrial
  Engineering, U. Mass., Amherst
• Manuel Marquez
• Kraft Foods, Inc. and Los Alamos National
  Laboratories

2
Motivation

• Ultimate Goal Develop a method for the
  self-assembly of rigid cylinders.
• Coat cylindrical fluid interfaces with
  nano-spheres.

3
Motivation Continued

• Develop a consistent method for the creation of
  long-lived coherent jets.
• Build a device that produces cylindrically shaped
  fluid interfaces via flowing streams of water and
  oil.

4
Outline

• Motivation
• Part 1 Jetting
• History and Previous Work
• Design of Apparatus
• Results
• Part 2 Encapsulation
• History
• Results (Self-Assembled Cylinders)
• Conclusion

5
Spheres are easy

• Droplets of water suspended in oil normally form
  spheres, and not cylinders.
• But we need a cylindrical fluid interface

A sphere maximizes volume, while minimizing
surface area, resulting in the least amount of
surface tension. Less surface tension requires a
lower amount of free surface energy.
6
but cylinders are hard.

• While we cannot force droplets to be cylindrical,
  jets of water are naturally cylindrical.
• To produce jets
• Overcome the Rayleigh Instability, which is
  responsible for droplet formation.
• Use a coaxial hydro-dynamic flow-focusing
  geometry.

7
Related Work

• Previous experiments have demonstrated a
  controlled method of droplet production (oil and
  water).
• Jetting was observed at high oil-flow velocities.
• We will use a non-Newtonian inner fluid.
• A polymer (polyacrylamide) dissolved in water
  will help maintain a longer lasting coherent jet,
  giving enough time for particle adsorption.

S.L. Anna, N. Bontoux, H.A. Stone, Appl. Phys.
Lett. 82, Number 3, 20 Jan. 2003.
8
Polyacrylamide

• Polyacrylamide is a long polymer. MW (5-6)x106
• The polymer acts as a non-linear entropic spring.
• Stretches, resists extensional flow (very high
  extensional viscosity).
• Exerts normal stress on the oil-water
  interface--counters the Laplace pressure.
• The waters viscosity changes with shear-rate.

Elongated Entropic spring
Random Coil
9
Design
OIL
WATER
10
Apparatus

• Producing long-lived coherent jets using a
  flow-focusing geometry.
• Oil flows around an inner stream of water.

Water
Oil
11
Jetting in Action
100 mm
12
Controllable Jets
100 mm
13
Data
JETTING
80 mm
50 mm
30 mm
DROPLETS
14
Jet Encapsulation

• We want to coat our stable jets with nano-spheres.

15
Encapsulation

• Shells formed with spherical droplets
• A.D. Dinsmore, et al., Science 298, 1006 (2002)
• Y. Lin, et al., Science 299, 226 (2003)

A Scanning electron microscope of a dried
10-µm-diameter colloidosome composed of 0.9-
µm-diameter polystyrene spheres.
A 0.7- µm-diameter PMMA spheres adsorbed onto
surface of water droplet. B Single-layer-thick
image of PMMA particles.
16
Spheres
20 mm
17
Cylinders
18
More Cylinders
19
Conclusion

• Cylindrical fluid interfaces were achieved using
  a coaxial flow arrangement.
• Interface is stable long enough for adsorption to
  take place.
• Plans for the Future
• Make more and better cylinders.
• Dynamics of the Assembly.
• Mechanical Properties of the Cylinders.
