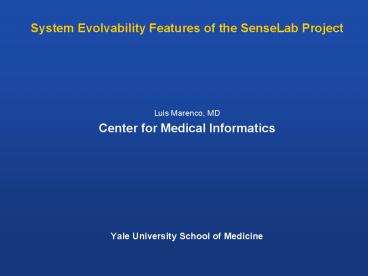

System Evolvability Features of the SenseLab Project

1

• System Evolvability Features of the SenseLab
  Project
• Luis Marenco, MD
• Center for Medical Informatics
• Yale University School of Medicine

2
Outline

• The nature of some bioscience applications (e.g.
  Neuroscience) where domain knowledge is in
  constant revision requires an application
  infrastructure capable to evolve over time.
• The reasons and one possible solution to this
  problem will be reviewed in the following
  topics
• Motivation The SenseLab project
• Background issues of standard applications
• Evolvable applications goals
• Some Possible solution scenarios
• EAV/CR - features for evolvable applications
• EAV/CR derived methodologies for evolvable
  applications
• EAV/CR application demo (SenseLab)
• EAV/CR Solution Framework

3
Motivation The SenseLab Project

• The SenseLab project is a ongoing effort to
  integrate multidisciplinary sensory data using
  the olfactory system as model domain.
• The process involves the development of
  neuroinformatics databases and tools in support
  of neuroscience research.
• SenseLab web-portal contains the following
  web-databases
• Neuronal research NeuronDB, ModelDB, and
  CellPropDB
• Olfactory research ORDB, OdorDB, and OdorMapDB
• The fundamental problem statement is the
  maintenance burden due
• Constant domain evolution
• Research of not well understood process like
  olfaction involves constant factoring-in of new
  variables or disciplines

4
Background Issues of Standard Applications

• Standard database applications are characterized
  with code entwined with metadata descriptors from
  back-end databases. The limitations to this
  approach are
• Increased coding as database complexity grows
• Limited code reusability
• Lack of robust data interoperability (messages
  mirror the schema)
• Complexity derived by use of multiple tools to
  maintain schema data editing, and security
• To advance knowledge represented as metadata, the
  necessary schema changes will lead to
• Downtime and application breakdown
• Interface redesign (GUI and Inter-application
  recoding)
• Increased code complexity
• Increased probability of coding errors

5
Background Issues of Standard Applications (2)

• Traditional Web-database applications
• Data entry and security Cumbersome, expensive
  and non-portable to other applications
• Searching mechanisms Limited, difficult to
  standardize and expensive to create. The hidden
  web remains an issue
• Site-wide architectures are cumbersome to adapt
  to new web formats (e.g. Semantic-web types)
• Metadata maintenance
• Data dictionary Incomplete
• Complex, non centralized, and requires more than
  one tool
• Requires specific database expertise. Non
  portable knowledge
• Tools and software libraries are specific to
  every vendor database

6
Evolvable Application Goals

• PRIMARY
• Create a programmatic approach capable to allow
  databases structural changes without disrupting
  the existing data and code
• Minimize codemetadata dependency focusing on
  automated interface generation (GUI Inter App.)
• Improve code simplification as project matures
  Extreme Programming principles
• SECONDARY
• Facilitate system integration to a Web platform
• Accessibility from common web browsers.
• Incorporate role-based security with public and
  private data
• Create generic interfaces and formats for data
  exchange
• Improve code reusability leveraging previous
  approach
• Foresee robust interoperability with standardized
  protocols

7
Possible Solution Scenarios (some)

• Use of object oriented or object relational
  databases Immature and unsupported
• Leverage other application approaches (e.g.
  Protégé) The part that is related with flexible
  data structures Lack of features (e.g.
  non-distributed or web-based, no security
  implied). Future version will possibly cover
  these features.
• Built a new ground-up solution to provide
  needed features The EAV/CR Application Framework
  (Combination of data storage approach software
  practices)

8
EAV/CR Storage Approach

• EAV/CR (Entity-Attribute-Value with Classes and
  Relationships) data storage system is derived
  from the EAV row based data modeling approach
  widely used in Electronic Patient Record Systems
  and MS Windows Registry, among others.

9
Relational (left) to EAV/CR (right) Comparison
EAV/CR uses a limited number of tables to
represent any amount of tables from a relational
DB. EAV/CR treats data (VALUES) and metadata
(CLASSES, ENTITIES, and ATTTRIBUTES) as
relational data allowing flexible domain
representation.
10
EAV/CR Storage Approach (2)

• EAV/CR augments standard EAV by
• Grouping entities in Classes C
• Using strong data typing for value storage
• Allowing computed attributes (functions)
• Allowing entity relationships R (related and
  hierarchical attribs.)
• Including implicit data and metadata versioning
  and timestamp
• Including Web oriented features Metadata have
  been enriched with web parameters to automate
  web-interface generation (Web forms, XML, )
• Assisting ontological representation Mapping
  standardized vocabulary and semantic
  relationships identifiers to data and metadata
  elements

11
EAV/CR Features for Evolvable Applications

• Automatic system adaptability to DB structural
  changes
• Generic metadata-driven database navigation
• Robust data-entry and schema-maintenance web
  forms generation
• Ability to create database portals to present
  different subsets of the data to users with a
  particular research focus
• Centralized role-based security. Uses a
  compartmentalized distributed administration
  model to minimize dedicated administration costs
• Monitoring tools

12
EAV/CR Features for Evolvable Applications (2)

• Expandable system architecture Allows parallel
  processing by scaling-out. Parallel web servers
  can connect to the same EAV/CR database
  preserving security, data and metadata
  concurrency
• Delegated user profile management Users are
  responsible of their own profiles, administrators
  provide access to users to specific database
  resources. (Web portal model)

13
EAV/CR derived methodologies for evolvability

• Data Services Creation of the EDSP InfoSet
  protocol to allow description of database
  ontology, metadata, and data in a simple XML
  format. (It brings the EAV/CR approach to the XML
  world).
• The following processes depend on EDSP
• Data transference
• Middle tier components
• Automated Ad-hoc query interface generation
• Using EDSP as the source for these processes
  improves software components stability and
  reusability

14
EAV/CR Application Framework

• Programming model
• Component programmer
• Domain programmer
• EAV/CR Framework Toolkit (version1. Codename?)
• Database Component Encapsulates EAV/CR logic
  presenting interfaces for domain programmers.
  Created in MS C.NET
• Plumbing code Generic Web portal scripts.
  IIS-ASP-VBScript

15
Summary

• EAV/CR and Evolvability
• High data integration
• Flexibility in database schema evolution /
  maintenance
• Code reuse and increased reliability
• Extensible application architecture
• Disadvantages
• Querying complexity
• Multi-parameterized queries performance penalty
• Complex EAV/CR components programming

16
Demo Metadata driven Ad hoc interface generation

• Boolean expression can be added for complex
  associations. Results can be retrieved in HTML,
  XML text and other formats.

17
Demo Metadata driven Ad hoc interface generation
(2)

• The same generic code behind this interface is
  reused in other databases augmenting the value
  added in this robust evolvable design.

18
Demo EAV/CR Centralized Schema Management

• The Schema Manager tool displays and allows
  edition of the database structure. This figure
  shows the database inventory of the SenseLabs
  EAV/CR data store with links to specific elements

Next gtgt After selecting CellPropDB
19
Demo EAV/CR Centralized Schema Management (2)

• Selecting a database (e.g. ModelDB), displays
  the web database information, this can be changed
  at any time.

20
Demo EAV/CR Centralized Schema Management (3)

• On the left, selecting Classes displays the
  list of Classes for ModelDB, on the right the
  Class Models is being edited

21
Demo EAV/CR Centralized Schema Management (4)

• While in the class Models, selecting the
  Attributes tab shows all its attributes (left).
  On the right, the attribute neurons shows its
  relation to neuron objects from NeuronDB.

22
Demo EAV/CR Centralized Schema Management (5)

• Similarly like in previous slides, Schema manager
  allows entering of new users and granting rights
  to specific databases. Lastly, by clicking on the
  diagram link, shows the ER representation of the
  ModelDB database.

23
Demo InfoSets and Evolvable Interoperability

• The creation of the EDSP (EAV/CR dataset
  protocol) allows transference of database schema
  and data in a simple consistent format based upon
  the universally accepted XML format. This picture
  show a partial rendering of some olfactory
  receptors molecules from ORDB

24
Demo InfoSets and Evolvable Interoperability (2)

• Meanwhile, exchange of data with other standard
  protocols is achieved through XML
  transformations. Below is the previous EDSP
  message transformed into Microsoft XDR, format
  used by the MS Office Suite to import into MS
  Access and MS SQL Server.

25
Demo InfoSets and Evolvable Interoperability (4)

• A practical use of the XDR is demonstrated here
  while importing data directly from a SenseLab URL
  to an Access or SQL Server database.

26
Demo InfoSets and Evolvable Interoperability (5)

• This example points to a particular olfactory
  receptor at
• (http//senselab.med.yale.edu/senselab/site/dbGate
  /Xtract.asp?o1798xsledsp-officedata)

27
Demo InfoSets and Evolvable Interoperability (6)

• Access shows the tables to be generated

28
Demo InfoSets and Evolvable Interoperability (7)

• Next imports the tables

29
Demo InfoSets and Evolvable Interoperability (8)

• relationships, and the data (preserving strong
  data typing )
• All in one deEAVfication process.
