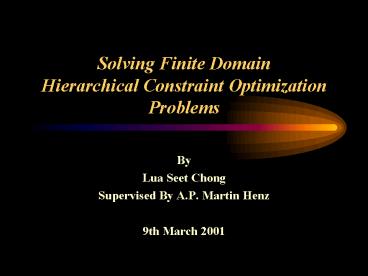

Solving Finite Domain Hierarchical Constraint Optimization Problems

1
Solving Finite Domain Hierarchical Constraint
Optimization Problems

• By
• Lua Seet Chong
• Supervised By A.P. Martin Henz
• 9th March 2001

2
Outline

• Motivation, Project Background
• Constraint Hierarchies
• Tree Search
• Local Search
• Experimental Results
• Gate Allocation Problem
• Sports Scheduling Problem
• Conclusion

3
Integrate Project Background

• Solve the gate allocation problem
• Domain knowledge provided by CAAS and Changi
  Airport
• KRDL provides the management support
• Sponsored by NSTB

4
Motivation

• Gate Allocation Problems
• large combinatorial optimization problems with
  many complex soft and easy hard constraints
• Local Search
• Constraint Hierarchies
• Flexibility of using symbolic constraints

5
Previous Works

• Constraint Hierarchies
• Hierarchical Constraint Logic Programming, Alan
  Borning, 1992
• Over-constrained Integer Programming
• WSAT(OIP), Joachim Paul Walser, 1997

6
Problem Encoding

• Propositional Satisfiability Problems (SAT)
• represent the problem in CNF
• Constraint Satisfaction Problems (CSP)
• allow many types of formulation
• example linear programming

7
Why CSP is successful

• Clean separation between problem encodings and
  problem solving techniques
• Flexibility to extend the problem encoding by
  adding new constraint type
• Synergy problem solving techniques for all
  constraint types work with each other.

8
Over-Constrained Problems

• Constraint problems where conflicting constraints
  exist
• Hierarchical Constraints

9
Constraint Hierarchies
10
Constraint Hierarchy Example

• Constraints
• ca y -x 10
• cb y ? 4x
• cc y ? x 8
• cd y ? 5
• Constraint Hierarchy
• C0 ca
• C1 cb , cc
• C2 cd

11
Feasible Region Bounded by Cb and Cb
12
Constraint Hierarchy Example
P2x ? 4, y ? 6
P3x ? 1, y ? 9
e(cd ) 1
e(cd ) 4
e(cc ) 0
e(cc ) 0
e(cb ) 2.3
e(cb ) 0
e(ca ) 0
e(ca ) 0
Weighted-Sum-Better
13
Constraint Hierarchy Example
P4x ? 2, y ? 8
P3x ? 1, y ? 9
e(cd ) 3
e(cd ) 4
e(cc ) 0
e(cc ) 0
e(cb ) 0
e(cb ) 0
e(ca ) 0
e(ca ) 0
Weighted-Sum-Better
14
Constraint Hierarchy

• X set of variables
• For each x ? X,
• Dx finite set of values that x can take
• k-nary constraint over variables x1,, xk is a
  relation over Dx1 ? ? Dxk

15
Constraint Hierarchy

• Constraint Hierarchy,
• CH is a vector ?C0 ,C1 ,,Cn?
• where for each 0 ? i ? n,
• Ci is a multiset constraints of rank i
• C0 contains required (hard) constraints
• C1,,Cn denote preferential (soft) constraints

16
Constraint Hierarchy

• A valuation ? is a function that maps the
  variables in X to elements in the domain D
• Solution set S0 ? ?c ? C0, c? holds
• Optimal solution set,
• Sbetter ? ?S0 ?? ? S0 , ?better(? , ? )

17
Constraint Hierarchy

• Comparator
• weighted-sum-better(? , ? ) ?
• ?k. 1 ? k ? n such that
• ?i ?1k-1.
• rank-sum(? ,Ci) rank-sum(? , Ci)
• ? rank-sum(? ,Ck) lt rank-sum(? , Ck)

18
Constraint Hierarchy

• rank-sum(? ,Ci) ? ?c?Ciw(c)e(c? )
• where w(c) is a real number weight for
  constraint c and e(c? ) is an error function

19
Tree Search
20
Finite DomainConstraint Programming

• Successful technique for solving combinatorial
  problems.
• 3 main components
• Propagation Algorithms
• Branching Algorithms
• Exploration Algorithms

21
Branching Algorithms

• Assume
• a stable constraint store s and
• a branching constraint c
• A branching algorithm make use of a branching
  constraint c looking into 2 new constraint stores
  s ? c and s ? ?c

22
Enumeration Algorithms

• Enumeration algorithm if
• c is in the form of x v
• 2 heuristics
• variable selection heuristic
• value selection heuristic

23
Cost Driven Value Selection

• A value selection heuristic that order the values
  using the cost variable
• 2 Variant of Search
• Cost Driven Search
• Cost Driven Descent

24
Cost Driven Value Selection
25
Hierarchical Cost Driven Value Selection

• Order the values within a variable according to
  the hierarchical comparator instead of a integer
  comparator

26
Local Search
27
Walk Search Background

• GSAT, WSAT ? WSAT(OIP)
• Bart Selman and Henry Kautz, 1993
• WSAT(OIP) generalized the SAT problem solving
  techniques to solve over-constrained integer
  programming problems Walser 1997

28
WalkSearch Algorithm

• Proc WalkSearch(C, X, Max_moves, Max_tries)
• for i 1 to Max_tries do
• ? an initial assignment
• ?_best ?
• for j 1 to Max_moves do
• if ? meets solution stopping condition
• then return ?
• if ? is feasible ? improve(?, ?_best, C)
• then ?_best ?
• c select-unsatisfied-constraint(C, X,
  ?)
• ltxk,vgt select-partial-repair(C, X, c,
  ?)
• ? ?xk ? v
• end
• end
• return ?_best
• end

29
Generalization of WSAT(OIP)

• Any constraints (i.e non-linear, symbolic)
• select-partial-repair
• Constraint hierarchy
• improve
• select-unsatisfied-constraint

30
select-partial-repair

• Generate the VarValue pairs
• Remove tabued VarValue pairs
• Choose VarValue pair that give the highest score.
  Tie breaking using i) least frequently ii)
  longest time ago
• If the chosen VarValue pair does not improve the
  global score, choose any pair from VarValue with
  probability pnoise

31
select-unsatisfied-constraint

• hardOrSoft, select a violated constraint in C0
  with probability Phard
• topOrRest, select a violated constraint in top
  most unsatisfied rank with probability Ptop
• rankProb, select a violated constraint in Ci with
  probability Pi
• consProb, select a violated constraint in Ci with
  a dynamic probability Dpi which is
• Pi Civiolated
• ?j?0,,n Pj Cjviolated

32
Why consProb?
Prob. for selecting a constraint in rank i
?Ci?
Rank i
Pi
rankProb
consProb
100
0
1000
100/111 ? 1000 0.0009009
100
(10)
10/111 ? 10 0.009009
10
1
10
10
(100)
1/111 ? 100 0.00009009
1
2
100
1
(1)
33
Gate Allocation Problem
34
Gate Allocation Problem (GAP)

• Allocating gates to arriving and departing
  aircrafts, Haghani, 1998, Yu Cheng, 1998
• Minimizing Transfer Walking Distance
• Work on instances from Changi Airport

35
GAP constraints

• No Overlapping - No two aircraft can be allocated
  to the same gate simultaneously
• Aircraft Type - Particular gates can be
  restricted to admit only certain aircraft types
• Push Back - An aircraft leaving a gate
  (push-back) will restrict other operations in
  close temporal and spatial vicinity
• 22 more constraints

36
GAP 0/1 Model

• GAP with m aircrafts and n gates
• m?n 0/1 variables Yij are introduced where
• 1 ? i ? m and 1 ? j ? n
• Yij 1 iff aircraft i is allocated to gate j

37
Example 0/1 Model of No Overlapping

• If aircraft i and k has overlapping ground time,
  for every gate j where 1 ? j ? n
• Yij Ykj ? 1

38
GAP Finite Domain Model

• GAP with m aircrafts and n gates
• For each aircraft i, Xi is introduced to
  represent the gate aircraft i uses
• The domain of Xi is 1 to n
• Xi j iff aircraft i is allocated to gate j

39
Example FD Model of No Overlapping

• For each maximal set of aircraft S whose ground
  time overlaps, a symbolic constraint alldiff(S)
  is introduced

40
Objectives of Experiments

• Comparing 0/1 model vs finite domain model
• Comparing the performance of proposed constraint
  selection scheme

41
Setup of Experiments

• For each problem model, benchmark problem and
  constraint selection scheme
• pNoise (0.0, 0.1, , 0.5)
• 5 probability distributions among ranks
• 8421
• 90.330.330.33
• 80.50.51
• 6112
• 1000100101

42
Setup of Experiments

• Small benchmarks allow optimality comparison
• use CPLEX to find optimal solution
• count how often optimal solution is reached
• Large benchmarks
• compare scaling behavior
• use relative solution quality to compare

43
Benchmark Problems

• Small Problem (P1 - P6)
• ranging from 10 - 30 flights
• Bigger Problem (P7 - P15)
• ranging from 50 -257 flights

44
Comparison of Solving Time
45
Performance of Finite Domain vs 0/1 Model using
Best select-unsatisfied-constraint
46
Performance of Finite Domain vs 0/1 Model for
Bigger Test Cases
47
Performance of Different Constraint Selection
Scheme on FD Model
48
Performance of Different Constraint Selection
Scheme on 0/1 Model
49
Performance of Different Constraint Selection
Scheme on FD Model for Bigger Test Cases
50
Performance of Different Constraint Selection
Scheme on 0/1 Model for Bigger Test Cases
51
Hierarchical Cost Driven Descent on GAP
52
Experimental Result Summary

• Finite Domain model allows WalkSearch solver to
  works better than 0/1 model
• Constraint hierarchy specific
• select-unsatisfied-constraint perform better
  (ConsProb, RankProb)
• Hierarchical Cost Driven Descent is able to find
  reasonably good solution

53
Sports Scheduling Problem
54
Number of Moves to Solve ACC Problem
WalkSearch
WSAT(OIP)
55
CPU Time Taken to Solve ACC Problem
WalkSearch
WSAT(OIP)
56
Experimental Result Summary

• WalkSearch solver works for a non-hierarchical
  constraint problem
• WalkSearch solver works as good as WSAT(OIP)
• WalkSearch find solution more frequently than
  WSAT(OIP) but it runs slower

57
Conclusion
58
Conclusion

• Empirical Study on Changi Airport Gate Allocation
  Problem
• Hierarchical Cost Driven Descent is able to solve
  Gate Allocation Problem

59
Conclusion

• Adapted Contraint Hierarchies to Finite Domain
  Problem
• Hierarchy-specific constraint selection scheme
  helps to find better solutions
• WalkSearch Solver can solve both 0/1 and Finite
  Domain Hierarchical Constraint Problems

60
Acknowledgement

• Integrate project members
• Roland H. C. Yap
• J. Paul Walser
• Lim Yun Fong
• Shi Xiao Ping
• Hu You Lan
• We thank Civil Aviation Authority of Singapore,
  Kent Ridge Digital Labs for providing documents
  and test data sets on the Changi Airport gate
  allocation problem.

61
