Title: SafetyCritical Systems 2 Requirement Engineering


1

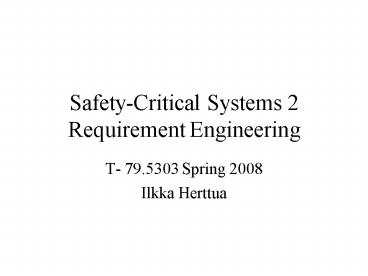

Safety-Critical Systems 2Requirement Engineering
  • T- 79.5303 Spring 2008
  • Ilkka Herttua

2
Critical Applications
  • Computer based systems used in transportation,
    chemical process and nuclear power plants.
  • A failure in the system endangers human lives
    directly or through environment pollution. Also
    preferable approach for systems, which have large
    scale economic influence. (telecom, space)

3
Examples of computer failures in critical systems
4
Safety Context Diagram
HUMAN
PROCESS
  • Operating Rules
  • Physical Facts

SYSTEM
  • Designing
  • Operating
  • - Hardware
  • Software
  • Technology

5
Current situation / critical systems
  • Based on the data on recent failures of critical
    systems, the following can be concluded
  • Failures become more and more distributed and
    often nation-wide (e.g. air traffic control and
    commercial systems like credit card denial of
    authorisation)
  • The source of failure is more rarely in hardware
    (physical faults), and more frequently in system
    design or end-user operation / interaction
    (software).
  • The harm caused by failures is mostly economical,
    but sometimes health and safety concerns are also
    involved.
  • Failures can impact many different aspects of
    dependability (dependability ability to deliver
    service that can justifiably be trusted).

6
Safety Definition
  • Safety
  • Safety is a property of a system that it will
    not endanger human life or the environment.
  • Safety-Critical System
  • A system that is intended to achieve, on its
    own, the necessary level of safety integrity for
    the implementation of the required safety
    functions.

7
V - Lifecycle model
8
Overall safety lifecycle
  •

9
Developing safety-related systems
  • To achieve safety
  • 1. safety requirements (avoid possible
    hazards, risks)
  • 2. quality management (follow up process)
  • 3. design / system architecture
    (reliability)
  • 4. defined design/manufacture processes
  • 5. certification and approval processes
    (testing, proving)
  • 6. known behaviour of the system in all
    conditions (modelling, formal verification)
  •

10
1. Define the Problem Context
  • Understanding the whole context
  • The problem context, and
  • The problem
  • Setting the boundary
  • The application domain
  • The system
  • Their boundary
  • Describing the context
  • Traditional context diagrams
  • The importance of showing the whole domain

11
Data. Prep. system
Installation rules and track layout
Maintenance
Environment
Human
National rules
Power source
Traffic control system
Diagnostics system
Boundary 2
RBC
Route Setting
Control
EURO-INTERLOCKING Context diagram working draft,
28.03.00.
Object Controller
Power Supply
Train
12
Safety Requirements
  • Requirements are stakeholders (customer) demands
    what they want the system to do. Not defining
    how !!! gt specification
  • Safety requirements are defining what the system
    must do and must not do in order to ensure
    safety. Both positive and negative functionality.
  •

13
Specification
  • Supplier instructions how to build the system.
    Derived from the required functionality
    Requirements.
  • Requirements R Domain Knowledge D gt
    Specification S

14
Where do we go wrong?
  • Many system failures are not failures to
    understand R requirements they are mistakes in
    D domain knowledge
  • A NYC subway train crashed into the rear end of
    another train on 5th June 1995. The motorman ran
    through a red light. The safety system did apply
    the emergency brakes. However the ...signal
    spacing was set in 1918, when trains were
    shorter, lighter and slower, and the emergency
    brake system could not stop the train in time.
  • Are you sure?

15
Requirement Engineering Right Requirements
  • Ways to refine Requirements
  • - complete linking to hazards (possible
    dangerous events)
  • - correct testing modelling
  • - consistent semi/formal language
  • - unambiguous text in real English
  •

16
Requirement Engineering
  • Tools Doors (Telelogic)
  • Data base and configuration management
  • History, traceability and linking
  •
  •

17
Project Development Process
Requirements Simulation
RequirementsValidation via Simulation
Requirements Modelling
Capture requirements
Furnish Railway requirements
18
Traceability in DOORS
Architectural Design
Requirement
Specification
Test Plan
Follow Customer Ammendments through all the
Documentation
19
Traceability - Requirements from Scenarios
Boat lifted
Boat loaded
Two people shall be able to lift the boat onto
the roof of the average saloon car.
Boat on car
Ready to sail
Boat unloaded
Mast rigged
Center-plate rigged
traceability
Boat rigged
To have sailed and survived
Rudder rigged
The sailor shall be able to perform a tacking
manoeuvre.
Goal hierarchy
Gibed
user requirements
Tacked
Boat manoeuvred
Sailed
Cruised
The sailor shall be able to contact the
coastguard when the boat is capsized.
Boat righted
Boat capsized
Returned home
Coast guard contacted
Gone ashore
20
(No Transcript)
21
Risk Analysis
  • Risk is a combination of the severity (class) and
    frequency (probability) of the hazardous event.
  • Risk Analysis is a process of evaluating the
    probability of hazardous events.
  • The Value of life??
  • Value of life is estimated between 0.75M 2,5M
    Euro.
  • USA numbers higher.

22
Risk Analysis
  • Classes - Catastrophic multiple deaths
    gt10
  • - Critical a death or severe injuries
  • - Marginal a severe injury
  • - Insignificant a minor
    injury
  • Frequency Categories
  • Frequent 0,1 events/year
  • Probable 0,01
  • Occasional 0,001
  • Remote 0,0001
  • Improbable 0,00001
  • Incredible 0,000001

23
Hazard Analysis
  • A Hazard is situation in which there is actual or
    potential danger to people or to environment.
  • Analytical techniques
  • - Failure modes and effects analysis (FMEA)
  • - Failure modes, effects and criticality
    analysis (FMECA)
  • - Hazard and operability studies (HAZOP)
  • - Event tree analysis (ETA)
  • - Fault tree analysis (FTA)

24
Fault Tree Analysis 1
The diagram shows a heater controller for a tank
of toxic liquid. The computer controls the heater
using a power switch on the basis of information
obtained from a temperature sensor. The sensor is
connected to the computer via an electronic
interface that supplies a binary signal
indicating when the liquid is up to its required
temperature. The top event of the fault tree is
the liquid being heated above its required
temperature.

25
Fault event not fully traced to its source
Basic event, input
Fault event resulting from other events
OR connection
26
Risk acceptability
  • National/international decision level of an
    acceptable loss (ethical, political and
    economical)
  • Risk Analysis Evaluation
  • ALARP as low as reasonable practical (UK, USA)
  • Societal risk has to be examined when there is
    a possibility of a catastrophe involving a large
    number of casualties
  • GAMAB Globalement Au Moins Aussi Bon not
    greater than before (France)
  • All new systems must offer a level of risk
    globally at least as good as the one offered by
    any equivalent existing system
  • MEM minimum endogenous mortality
  • Hazard due to a new system would not
    significantly augment the figure of the minimum
    endogenous mortality for an individual
  •

27
Risk acceptability
  • Tolerable hazard rate (THR) A hazard rate which
    guarantees that the resulting risk does not
    exceed a target individual risk
  • SIL 4 10-9 lt THR lt 10-8 per hour
    and per function
  • SIL 3 10-8 lt THR lt 10-7
  • SIL 2 10-7 lt THR lt 10-6
  • SIL 1 10-6 lt THR lt 10-5
  • Potential Loss of Life (PLL) expected number of
    casualties per year
  • SIL safety integrity level
  •

28
V - Lifecycle model
29
Additional home assignments
  • From Neil Storeys book Safety Critical Computer
    Systems
  • 1.12 (Please define primary, functional and
    indirect safety)
  • 2.4 (Please define unavailability)
  • Email by 14 February to herttua_at_uic.asso.fr
