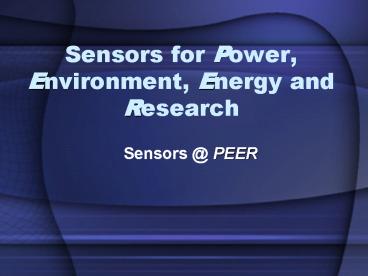

Sensors for Power, Environment, Energy and Research

1
Sensors for Power, Environment, Energy and
Research

• Sensors _at_ PEER

2
Science Technology for Sensors _at_ PEER

• Adsorption type sensors
• Such sensors are low cost and easy to
  manufacture, but suffers from baseline drift and
  slow response.
• At PEER, we are developing novel sniffing
  schemes coupled with MEMS technology to remove
  the drift problem and improve response time.
• Chemical transient imaging
• Help closing the basic loop in combustion by
  imaging transient species under high temperature
  and pressure.
• At PEER, we are developing high power UV lasers
  for PLIF imaging and multispectral cameras for
  transient chemilluminescenec imaging.
• Laser based sensing
• Elastic Scattering Mie/Rayleigh, OCT, we are
  developing multicolor lasers and novel setups for
  improved non-intrusive sensing on particulates
  and submerged tissues.
• LIDAR using FM spectroscopy, Isotope NDIR, we are
  developing sensors that could are setting a
  record in sensing distance using FM spectroscopy
  technique
• Inelastic scattering RAMAN, LIF, we are
  developing several setups for high temperature
  and pressure RAMAN and LIF sensing.

3
Adsorption type sensors

• Low cost to manufacture
• e. g. polymer, electrolyte
• Easy to be tuned for different chemicals
• Vulnerable to baseline drifts caused by
  temperature variations
• Our solution --- fast sniffing process (patented)
  and realized through MEMS technology

4
Adsorption sensorsHow do they work?
Sniffing redefines the baseline on a faster time
scale (seconds or faster)
5
Hyperspectral imaging

• Narrow filter on each pixel corresponding to each
  chemical species color
• Each pixel captures different species color and
  use RGB algorithm for reconstructing chemical

6
Planar Laser Induced Fluorescence (PLIF) imaging

• Develop high power UV pulsed lasers solid state
  high power UV lasers (e.g. up to 40mJ at 226nm)
  for NOx PLIF
• Understanding the basic science of combustion
  dynamics --- close the loop (collaboration with
  AirFluidics)

7
Multiwavelength Light Scattering

• Featuring unique Multi-wavelength (from UV,
  Visible to IR) laser scattering
• Easy deployment strategy --- multiwavelength
  lasers reduces the need for wide angle detection

8
Multiwavelength laser scattering microscope

• Featuring unique Multi-wavelength laser
  scattering
• Integrated with microscope to see and analyze
  particles with size close to or under optical
  resolution
• Tiny particles have fast changing scattering
  pattern under the microscope when the wavelength
  changes
• Already demonstrated the capability to see tiny
  particles

9
Integration with Microscopy
Is light out of focus useless?
10
Computer simulation fix 100nm diameter
Blue area is the microscope angular collection
region, which happen to be the fast changing part
as wavelength changes.
11
Sensors for Power generation (2)

• We develop solid state high power UV lasers (e.g.
  up to 40mJ at 226nm) for NOx PLIF
• We develop chemical specific hyperspectral
  chemluminescence imaging sensors for transient
  species (CH, OH, etc.) imaging
• providing feedback control for combustion
• Works under high temperature

12
Sensors Applications _at_ PEER

• For Power generation
• High temperature combustion sensing
• Large area CO2 LIDAR for carbon sequestration
• For Environmental protection
• CEM Particulate characterization
• Large area gas LIDAR
• For Energy exploration transportation
• Low cost HC sensors
• Isotope analysis
• For Research
• Multiwavelength Light scattering microscope
• Scattering Optical Coherence Tomography
• Microscopic LIF, RAMAN Laser Induced Break-down
  Spectroscopy (LIBS)

13
Sensors for Power Generation

• Development of transient sensors for high
  temperature combustion process
• Reduce emission, Improve efficiency, lifetime
• Collaborators AirFluidics, Solar Power, United
  Technologies, GE, FEC Caltech

14
Sensors for Online Particulate emissions

• Major Results
• Unique fast-gated (ns) CCD arrays and LD drivers
  for field deployment
• Field deployment underway at Alturdyne, Inc.
• Ultimate goal provide a unique easy to install
  online PM measurement instrument
• Project founded by DOE, Industrial collaborator
  Alturdyne, Inc.

15
Large Area LIDAR for CO2 sequestration monitoring

• Featuring multi-beam LIDAR sharing the same light
  source
• Low cost and high availability using telecom
  light sources and optics
• Improved design to fight scintillation, using
  multiple launch beams
• Could be applied to monitor HCl, NH3, CO and H2O
• Founded by DOE
• More details about CO2 monitoring here
