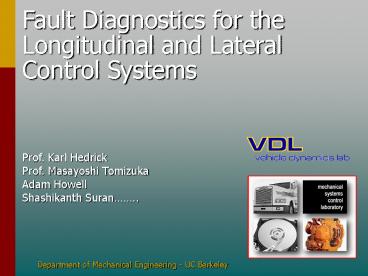

Title: Mechatronics: A Y2K Status Report


1
Fault Diagnostics for the Longitudinal and
Lateral Control Systems
Prof. Karl Hedrick Prof. Masayoshi
Tomizuka Adam Howell Shashikanth Suran..
2
Outline of Presentation
  • Motivation
  • Basic Terminology
  • Longitudinal Control Diagnostics
  • Closed-loop vehicle dynamics
  • Nonlinear observer design
  • Fault estimation
  • Experimental testing
  • Concluding Remarks

3
Motivation
  • Automated control frees human operator from
    repetitive tasks, provides improved performance
    and system stability, however
  • Automated control relies on accurate sensor
    measurements and the assumption that actuators
    respond correctly
  • Not always true in reality, so need some means of
    detecting, identifying, and correcting for these
    faults (preferably without a human operator)

4
Basic Terminology
  • Fault Detection determine when the system is not
    behaving as expected (generally easy)
  • Need at least one measure of error between
    expected and true behavior
  • Fault Identification determine the cause of the
    discrepancy (generally hard)
  • Need at least three independent sources of
    information to correctly identify fault
  • Fault Diagnostics Fault Detection and
    Identification

5
Fault Tolerant Control
  • Classical division of control, fault
    diagnostics, and fault management into separate
    subsystems
  • Pro Allows for simplified independent design of
    diagnostics and control
  • Con Conflicting goals of diagnostics and control
    can limit performance of each subsystem

6
Fault Diagnostics System
  • Residual generator uses model-based redundancy to
    create a set of signals sensitive to faults
    called residuals
  • Each residual is an algebraic relationship
    between
  • Actuator Commands
  • Sensor Measurements
  • Observer Estimates
  • Also called parity equations
  • Residual processor monitors residuals for changes
    to detect and identify faults
  • Thresholding
  • Pattern Identification

7
AVCS in 1997 NAHSC Demo
  • Automated control system relies on twelve
    sensors, three actuators, and intervehicle
    communication
  • Longitudinal Control radar, longitudinal
    accelerometer, wheel speed sensor, engine speed
    sensor, throttle angle sensor, brake pressure
    sensor, manifold pressure sensor, throttle
    actuator, brake actuator
  • Lateral Control magnetometer, steering angle
    sensor, wheel angle sensor, yaw rate gyro,
    lateral accelerometer, steering actuator
  • Design of a complete fault diagnostic system
    covered in Rajamani, et al. (2001), but focus on
    three primary techniques used in system

8
Physical Redundancy
  • Basic concept Given three measurements of the
    same variable, create residuals by forming all
    possible differences
  • Lateral Control Example
  • R11 commanded steering angle-measured steering
    angle
  • R12 commanded steering angle-measured vehicle
    wheel angle
  • R13 measured steering wheel angle-measured
    vehicle wheel angle
  • Similar concept used for
  • Static relationship between wheel speed, engine
    speed, and range rate measurements
  • Input/output relationships in throttle, brake
    system, and longitudinal acceleration

9
Analytical Redundancy using Linear Observer
  • Basic concept If enough direct measurements are
    not available, but related to other
    measurement(s) via linear dynamics, then estimate
    using a linear observer
  • Inter-vehicle spacing example
  • Similar concept used for fault diagnosis in
    magnetometer, yaw rate gyro, and both
    accelerometers

(nprec- n)Lmag
vprec
v
nprec
n
10
Analytical Redundancy using Nonlinear Observers
  • Basic concept If enough direct measurements are
    not available, but related to other
    measurement(s) via nonlinear dynamics, then
    estimate using a nonlinear observer
  • Engine state observer example
  • Concept used for fault diagnosis in throttle,
    brake system, and manifold pressure sensor

11
Residual Processing
  • Fault detection and identification are conducted
    as follows
  • Thresholds are chosen apriori for each residual
    based on noise, disturbances, and modeling
    uncertainty
  • Fault declared when at least one residual exceeds
    its threshold
  • Fault identified by checking which residuals are
    greater than threshold
  • Continuing with previous Lateral Control Example
  • Complete fault diagnostic system was tested in
    simulations, and found to detect and identify all
    single faults in the monitored components

12
Implementation for 1997 NAHSC Demonstration
  • Limited diagnostics implemented for Demo to
    monitor critical components
  • Brake Actuator and Pressure Sensor
  • Throttle Actuator and Angle Sensor
  • Radar Range
  • Inter-vehicle observer estimate used for
    closed-loop control during radar failures

13
Limitations in Longitudinal Diagnostics
  • Although diagnostic system design worked well in
    simulation, several complications noticed in
    subsequent experimental testing
  • Range rate numerically calculated, and not used
    in controller
  • Magnetometer faults not persistent in residuals
  • Torque converter unlocks during normal operation
  • Grade has significant influence on vehicle
    dynamics
  • Recent research for longitudinal control system
    diagnostics has focused on
  • Using knowledge of closed-loop dynamics in
    residual generator
  • Optimal design of nonlinear observers
  • Processing of residuals for fault detection and
    identification

14
Residual Generator
  • Diagnostics can be effectively decoupled between
    two levels of modeling
  • Linear vehicle model resulting from closed-loop
    control
  • Nonlinear vehicle model describing powertrain and
    chassis dynamics
  • Both levels use observers and parity equations
    for redundancy
  • Linear model diagnostics use 2 dedicated
    Luenberger observers to estimate range
  • Nonlinear model diagnostics use 2 nonlinear
    observers to estimate the manifold pressure

15
Dedicated Observers
  • Lower level dynamic surface controller for
    nonlinear dynamics results in overall linear
    vehicle model
  • Synthetic input usyn chosen to provide string
    stability
  • First-order observer also used in practice
  • Convert to state space model and design 2 linear
    observers to estimate , where each observer
    uses the given desired spacing and a single
    sensor measurement

Model
Observer
16
Dedicated Observers (cont.)
  • A third range estimate based on magnetometer
    count and communication
  • Residuals formed from radar range measurement and
    three range estimates

Model
Observer
17
Nonlinear Observer Design
  • Several prior results for estimation of Lipschitz
    nonlinear systems (Raghavan, Rajamani) but only
    stability of estimation error dynamics considered
  • In fact, nonlinear observer design for a more
    general class of systems can be formulated as a
    Lure or absolute stability problem solvable
    using convex optimization

z
18
Nonlinear Observers (cont.)
  • Additional performance measures can be easily
    included in this setting
  • Guaranteed decay rate of estimation error
  • Minimization of disturbances influence on state
    estimates
  • Multi-criterion optimization of both performance
    measures
  • Two engine state observers were designed using
    this methodology to provide pre-specified
    convergence rate
  • Further details in
  • A. Howell and J. Hedrick, Nonlinear observer
    design via convex optimization, in Proc. Of 2002
    ACC.

19
Residual Processor
  • Model faults effects on residuals as
  • is the nonzero offset of the residual
    vector due to modeling uncertainty, sensor noise,
    and controller performance
  • F is the fault signature matrix, where each
    column represents the fixed directional
    characteristics of a specific fault. Obtained by
    calculating steady state gain of residual
    generator
  • is the fault mode vector, where each
    element is an unknown scalar function
    representing the magnitude of the fault at time t
  • Estimate the fault magnitude vector using least
    squares
  • Fault detected when any component of
    exceeds threshold
  • Fault identified by pattern of elements
    exceeding thresholds

20
Experimental Testing
  • Diagnostic system implemented in C, using
    longitudinal controller developed for 1997 NAHSC
    Demonstration
  • Faults generated in software while vehicle was
    under closed-loop control
  • Following experimental data shows results for
    high-speed tests of a three-car platoon at I-15
    in San Diego
  • Faults were artificially introduced in second car
    of the platoon
  • Fault magnitudes were chosen to determine minimum
    detectable fault

21
Velocity tracking of Lead vehicle under nominal
conditions
22
Acceleration of Lead vehicle under nominal
conditions
23
Control actuation of Lead vehicle under nominal
conditions
24
Relative distance tracking of follower vehicle
under nominal conditions
25
Dedicated observer performance under nominal
conditions
26
Nonlinear observer performance under nominal
conditions
27
Dedicated observer estimates under Wheel Speed
Sensor Fault
28
Fault estimate under Wheel Speed Sensor Fault
29
Nonlinear observer estimates under Manifold
Pressure Sensor Fault
30
Fault Estimates under Manifold Pressure Sensor
Fault
31
Status of Diagnostics for Longitudinal Control
  • Fault diagnostics experimentally implemented and
    verified to provide diagnosis of all single
    faults in longitudinal control sensors throttle
    actuator when the torque converter is locked
  • However, torque converter unlocks when brakes
    applied or gear drops below 3rd. This limits the
    effectiveness of diagnostic system under these
    operating conditions, since simplified model no
    longer holds
  • Only detection of faults in braking control
    components possible, i.e. brake pressure sensor
    and brake actuator, but not isolation
  • Same limitation for throttle angle sensor and
    throttle actuator
  • Unable to detect faults in engine speed sensor

32
Ongoing and Future Research
  • Two short-term goals associated with current
    system
  • Improve diagnostics during operating modes where
    simplified model invalid by
  • Including torque converter model
  • Access additional vehicle sensors (ie.
    speedometer) to provide physical redundancy
  • Application to transit buses for 2003
    Demonstration
  • Dedicated observer work should carry over
    directly
  • However, engine dynamics significantly different
  • Longer term goals
  • Further experimental testing under large
    magnitude faults
  • Extension of nonlinear observer design to develop
    nonlinear detection filter
  • Integrated design of controller and diagnostic
    system
