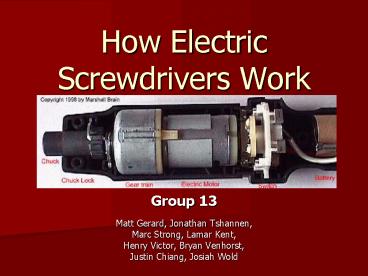

Title: How Electric Screwdrivers Work


1
How Electric Screwdrivers Work
  • Group 13
  • Matt Gerard, Jonathan Tshannen,
  • Marc Strong, Lamar Kent,
  • Henry Victor, Bryan Venhorst,
  • Justin Chiang, Josiah Wold

2
Three Engineering Aspects
  • Mechanical
  • How its designed to operate
  • Electrical
  • How power is used
  • Industrial
  • How to best suit the manufacturer/consumer

3
Mechanical Aspect
  • Planetary Gear System
  • 681 reduction ratio
  • Chuck
  • Motor turns 68 times for each chuck rotation
  • Provides more torque relative to a weak motor

4
Electrical/Mechanical Aspect
  • Electric Motor
  • All about magnetism
  • Magnets create movement
  • Attracting/Repelling magnetic poles cause
    rotation of armature
  • Electrical power converted into mechanical

5
Electrical Aspect
  • Toggle Switch
  • Has default neutral position to conserve power
  • When switch is on, it creates a connection in the
    circuit, and current can flow from battery to
    motor
  • Battery leads hooked up to the motor
  • Reverse the leads to make it spin in opposite
    direction

6
Industrial Aspect
  • Shell Materials
  • Light weight for ease of use
  • Plastic cost effective
  • Steel durable ridged
  • Shells designed to contain components
  • Battery Materials
  • Rechargeable alkaline battery
  • Interchangeable

7
Conclusion
  • Got tight corners?
  • Right angle screwdriver
  • Easy to use
  • Creates ease in hard to reach corners
  • A variety of bits for a variety of jobs
  • Great Christmas gift!
