Object Recognition Using Alignment

1

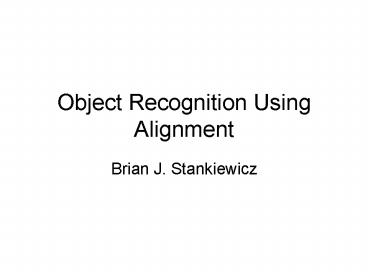

Object Recognition Using Alignment

• Brian J. Stankiewicz

2
Approaches to Human Object Recognition

• Alignment Approach
• Store image(s) in memory
• Use image transformations to bring new view into
  alignment with viewed image.

3
Approaches to Human Object Recognition

• Alignment Approach

Template matching Failures
4
Approaches to Human Object Recognition

• Alignment Approach

Many different exemplars of category of object.
How does one handle this type of variability?
5
Approaches to Human Object Recognition

• Structural Description
• Pre-process image before storing in memory
• Decompose object into simple parts
• Describe the objects shape in terms of their
  parts
• Parts are described using specific non-accidental
  properties

6
Structural Descriptions

• Objects are decomposed into parts.
• Objects are described by specifying configuration
  of parts and their relations.

7
Structural Descriptions

• Each part is describe by specifying the values of
  particular shape parameters.
• Varying parameter varies the shape.

8
Structural Descriptions

• Challenge.
• How do you decompose image into objects and
  objects into parts?
• How do you determine the shape parameters of a
  part given an image.
• This topic will be covered next week in Biederman
  and Biederman Cooper papers.

9
Today

• Begin by investigating the effect of viewpoint on
  object recognition.
• Look for evidence of alignment approach
• Shepard Metzler
• Mental rotation of 3d shapes
• Picture Plane and Depth rotations
• Tarr Pinker
• Mental rotation of 2d shapes
• Picture plane rotation only
• Multiple-Views Hypothesis

10
Shepard Metzler

• Wanted to understand how humans recognize
  different views of the same object.
• Different images of same 3D shape can be produced
  by manipulating viewpoint
• Investigated the effect of depth and
  picture-plane rotations.

11
Same/Different Paraidgm
12
Shepard Metzler Stimuli

• Novel stimuli Not a lot of previous experience
• Fairly difficult task
• Cannot simply use simple features
• Able to carefully control view information.

13
Shepard Metzler Procedure

• Two images presented simultaneously
• Images of identical or mirror reflected objects
• Subjects indicated whether two images depicted
  same object
• Responded by pulling a lever
• Record response times

14
Shepard Metzler Results

• Response times increased linearly with
  orientation
• Suggests that subjects are mentally rotating
  images to determine match.

RT To Same Responses
Angle of Rotation
15
Shepard Metzler Results

• Reaction times increased linearly with depth
  orientation
• Suggests a similar mechanism

16
Shepard Metzler Results

• Not only are both depth and picture-plane
  rotations linearly increasing, but they have very
  similar slopes.
• Suggestive of a single mental rotation
  mechanism.

17
Object recognition

• Two fundamental approaches to human object
  recognition
• Alignment approaches
• Object recognition through alignment process
• Structural description approach
• Decomposition of features included in an object
• Describe the objects shape in terms of their
  parts and relation among the parts.

18
What is alignment

• Definition
• A process that transform stored images to bring
  new view into alignment with viewed image.
• Why we need alignment?
• We cannot recognize object exactly only by
  template matching
• Need for some process which transform input
  images or data ? alignment

19
2 studies in alignment approaches

• Shepard Metzler
• Mental rotation of 3D objects shapes
• A single mental rotation mechanism
• Evidence same results from rotated depth and
  picture-plane pairs.
• Tarr Pinker
• Multiple view hypothesis (?)

20
Tarr Pinker

• Wanted to investigate mental rotation in more
  detail
• Two hypotheses
• Single canonical image stored in memory and all
  new images are aligned to that single
  representation
• Multiple-Views stored in memory.
• Align new view to closest stored view

21
Tarr Pinker Method

• Train subjects to recognize small set of novel,
  letter-like objects.
• Did a handedness task
• Is the image the trained image (standard)or its
  mirror reversal?

22
Tarr Pinker Stimuli

• Novel, letter-like images.
• Subjects trained on 3 of the images
• Reduce stimuli specific effects

23
Tarr Pinker Procedure

• Trained subjects on 4 different orientations
• (0,45,-90,135)
• Tested on trained and surprise orientations
• Measured response times

24
Tarr Pinker Exp. 1 Results
Block 112 practice Block 13 practice surprise
25
Tarr Pinker Exp. 1 Results
Compute best fittingline to compute slope
Surprise orientations required degree to be
rotated 90? 45 ?- 135? 45 ?- 45? 45
?but 180? 90?
4 different orientation- images stored in
memory?
26
Tarr Pinker Exp. 1 Results
High slope much rotation single canonical
27
Tarr Pinker Exp. 1 Summary

• Stimuli showed a similar result to previous
  findings
• Increased RT with disparate orientations from
  training
• Subjects showed improvement following training
• Even after training, subjects were slower on
  non-trained (intermediate) orientations

28
Tarr Pinker Exp. 2 Motivation

• Demonstrated an improvement in recognition times
  with training.
• Not a demonstration of canonical or multiple
  views.
• Experiment 2, train on a few orientations and
  test on multiple orientations.
• See if there is evidence for rotating to the
  nearest trained orientation.

29
Tarr Pinker Methods

• Similar to Experiment 1
• However, classification task rather than
  handedness task.
• Three objects Kip, Kef, Kor, and
  distractors
• Record response times

30
Tarr Pinker Exp. 2 Procedure

• Train on 3 orientations
• Test on multiple intervening orientations
• Look for rotation functions to nearest trained
  orientation

31
Tarr Pinker Exp. 2 Results
32
Tarr Pinker Exp. 2 Summary

• Investigated whether subjects show a linearly
  increasing RT to canonical view or closest
  trained view.
• Showed mixed evidence.
• For 0 and 210 it appears that there is a dip in
  the surrounding RTs
• Suggests rotation to nearest orientation
• For 105 no evidence of alignment.

33
Tarr Pinker Exp. 2 Results
34
Tarr Pinker Study 3

• Wanted to see if handedness played a role in
  recognition times.
• Experiment 1 showed effect for handedness
  judgment.
• Subjects might engage in handedness judgment
  unnecessarily.
• Trained on both standard and reversed images
• Tested on both set of images
• No handedness judgment required

35
Tarr Pinker Exp. 3 Results
36
- 45?
