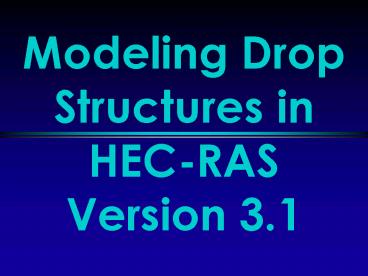

Modeling Drop Structures in HEC-RAS Version 3.1
2
Modeling Drop Structures
  • Overview
  • Modeling a Drop Structure as an Inline Structure
    (Weir).
  • Modeling a drop structure with cross-sections
    through the drop.
  • Example using Lab Data.

3
Overview
  • What is a Drop Structure?

4
Overview
  • Why do we use Drop Structures ?

5
Overview
6
Overview
7
Overview
8
Overview
9
Overview
10
Overview
11
Components of Drop Structure
  • Control Section
  • Energy Dissipation Section
  • Adjacent Protection

3 or 4 yb
Rectangular channel
yb 0.715 yc
subcritical
yc
yb
subcritical
stilling basinused to dissipate energy
12
Overview
  • How can we Model a Drop Structure with HEC-RAS ?
  • Inline Weir Option
  • Using Cross Sections

13
Overview
  • Which is more appropriate?
  • Inline Weir Option - probably better if just
    interested in elevations upstream and downstream
    of structure.
  • Using Cross Sections - better if interested in
    profile through the structure.

14
Cross-Section Locations
  • When placing cross-sections near and through a
    drop structure, they need to be placed where the
    water surface and velocity are changing rapidly
    (this applies when using an inline weir also).

15
Modeling a Drop Structure as an Inline Weir
  • The standard weir equation is used
  • where C 2.6 - 4.0 (dependent on shape)
  • L Length of weir
    H Upstream Energy Head

Q CLH3/2
16
Inline Weir - Submergence
Submergence is defined as H2/H1
17
Inline Weir - Submergence
18
Inline Weir - Cross Section Layout
Inline Weir Structure
6
Cross Sections
5
3
4
1
2
Model the floor blocks as blocked obstructions.
19
Modeling a Drop Structure as an Inline Structure
Under the Geometric Dataclick on Inline
Structure
20
Modeling a Drop Structure as an Inline Structure
A series of windows allow for entry of weir
characteristics
21
Modeling a Drop Structure with Cross Sections
Cross Sections
Model the floor blocks as blocked obstructions.
22
Cross Section Layout for Ogee Shapes Drop
Structure
Cross Sections
23
Modeling Baffles in the Stilling Basin
Increase n values at baffle blocks to account
for increased roughness
24
Example Using Lab Data
  • WES Physical Model Study (WES, 1994)

25
Example - Modeled as a Weir
Cross Sections
Inline Weir
26
Example - Modeled with Cross Sections Only
Cross Sections
27
Example - Comparison of Two Methods
28
Example - Comparison Zoomed In
29
