Title: Forces

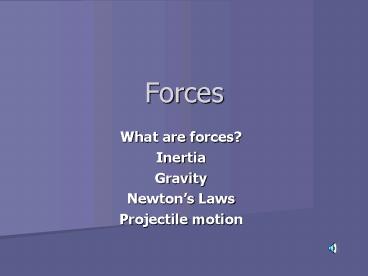

1
Forces
  • What are forces?
  • Inertia
  • Gravity
  • Newtons Laws
  • Projectile motion

2
FORCES
3
What is a force?
  • A push or a pull
  • May be unbalanced or balanced

4
What does a force do?
  • Gives energy to an object
  • Can set an object in motion, make it stop, or
    change its motion

5
Unbalanced forces change motion
6
Unbalanced forces change motion
The truck motion is changed, but the ladder keeps
going
7
Friction
  • A force which opposes motion, bringing objects to
    rest
  • Types

sliding
fluid
rolling
8
Inertia
9
Inertia
I have more inertia
  • The tendency of an object to stay at rest or in
    motion.
  • Objects with greater mass have greater inertia

but we fall at the same rate
10
Inertia keeps astronauts in motion
11
Seat belts protect against inertia
12
Gravity
13
Gravity
The attractive force between all objects in
the universe
14
  • More mass means greater gravity
  • More distance means less gravity

My gravitational attraction is small no matter
what the distance!
Massive objects have lots of gravity
15
The earth exerts a force on the student and the
student exerts a force on the earth because of
GRAVITY!
16
Gravity warps the fabric of space-time
17
Gravity
18
gravity pulls it in inertia keeps it going
What forces are acting on the moon?
Inertia
19
Newtons Laws of Motion
  • 1. Inertia
  • 2. Fma
  • 3. Action-reaction

20
Newtons First Law of Motion
  • The law of inertia
  • An object at rest stays at rest
  • an object in motion stays in motion
  • unless acted upon by an outside force.

21
Inertia keeps astronauts in motion
22
Inertia keeps satellites in orbit
23
Inertia keeps you at rest
24
Newtons Second Law of Motion
  • Force Mass x acceleration
  • A force is needed for acceleration
  • Acceleration will occur in the direction of the
    force.

25
Which cars are accelerating?
  • If you watch carefully, the green and blue cars
    are accelerating. The red car is traveling at
    constant speed.

26
A force is needed for acceleration
  • Will these accelerate?
  • A skier going downhill?
  • What force is acting on
  • the skier?
  • An astronaut on a
  • spacewalk?
  • Are any forces acting
  • on the astronaut?

27
Which of the following will
accelerate?
  • A bullet shot from
  • a gun?
  • What forces are
  • acting on the
  • bullet?
  • A hammer and
  • feather dropped on
  • the moon?
  • What force is acting?

28
Newtons 2nd Law
Force mass x acceleration
  • F_____
  • M A
  • Force is measured in newtons. A newton is a
    kg m
  • s2
  • Example A car with mass 1000kg hits a tree and
    decelerates at 50m/s/s. What force does it exert
    on the tree?

29
Answer
  • F_____
  • M A
  • 1000kg 50m/s/s
  • 50,000 kgm or 50,000N
  • s2

30
F ma
  • A car is traveling at constant speed. Is a force
    acting on it?
  • Answer although there are forces acting on the
    car (gravity, friction, air resistance,etc)
    since there is no acceleration, the net force in
    the direction of motion must be zero.

31
More 2nd Law Problems
  • 1. What is the acceleration on a mass of 50kg if
    a force of 10N is applied?
  • 2. An object accelerates due to gravity at a
    rate of 10m/s/s. If its mass is 15kg, what force
    is acting on the mass?

32
Answers
  • _F_
  • M A
  • 1. _10N_ 0.2 n/kg 0.2 kg m 0.2 m/s2
  • 50kg A s2/kg
  • 2. F______
  • 15kg 10m/s2
  • 150 kgm/s2 or
    150N

33
Gravity is a force that causes an acceleration
  • On earth, ALL objects accelerate at 9.8m/s2
    (ignoring air resistance) because of gravity.
  • No matter what the mass, ALL objects on earth
    accelerate at 9.8 m/s2

34
(No Transcript)
35
Free fall without air resistance
Both the elephant and the feather land at the
same time!
36
Free fall with air resistance
The feather takes lots longer to hit the ground!
37
Newtons Third Law
  • For every action, there is an equal and opposite
    reaction

38
(No Transcript)
39
For every action, there is an equal and opposite
reaction
  • In rocketry

The gases being expelled is the action. The
rocket propelling forward is the reaction.
40
(No Transcript)
41
(No Transcript)
42
How do Newtons laws describe the motorcycle
rider?
  • 1st Inertia keeps the rider moving forward.
  • 2nd The force with which the rider hits the
    ground will be equal to his mass times his
    deceleration.
  • 3rd The action of hitting the ground will equal
    the reaction of the dirt.

43
Projectile motion
44
Projectile motion
  • An object moves forward due to inertia and
    accelerates downward due to gravity.

45
Projectile motion of a ball fired vertically
The motion of the truck causes the ball to
project forward.
What would happen if the truck stopped?
46
In this video, the ball is dropped straight down
and moves forward due to inertia
47
Package dropped from plane
The forward motion of the plane causes the
package to land in front of where its dropped.
48
Monkey in gravity-free environment
49
With gravity- monkey lets go when banana is fired
50
with gravity- cannon shoots at slow speed
51
Satellites
Projectile with no gravity
with gravity- launched at lt 8000m/s
with gravity- launched at gt 8000 m/s
52
The End
