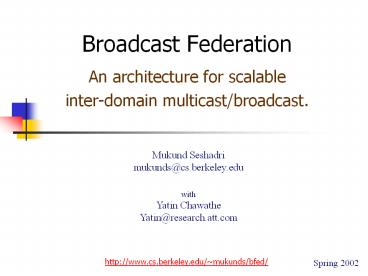

Broadcast Federation

• An architecture for scalable
• inter-domain multicast/broadcast.

Mukund Seshadri mukunds_at_cs.berkeley.edu
with Yatin Chawathe Yatin_at_research.att.com
http//www.cs.berkeley.edu/mukunds/bfed/
Spring 2002
2
Motivation

• One-to-many or many-to-many applications
• e.g. Internet live audio/video broadcast
• No universally deployed multicast protocol.
• IP Multicast
• Limited Scalability (due to router state or
  flooding nature)
• Address scarcity
• Need for administrative boundaries.
• SSM - better semantics and business model, still
  requires smart network.
• Overlays - Application-level routers form an
  overlay network and perform multicast forwarding.
• Less efficient, but easier deployability
• Maybe used in CDNs (Content Distribution
  Networks) for pushing data to edge
• Heavy duty edge servers replicate content

3
Goals

• Design an architecture for the composition of
  different, non-interoperable multicast/broadcast
  domains to provide an end-to-end one-to-many
  packet delivery service.
• Design and implement a high performance
  (clustered) broadcast gateway for the above
  architecture

4
Requirements

• Intra-domain protocol independence (both
  app-layer and IP-layer)
• Should be easily customizable for each specific
  multicast protocol.
• Scalable (throughput, number of sessions)
• Should not distribute info about sessions to
  entities not interested in those sessions.
• Should use available multicast capability
  wherever possible.

5
Basic Design
Source

• Broadcast Network (BN) any multicast capable
  network/domain/CDN)
• Broadcast Gateway (BG)
• Bridges between 2 BNs
• Explicit BG peering
• Overlay of BGs
• Analogous to BGP routers.
• App-level
• For both app-layer and IP-layer protocols
• Less efficient link usage, and more delay
• Commodity hardware
• Easier customizability and deployability
• Inefficient hardware

Clients
BG
BN
Peering
Data
6
Naming

• Session ?? Owner BN
• Facilitates shared tree protocols
• Address space limited only by individual BNs
  naming protocols.
• Session Description
• Owner BN
• Session name in owner BN
• Options
• Metrics hop-count, latency,bandwidth, etc.
• Transport best-effort, reliable, etc.
• Number of sources single, multiple.
• URL style-
• bin//Owner_BN/native_session_name?pmtrvaluepmt
  r2value2

7
B-Gateway components

• 3 loosely coupled components
• Routing for shortest unicast routes towards
  sources
• Tree building for shortest path distribution
  tree.
• Data forwarding to send data efficiently across
  tree edges.
• NativeCast interface interacts with local
  broadcast capability

8
Routing

• Peer BGs exchange BN/BG level reachability info
• Path vector algorithm
• Different routes for different metrics/options
• e.g. BN-hop-count best-effortmulti-source,
  latencyreliable, etc.
• Session-agnostic
• Avoids all BNs knowing about all sessions.
• BG-level selectivity available using SROUTEs.
• Policy hooks can be applied to such a protocol.

9
Distribution Trees

• One reverse shortest path-tree per session
• Tree rooted at owner BN.
• Soft BG tree state(Session Upstream node
  list of downstream nodes)
• Can be bi-directional
• Fine-grained selectivity using SROUTE messages
  before JOIN phase.

10
Mediator

• How does a client tell a BG that it wants to join
  a session?
• Client in owner BN ? no interaction with the
  federation.
• Client not in owner BN ? needs to send JOIN to a
  BG in its BN.
• BNs are required to implement the Mediator
  abstraction, for sending JOINs for sessions to
  BGs.
• Modified clients which send JOIN to BGs
• Well-known Mediator IP Multicast group.
• Routers or other BN-specific aggregators
• Can be part of the NativeCast interface.

11
Data Forwarding
Source
(S1LP2)
P1

• Decouples control from data
• control nodes from data nodes.
• TRANSLATION messages carry data path addresses
  per session
• e.g. TCP/UDP/IP Multicast addressport.
• e.g. a transit SSM network might require 2
  channels to be setup for one session.
• Label negotiation, for fast forwarding.
• Can be piggy-backed on JOINs

UDPIP2,Port2
UDPIP1,Port1
(S1P1L)
P2
IPMIPm1,Portm1
IPMNull
C1
IPMNull
P3
IPMIPm1,Portm1
12
Clustered BG design

• 1 Control noden Data nodes.
• Control node ?routing tree-building.
• Independent data paths ? flow directly through
  data nodes.
• TRANSLATION messages contain IP addresses of data
  nodes in the cluster.
• Throughput bottlenecked only by the IP
  router/NIC.
• Soft data-forwarding state at data nodes.

13
NativeCast

• Encapsulates all BN-specific customization
• Interface to local broadcast capability
• Send and Receive broadcast data
• Allocate and reclaim local broadcast addresses
• Subscribe to and unsubscribe from local broadcast
  sessions
• Implement Mediator functionality intercept
  and reply to local JOINs
• Get SROUTE values.
• Exists on control and data nodes.

14
Implementation

• Linux/C event-driven program
• Best-effort forwarding.
• NativeCast implemented for IP Multicast, a simple
  HTTP-based CDN and SSM.
• Each NativeCast implementation 700 lines of
  code.
• Tested scalability of clustered BG (throughput,
  sessions) using HTTP-based NativeCast.
• Used Millennium cluster.

15
Experimental Setup

• No. of sources no. of sinks no. of Dnodes.
  (so that sources/sinks dont become bottleneck).
• 440Mbps raw TCP throughput.
• 500MHz PIIIs 1 Gbps NICs.
• gt50Gbps switch.
• Sources of two types rate-limited,and unlimited.

• Note IPMul is based on UDP CDN is based on
  HTTP (over TCP).

16
Results

• Vary number of data nodes, use one session per
  data node.
• Near-linear throughput scaling.
• Gigabit speed achieved.
• Better with larger message size.

Note maximum (TCP-based) throughput achievable
using different data message (framing) sizes is
shown above.
17
Multiple Sessions

• Variation of total throughput when no. of
  sessions is increased to several sessions per
  Dnode shown. The sources are rate-unlimited.
• High throughput is sustained when no. of sessions
  is large.

With 1 Dnode
With 5 Dnodes
18
Multiple Sessions

• Rate-limited sources (lt103Kbps).
• 5 Dnodes, 1 KB message size.
• No significant reduction in throughput.

19
Future Work

• Achieve large number of sessionshigh throughout
  for large message sizes.
• Transport-layer modules (e.g. SRM local
  recovery).
• Wide area deployment?

20
Links

• Broadcast Federation An Application Layer
  Broadcast Internetwork Yatin Chawathe, Mukund
  Seshadri (NOSSDAV02)
• http//www.cs.berkeley.edu/mukunds/bfed/nossdav0
  2.ps.gz
• This presentation
• http//www.cs.berkeley.edu/mukunds/bfed/bfed-re
  treat.ppt

21
Extra Slides
22
SROUTEs
Source

• are session-specific routes to source in the
  owner BN
• All BGs in owner BN know all SROUTEs for owned
  sessions.
• SROUTE-Response gives all SROUTEs.
• Downstream BGs can cache this value to reduce
  SROUTE traffic.
• Downstream BG(s) compute best target BG in owner
  BN and send JOINs towards that BG.
• JOINs contain SROUTEs received earlier.
• Session info sent only to interested BNs.
• Increases initial setup latency

Phase 1
Phase 2
Client
JOIN
BG
SROUTE-Request
BN
SROUTE-Response
REDIRECT
Peering
TRANSLATION
23
More Results

• Varied data message size from 64 bytes to 64 KB.
• 1 Dnode
• Clearly, higher message sizes are better
• Due to forwarding overhead memcpys, syscalls,
  etc.

24
Some More Results

• Used 796 MHz PIIIs as Dnodes.
• Varied no.of Dnodes, single session per Dnode.
• Achieved Gigabit-plus speeds with 4 Dnodes.
