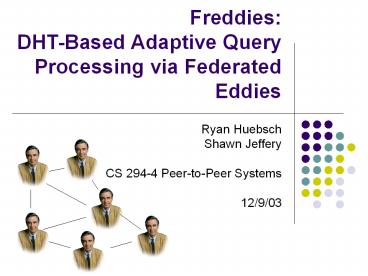

Freddies: DHT-Based Adaptive Query Processing via Federated Eddies

1
Freddies DHT-Based Adaptive Query Processing
via Federated Eddies

• Ryan Huebsch
• Shawn Jeffery
• CS 294-4 Peer-to-Peer Systems
• 12/9/03

2
Outline

• Background PIER
• Motivation Adaptive Query Processing (Eddies)
• Federated Eddies (Freddies)
• System Model
• Routing Policies
• Implementation
• Experimental Results
• Conclusions and Continuing Work

3
PIER

• Fully decentralized relational query processing
  engine
• Principles
• Relaxed consistency
• Organic Scaling
• Data in its Natural Habitat
• Standard Schemas via Grassroots software
• Relational queries can be executed in a number of
  logically equivalent ways
• Optimization step chooses the best
  performance-wise
• Currently, PIER has no means to optimize queries

4
Adaptive Query Processing

• Traditional query optimization occurs at query
  time and is based on statistics. This is hard
  because
• Catalog (statistics) must be accurate and
  maintained
• Cannot recover from poor choices
• The story gets worse!
• Long running queries
• Changing selectivity/costs of operators
• Assumptions made at query time may no longer hold
• Federated/autonomous data sources
• No control/knowledge of statistics
• Heterogeneous data sources
• Different arrival rates
• Thus, Adaptive Query Processing systems attempt
  to change execution order during the query
• Query Scrambling, Tukwila, Wisconsin, Eddies

5
Eddies

• Eddy A tuple router that dynamically chooses the
  order of operators in a query plan
• Optimize query at runtime on a per-tuple basis
• Monitors selectivities and costs of operators to
  determine where to send a tuple to next
• Currently centralized in design and
  implementation
• Some other efforts for distributed Eddies from
  Wisconsin Singapore (neither use a DHT)

6
Why use Eddies in P2P? (The easy answers)

• Much of the promise of P2P lies in its fully
  distributed nature
• No central point of synchronization ? no central
  catalog
• Distributed catalog with statistics helps, but
  does not solve all problems
• Possibly stale, hard to maintain
• Need CAP to do the best optimization
• No knowledge of available resources or the
  current state of the system (load, etc)
• This is the PIER Philosophy!
• Eddies were designed for a federated query
  processor
• Changing operator selectivities and costs
• Federated/heterogeneous data sources

7
Why Eddies in P2P? (The not so obvious answers)

• Available compute resources in a P2P network are
  heterogeneous and dynamically changing
• Where should the query be processed?
• In a large P2P system, local data distributions,
  arrival rates, etc. maybe different than global

8
Freddies Federated Eddies

• A Freddy is an adaptive query processing operator
  within the PIER framework
• Goals
• Show feasibility of adaptive query processing in
  PIER
• Build foundation and infrastructure for smarter
  adaptive query processing
• Establish baseline for Freddy performance to
  improve upon with smarter routing policies

9
An Example Freddy
R join S
S join T
Put (Join Value RS)
Local Operators
Put (Join Value ST)
To DHT
Freddy
Output
Get(R)
Get(T)
Get(S)
R S T
From DHT
10
System Model

• Same functionality as centralized Eddy
• Allows easy concept reuse
• Freddy uses its Routing Policy to determine the
  next operator for a tuple
• Tuples in a Freddy are tagged with DoneBits
  indicating which operators have processed it
• Freddy does all state management, thus existing
  operators require no modifications
• Local processing comes first (in most cases)
• Conserve network bandwidth
• Not as simple as it seems
• Freddy decide how to rehash a tuple
• This determines join order
• Challenge Decoupling of routing decision and
  operator. Most Eddy techniques no longer valid

11
Query Processing in Freddies

• Query origin creates a query plan with a Freddy
• Possible routings determined at this time, but
  not the order
• Freddy operators on all participating nodes
  initiate data flow
• As tuples arrive, the Freddy determines the next
  operator for this tuple based on the DoneBits and
  routing policy
• Source tuples tagged with clean DoneBits and
  routed appropriately
• When all DoneBits are set, the tuple is sent to
  the output operator (return to query origin)

12
Tuple Routing Policy

• Determines to which operator to send a tuple
• Local information
• Messages expensive
• Monitor local usage and adjust locally
• Processing Buddy information
• During processing, discover general trends in
  input/output nodes processing capabilities/output
  rates, etc
• For instance, want to alert previous Freddy of
  poor PUT decisions
• Design space is huge ? large research area

13
Freddy Routing Policies

• Simple (KISS)
• Static
• Random Not as bad as you may think
• Local Stat Monitoring (sampling)
• More complex
• Queue lengths
• Somewhat analogous to the back-pressure effect
• Monitors DHT PUT ACKs
• Load balancing through learning of global join
  key distribution
• Piggyback stats on other messages
• Dont need global information, only stats about
  processing buddies (nodes with which we
  communicate)
• Different sample than local may or may not be
  better

14
Implementation Experimental Setup

• Design Decisions
• Simplicity is key
• Roughly 300 of NCSS (PIER is about 5300)
• Single query processing operator
• Separate routing policy module loaded at query
  time
• Possible routing orders determined by simple
  optimizer
• Required generalizations to the PIER execution
  engine to deal with generic operators
• Allow PIER to run any dataflow operator
• Simulator with 256 nodes, 100 tuples/table/node
• Feasibility, not scalability
• In the absence of global (or stale) knowledge, a
  static optimizer could chose any join ordering ?
  we compare Freddy performance to all possible
  static plans

15
3-way join

• R join S join T
• R join S is highly selective (drops 90)
• S join T is expensive (multiples tuple count by
  25)
• Possible static join orderings

T
R
R
S
S
T
16
3 Way Join Results
17
4-way join

• R join S join T join U
• S join T is still expensive
• Possible static join orderings

U
R
U
R
T
U
R
S
R
S
S
T
S
T
T
U
Note A traditional optimizer cant make this plan
R
S
T
U
18
4-Way Join
19
The Promise of Routing Policy

• Illustrative example of how routing policy can
  improve performance
• This not meant to be an exhaustive comparison of
  policies, rather to show the possibilities
• EddyQL considers number of outstanding PUTs
  (queue length) to decide where to send

20
Conclusions andContinuing Work

• Freddies provide adaptable query processing in a
  P2P system
• Require no global knowledge
• Baseline performance shows promise for smarter
  policies
• In the future
• Explore Freddy performance in a dynamic
  environment
• Explore more complex routing policies

21
Questions? Comments? Snide remarks for
Ryan?Glorious praise for Shawn?
Thanks!
