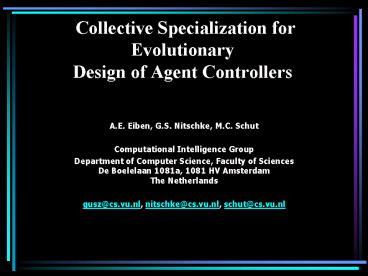

Collective Specialization for Evolutionary Design of Agent Controllers

1
Collective Specialization for Evolutionary
Design of Agent Controllers

• A.E. Eiben, G.S. Nitschke, M.C. Schut
• Computational Intelligence Group
• Department of Computer Science, Faculty of
  SciencesDe Boelelaan 1081a, 1081 HV Amsterdam
  The Netherlands
• gusz_at_cs.vu.nl, nitschke_at_cs.vu.nl, schut_at_cs.vu.nl

2
Introduction

• Challenge Developing agent controllers for a
  group of simulated aerial explorers.
• Task Search and find (collective gathering)
  missions.
• 1st goal Demonstrate that specialization
  (behavior exhibited at agent group level) is
  beneficial for this task.
• 2nd goal Use neuro-evolution as an adaptive
  mechanism to derive specialization (to increase
  task performance).
• Compare Heuristic benchmark methods and other
  adaptive methods with respect to specialized
  behavior in given task.

3
Background

• Collective behavior systems Where behavior or
  morphology (or both) is specialized increases
  efficiency and performance in many collective
  behavior tasks.
• Neuro-evolution An approach that combines neural
  networks and evolutionary computation techniques.
• Neuro-evolution collective behavior applications
  RoboCup, multi-agent computer games, and
  multi-robot system controllers.

4
Hypotheses
Hypothesis 1 There exist particular types of
environments where specialization increases task
performance. Hypothesis 2 The collective
specialization neuro-evolution method is
appropriate for deriving specialized groups that
yield a high task performance.
5
Adaptive MethodsConventional Neuro-Evolution

• One genotype population (evolved offline)

• Genotype Population 1000 neurons
• Each tested in complete controller (9 other
  neurons)
• All neurons evaluated before recombination
• Best 20 of neurons selected (each cloned 5
  times) to replace population
• End of 100 test scenarios Best 20 of neurons
  selected as controllers (cloned 5 times) to run
  in full simulation

6
Adaptive MethodsCollective Neuro-Evolution

• N genotype populations (evolved online)

• 100 genotype populations of 100 neurons
• 10 neurons randomly selected from best 20 of a
  population ? controller
• Mutation (Cauchy distribution) applied to best
  20, each cloned 5 times to replace current
  population
• Agent controllers updated when agent received
  fitness reward

7
Experimental Setup

• Agent Group 100 explorers 1 Lander (recharge
  station)
• Environment Discrete
• 200 x 200 x 200 voxels
• 40000 red rocks

Task Maximize number of features of interest
(red rocks) discovered, given U energy, T time,
to complete task.
8
Experimental Setup (cont.)

• Non-Adaptive experiment set
• Specialized Agent Groups
• Non-Specialized Agent Groups
• Adaptive experiment set
• Conventional Neuro-Evolution
• Collective Neuro-Evolution

9
Experimental Setup (cont.)

• Test environments
• 10 distributions (ranging from low to high
  structure of red rocks)
• 4 clusters (fixed positions), with radius r
  (variable) used Gaussian mixture model data
  generator (Paalanen and Kälviäinen, 2006)

1 Unstructured
10 Structured
10
Agent Design Sensors and Actuators

• Agent types classified according to
  probabilities to select one of four actions a
  Detect, b Evaluate, c Move, d Communicate

Where ? ( a, b, c, d ) 1.0
a Detect (sensor) b Evaluate
(sensor) c Move (actuator)
d Communicate (actuator)

• Battery 1000 units Cost 1 unit / sensor or
  actuator use

• Energy Rewards (Adaptive and Non-Adaptive
  experiments)
• Equal to number of red rocks discovered x
  Scalar (Given as recharge at Lander)
• Fitness Rewards (Adaptive Experiments)
• Equal to number of red rocks discovered (used
  by evolution selection process)

11
Adaptive Methods Agent Neural Controller
0..6 Non-Visual Neurons Nodes 1-4 Previous
motor output values (MO0 - MO3) Node 5 Ambient
wind Node 6 Ambient light Node 7 Previous
red rock evaluation
7..55 Visual Neurons Detection sensor
resolution (encoded in genotype) Each visual
neuron represents a voxel on ground z
plane Higher resolution ? Lower probability of
detection success
12
Non-Adaptive Methods Defining agent types

• At the individual level Specialized agent
  types

• Action Preferences set a priori and remained
  static throughout a simulation run.

13
Non-Adaptive Methods Non-specialized groups

• At the group level Specialized group types

• At the group level Non-Specialized group types

14
Results
Adaptive methods Neuro-evolution comparison
Non-adaptive methods benchmarks
15
Results (cont).

• Results from heuristic and neuro-evolution
  methods Conformed to normal distributions
  (Kolmogorov-Smirnov test applied).
• T-test applied Specialized and non-specialized
  heuristic results. Null hypothesis (two data
  sets not significantly different) was rejected.
  Supported 1st hypothesis specialization is
  advantageous (increases task performance) in
  certain environment types.
• T-test applied Comparative neuro-evolution
  results. Null hypothesis was rejected. Partially
  supported 2nd hypothesis collective
  neuro-evolution would yield a (relatively) higher
  task performance.
• Supporting 2nd hypothesis Compared the best
  performing specialized heuristic method, and
  specialization (composition of agent types in
  group) derived by collective neuro-evolution
  method.

16
Results (cont.)

• Group Composition best performing specialized
  non-adaptive group

• Group Composition best performing evolved
  groups
• RRVG Red Rock Value Gathered
• DoS Degree of Structure
• (Test environment type)

17
Conclusions

• Supporting 1st hypothesis Heuristic
  pre-designed specialization methods showed that
  specialization was beneficial in a range of test
  environments (defined by different resource
  distributions)
• Supporting 2nd hypothesis Collective
  neuro-evolution method yielded a higher
  performance (in all test environments),
  comparative to a conventional neuro-evolution
  method
• Collective neuro-evolution Best performing
  group converged to a specialized group
  composition (majority of the agents assumed one
  role). Resembled group composition of highest
  performing pre-designed (heuristic) specialized
  group

18

• ?

19
Experimental Setup (Adaptive Experiments)

• Collective (online) Neuro-Evolution
• Generations Evolutionary operator applied to
  agent controller each time fitness reward
  received.
• Conventional (offline) Neuro-Evolution
• Offline testing phase n test scenarios (250
  iterations) testing n genotypes.
• End of testing phase best 20 of genotypes
  selected, 5 clones of each, corresponding
  phenotypes placed into task environment.
• Generations At the end of a testing scenario
  the fittest 20 (elite portion) of genotypes were
  recombined and mutated producing 5 offspring each
  so as to replace the entire genotype population.
  Next test scenario then began with the next
  generation of genotypes.
