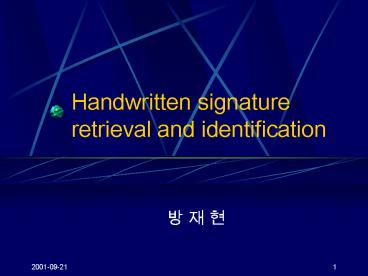

Title: Handwritten signature retrieval and identification


1
Handwritten signature retrieval and identification
  • ? ? ?

2
? ?
  • Introduction
  • Signature representation,indexing and matching
  • Detailed system description
  • Performance results
  • Future research

3
Introduction
query
Image database
Input image
Requirement (within some specified similarity
measure)
Requirementinformation is added
??1. Flow of Similarity retrieval of images
4
  • Similarity retrieval of images has two
    components(1) What should be the measure of
    similarity?(2) How should similar images be
    identified?
  • Two components are the issue of image
    representation,indexing and matching so that
    images similar to query image can be retrieved
    without excessively searching the image database.
  • The aim of this paper is to address these issues
    in the context of database of handwritten
    signature images

5
2.Signature representation,indexing and matching
Three component of the signature identification
system
Signature representation Search
organization(indexing) Match scheme
6

2-1 Signature representation
  • Requires the transformation of a signature image
    into a compact and meaningful description through
    the extraction of certain features.
  • In our approach, the signature description is
    obtained by first extracting a set of geometric
    and topologic features from a signature image.

7
  • The geometric features horizontal bars,
    vertical bars, and loops
  • The topologic features end points, branch
    points, crossing points, convex points, and
    concave points.

8
2-2 search organization (the indexing scheme)
  • Based on the string hashing version
  • for example a group of k, k lt n,.
  • Through overlapping, n-k1 local associations
    for a string of length n
  • Each local association is then hashed through a
    suitable perfect hashing function to generate a
    hash address in a hash index table which stores a
    pointer to a linked list of signature images

9
2-3 the matching
  • 2D string is used to take into account the
    2-dimensional spatial relationships of the
    different features present in a signature.
  • The matching criterion used is the longest common
    subsequence(LCS) shared by the two 2D strings.
  • After matching the most similar signature found
    in the DB is sent to a final decision process to
    decide whether the identity of the query
    signature is accepted or rejected.
  • By checking the match score against a predefined
    threshold value

10
?? 2 A SAMPLE HASH INDEX TABLE
11
3.Detailed system description
Enrollment identification
Input Signature Image
Preprocessing
Image Storage / Retrieval
Matching and Identification
Feature Extraction
Image Database
Signature identity
Normalization and Feature Mapping
12
(a) A query image
This image will be used in our descriptionto
illustrate different processing stages.
13
(b) Preprocessing
  • Threshold binary image
    Thinned signature

Background subtraction Thresholding Noise
cleaning Gap filling Thinning
14
(c) Geometric features
  • Include horizontal bars, vertical bars and loops
  • Horizontal and vertical bars are extracted from
    the binary image of the signature using the
    morphological hi-or-miss operation
  • The loops are extracted from the skeleton image
    of the signature using the 4-connected component
    labeling algorithm

15
(d)Topological features
  • The set of topologic features consists of end
    points,branch points, crossing points, convex
    points, and concave points.

End points
16
Branch points and Crossing points
Suggested by Simon and Zerhoumi(1991),Simon and
Baret(1992),Simon(1992)
17
Concave and Convex
Use the off-line tracing algorithm suggested by
Lee and Pan(1992) And the sailent curve-point
selection algorithm by Fischler and Wolf (1994)
18
(e) All the features
  • This map shows the feature map of the example
    signature image by indicating all the detected
    features in it.
  • All the detected features are represented as
    points
  • Ex) a loop feature is represented by a point at a
    position that corresponds to the center of the
    loop.
  • Ex) a detected horizontal/vertical bar feature is
    represented by its two end point.

19
(f) Feature Normalization Feature mapping
mapping
20
(g) Enrollment phase identification
phase
  • In the enrollment phase,The local associations of
    the representation of the input signature are
    hashed to generate addresses to set up the
    reference signature image database.
  • In the identification phase, the local
    associations of the representation of the query
    signature are mapped into the hash index tables
    to vote for candidate signatures to be retrieved.

21
  • To perform indexing, a perfect hashing function
    is used to map the X string and Y string of the
    representation of a signature into two hash index
    tables,
  • h(P) Si2 62 Si1 61 Si 60
  • ( 1 lt i ltn-2 )
  • where h(P) is the hashing address,
  • P is the X string or the Y string,
  • Si2, Si1, Si are the three consecutive
    coding numerals in P according to table.
  • n is the length of P.

22
(h) Signature retrieval stage
  • An accumulator array is used to record the voting
    results generated by the query signature.
  • For each hash address, the corresponding linked
    list votes for the corresponding signature.
  • After voting, the accumulator array records the
    voting numbers of all the signatures in the DB.
  • The top-three vote-getting signatures in the two
    hash tables are selected to form the candidate
    set of signatures which are retrieved from the DB
    for matching and identification.

23
(i) In the matching and identification
  • the 2D string LCS is used as a measurement of
    similarity between the query signature and a
    retrieved candidate signature.
  • The candidate signature yielding the longest LCS
    is considered most similar to the query image

24
4. Performance results
  • Based on two sets of 120 signatures the
    reference set of signatures the test set of
    signatures
  • No constraints, Each signer was asked for two
    signatures written on the paper, Digitized by a
    CCD camera, OS unix ,Implementation is C and
    C
  • These experiments included testing the system
    with partial query signatures. The partial query
    signatures were generated by masking the already
    collected test signatures.

25
(No Transcript)
26
The performance of the system
  • The average number of candidate signature
    retrieved for every query image
  • indicates the quality of the features as
    well as the local associative indexing scheme.
  • for discriminatory features and good
    indexing,
  • the average number of candidate signatures
    retrieved should be small.
  • Hit ratio
  • how many times the signature of correct
    identity was retrieved as a member of the
    candidate set.

27
  • 3. Recognition rate
  • capability to identify a signature correctly.
  • this results are for different amounts of
    query signature masking.
  • in each case, the results are presented for
    three threshold settings.

28
5. Future research
  • The use of multiple signatures per signer in the
    database to improve recognition and rejection
    rates
  • The use of the signature slant and size
    information to group signatures for a
    hierarchical organization of the signature
    database

29
Threshold 20 mask
