Title: Windows Heap Exploitation Win2KSP0 through WinXPSP2


1

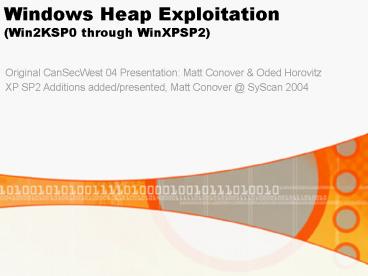

Windows Heap Exploitation(Win2KSP0 through
WinXPSP2)
Original CanSecWest 04 Presentation Matt Conover
Oded Horovitz XP SP2 Additions added/presented,
Matt Conover _at_ SyScan 2004
2
Agenda
  • Practical Windows heap internals
  • How to exploit Win2K WinXP SP1 heap overflows
  • 3rd party (me ?) assessment of WinXP SP2
    improvements
  • How to exploit WinXP SP2 heap overflows
  • Summary

3
Windows Heap Internals
  • Many heaps can coexist in one process (normally
    2-3)

PEB
Default Heap
2nd Heap
4
Windows Heap Internals
  • Important heap structures

Segments
Segment List
Virtual Allocation list
Free Lists
Lookaside List
5
Windows Heap Internals
  • Introduction to Free Lists
  • 128 doubly-linked list of free chunks (from 8
    bytes to 1024 bytes)
  • Chunk size is table row index 8 bytes
  • Entry 0 is a variable sized free lists contains
    buffers of 1KB lt size lt 512KB, sorted in
    ascending order

1400
2000
2000
2408
16
16
48
48
6
Windows Heap Internals
  • Lookaside Table
  • Used for fast allocates and deallocates when
    available
  • Starts empty
  • 128 singly-linked lists of busy chunks (free but
    left marked as busy)

16
48
48
7
Windows Heap Internals
  • Why have lookasides at all? Speed!
  • Singly-linked
  • Used to quickly allocate or deallocate
  • No coalescing (leads to fragmentation)
  • So the lookaside lists fill up quickly (4
    entries)

8
Windows Heap Internals
  • Basic chunk structure 8 Bytes

Overflow direction
9
Windows Heap Internals
  • Free chunk structure 16 Bytes

Previous chunk size
Self Size
Segment Index
Flags
Unused bytes
Tag index (Debug)
Next chunk
Previous chunk
10
Windows Heap Internals
  • Allocation algorithm (high level)
  • If size gt 512K, virtual memory is used (not on
    heap)
  • If lt 1K, first check the Lookaside lists. If
    there is no free entries on the Lookaside, check
    the matching free list
  • If gt 1K or no matching entry was found, use the
    heap cache (not discussed in this presentation).
  • If gt 1K and no free entry in the heap cache, use
    FreeLists0 (the variable sized free list)
  • If still cant find any free entry, extend heap
    as needed

11
Windows Heap Internals
  • Allocate algorithm FreeLists0
  • This is usually what happens for chunk sizes gt 1K
  • FreeLists0 is sorted from smallest to biggest
  • Check if FreeLists0-gtBlink to see if it is big
    enough (the biggest block)
  • Then return the smallest free entry from free
    list0 to fulfill the request, like this
  • While (Entry-gtSize lt NeededSize)
  • Entry Entry-gtFlink

12
Windows Heap Internals
  • Allocate algorithm Virtual Allocate
  • Used when ChunkSize gt VirtualAlloc threshold
    (508K)
  • Virtual allocate header is placed on the
    beginning of the buffer
  • Buffer is added to busy list of virtually
    allocated buffers (this is what Halvars
    VirtualAlloc overwrite is faking)

13
Windows Heap Internals
  • Free Algorithm (high level)
  • If the chunk lt 512K, it is returned to a
    lookaside or free list
  • If the chunk lt 1K, put it on the lookaside (can
    only hold 4 entries)
  • If the chunk lt 1K and the lookaside is full, put
    it on the free list
  • If the chunk gt 1K put it on heap cache (if
    present) or FreeLists0

14
Windows Heap Internals
  • Free Algorithm Free to Lookaside
  • Free buffer to Lookaside list only if
  • The lookaside is available (e.g., present and
    unlocked)
  • Requested size is lt 1K (to fit the table)
  • Lookaside is not full yet (no more than 3
    entries already)
  • To add an entry to the Lookaside
  • Put to the head of Lookaside
  • Point to former head of Lookaside
  • Keep the buffer flags set to busy (to prevent
    coalescing)

15
Windows Heap Internals
  • Free Algorithm Coalesce

Step 1 Buffer free
Step 2 Buffer removed from free list
Step 3 Buffer removed from free list
A B Coalesced
A B C Coalesced
Step 4 Buffer placed back on the free list
16
Windows Heap Internals
  • Free Algorithm Coalesce
  • Where coalesce cannot happen
  • Chunk to be freed is virtually allocated
  • Chunk to be freed will be put on Lookaside
  • Chunk to be coalesced with is busy
  • Highest bit in chunk flags is set

17
Windows Heap Internals
  • Free Algorithm Coalesce (cont)
  • Where coalesce cannot happen
  • Chunk to be freed is first ? no backward
    coalesce
  • Chunk to be freed is last ? no forward coalesce
  • The size of the coalesced chunk would be gt 508K

18
Windows Heap Internals
  • Summary Questions?
  • Just remember
  • Lookasides are allocated from and freed to before
    free lists
  • FreeLists0 is mainly used for 1K lt ChunkSize lt
    512K
  • Coalescing only happens for entries going onto
    FreeList, not lookaside list
  • Entries on a certain lookaside will stay there
    until they are allocated from

19
Heap Exploitation Basic Terms
  • 4-byte Overwrite
  • Able to overwrite any arbitrary 32-bit address
    (WhereTo) with an arbitrary 32-bit value
    (WithWhat)
  • 4-to-n-byte Overwrite
  • Using a 4-byte overwrite to indirectly cause an
    overwrite of an arbitrary-n bytes

20
Arbitrary Memory Overwrite Explained
  • Coalesce-On-Free 4-byte Overwrite
  • Utilize coalescing algorithms of the heap
  • This is the method first discussed by Oded and I
    at CSW04 it is our preferred method for
    reliable heap exploitation on all versions lt
    XPSP2
  • Just make sure to fill the LookasideChunkSize
    (put 4 entries on heap) before freeing a chunk of
    ChunkSize to ensure coalescing
  • Arbitrary overwrite happens when the overflowed
    buffer gets freed

Overflow start
21
Arbitrary Memory Overwrite
  • Lookaside List Head Overwrite
  • 4-to-n-byte overwrite
  • What we want to do is overwrite a Lookaside list
    head and then allocate from it
  • We must be the first one to allocate that size
  • We will get a chunk back pointing to whatever
    location in memory we want
  • Use this to overwrite a function pointer or put
    the shellcode at a known writable location

22
Arbitrary Memory Overwrite
  • Lookaside List Head Overwrite How To
  • Use the Coalesce-on-Free Overwrite, with these
    values
  • FakeChunk.Blink LookasideChunkSize where
    ChunkSize is a pretty infrequently allocated size
  • FakeChunk.Flink what we want a pointer to
  • To calculate the FakeChunk.Blink value
  • LookasideTable HeapBase 0x688
  • Index (ChunkSize/8)1
  • FakeChunk.Blink LookasideTable Index
    EntrySize (0x30)
  • Set FakeChunk.Flags 0x20, FakeChunk.Index
    1-63, FakeChunk.PreviousSize 1, FakeChunk.Size
    1

23
Exploition Made Simple
  • Overwrite PEB lock routine to point to PEB space
  • Put shellcode into PEB space
  • Then cause the PEB lock routine to execute

PEB Header
PEB lock/unlock function pointers 0x7ffdf020,
0x7ffdf024
0x7ffdf130
1k of payload
24
Exploitation Made Simple
  • Win2K through WinXP SP1 in a single attempt
  • First 4-byte overwrite
  • Blink 0x7ffdf020,
  • Flink 0x7ffdf154
  • 4-to-n-byte overwrite
  • Blink Lookaside(n/8)1
  • Flink 0x7ffdf154
  • Be the first to allocate n bytes (cause
    HeapAlloc(n))
  • Put your shellcode into the returned buffer
  • All done! Either wait, or cause a crash
    immediately
  • For example, do 4-byte overwrite with Blink
    0xABABABAB

25
Exploitation Made Simple
  • Forcing Shellcode To Run
  • Most applications (read everyone but MSSQL)
    dont specially handle access violations
  • An access violation results in ExitProcess()
    being called
  • Once the process attempts to exit, ExitProcess()
    is called
  • The first thing ExitProcess() does is call the
    PEB lock routine
  • Thus, causing crash instant shellcode execution
  • Nice ?

26
Exploitation Made Simple
  • Demo

27
Heap Exploitation
  • Questions?
  • This technique we just covered is very reliably,
    providing success almost every time on all Win2K
    (all service packs) and WinXP (up to SP2)
  • On to XP SP2.

28
XP Service Pack 2
  • Effects on Heap Exploitation
  • New low fragmentation heap for chunks gt 16K
  • PEB shuffling (aka randomization)
  • New security cookie in each heap chunk
  • Safe unlinking (usually) stops 4-byte overwrites

29
XP Service Pack 2
  • PEB Randomization
  • In theory, it could have a big impact on heap
    exploitation though not in reality
  • Prior to XP SP2, it used to always be at the
    highest page available (0x7ffdf000)
  • The first (and ONLY the first) TEB is also
    randomized
  • They seem to never be below 0x7ffd4000

30
XP Service Pack 2
  • PEB Randomization Does it make any difference?
  • Not much, randomization is definitely a misnomer
  • If 2 threads are present
  • We can write to 0x7ffdf000-0x7ffdffff, and
  • 2 other pages between 0x7ffd4000-0x7ffdefff
  • If 3 threads are present
  • 0x7ffde000-0x7ffdffff
  • 2 other pages between 0x7ffd4000-0x7ffdefff
  • If 11 threads are present
  • 100 success, no empty pages

31
XP Service Pack 2
  • PEB Randomization Summary
  • Provides little protection for
  • Any application that have m workers per n
    connections (IIS? Exchange?)
  • Any service in dllhost/services/svchost or any
    other active surrogate process

32
XP Service Pack 2
  • Heap header cookie

reminder overflow direction
XP SP2 Header
Current Header
33
XP Service Pack 2
  • Heap header cookie calculation
  • If ((AddressOfChunkHeader / 8) XOR Chunk-gtCookie
    XOR Heap-gtCookie ! 0) CORRUPT
  • Since the cookie has only 8-bits, it has 28
    256 possible keys
  • Well randomly guess the security cookie, on
    average, 1 of every 256 attempts

34
XP Service Pack 2
  • On the normal WinXP SP2 system, corrupting a
    chunk will do nothing
  • Since we only overwrite the Flink/Blink of the
    chunk, we corrupt no other chunks
  • Thus we can keep trying until we run out of memory

35
XP Service Pack 2
  • Summary so far
  • At this point, we see that we can with enough
    time trivially defeat all the other protection
    mechanisms.
  • On to safe unlinking

36
XP Service Pack 2
  • Safe Unlinking
  • Safe unlinking means that RemoveListEntry(B) will
    make this check
  • (B-gtFlink)-gtBlink B (B-gtBlink)-gtFlink B
  • In other words
  • C-gtBlink B A-gtFlink B
  • Can it be evaded? Yes, in one particular case.

Header to free
37
XP Service Pack 2
  • UnSafe-Unlinking FreeList Overwrite Technique
  • p HeapAlloc(n)
  • FillLookaside(n)
  • HeapFree(p)
  • EmptyLookaside(n)
  • Overwrite p0 (somewhere on the heap) with
  • p-gtFlags Busy (to prevent accidental
    coalescing)
  • p -gtFlink (BYTE )ListHead(n/8)1 - 4
  • p -gtBlink (BYTE )ListHead(n/8)1 4
  • HeapAlloc(n) // defeats safe unlinking (ignore
    result)
  • p HeapAlloc(n) // defeats safe unlinking
  • // p now points to ListHead(n/8).Blink

38
XP Service Pack 2
  • Defeating Safe Unlinking (before overwrite)

4 Blink
ListHeadn-1
0 Flink
0 Flink
FreeChunk
ListHeadn
4 Blink
4 Blink
0 Flink
ListHeadn1
39
XP Service Pack 2
  • Defeating Safe Unlinking Step 1 (Overwrite)

4 Blink
ListHeadn-1
0 Flink
0 Flink
FreeChunk
ListHeadn
4 Blink
4 Blink
0 Flink
ListHeadn1
Now call HeapAlloc(n) to unlink FreeChunk from
ListHead FreeChunk-gtBlink-gtFlink
((FreeChunk4)0) FreeChunk-gtFlink-gtBlink)
((FreeChunk0)4) Both point to FreeChunk,
unlink proceeds!
40
XP Service Pack 2
  • Defeating Safe Unlinking Step 2 (1st alloc)

4 Blink
ListHeadn-1
0 Flink
ListHeadn
4 Blink
0 Flink
ListHeadn1
FreeChunk-gtBlink-gtFlink FreeChunk-gtFlink FreeChu
nk-gtFlink-gtBlink FreeChunk-gtBlink Returns
pointer to previous FreeChunk
41
XP Service Pack 2
  • Defeating Safe Unlinking Step 3 (2nd alloc)

4 Blink
ListHeadn-1
0 Flink
ListHeadn
4 Blink
0 Flink
ListHeadn1
Returns pointer to ListHeadn-1.Blink Now the
FreeLists point to whatever data the user puts in
it
42
XP Service Pack 2
  • Questions?

43
XP Service Pack 2
  • Unsafe-Unlinking FreeList Overwrite Technique
  • For vulnerabilities where you can control the
    allocation size, safe unlinking can be evadable.
  • But is this reliable? Hardly.

44
XP Service Pack 2
  • Unsafe-Unlinking FreeList Overwrite Technique
    (cont)
  • We have to flood the heap with this repeating 8
    byte sequence
  • FreeListHead-4FreeListHead4
  • And hope the Chunks Flink/Blink pair is within
    the range we can overflow
  • But there is an even easier method

45
XP Service Pack 2
  • Chunk-on-Lookaside Overwrite Technique
  • In fact on XP SP2, there is an even easier method
  • Lookasides lists take precedence over free lists
  • This is quite convenient because
  • Lookaside lists (singly linked) are easier to
    exploit than the free lists (doubly linked)

46
XP Service Pack 2
  • Chunk-on-Lookaside Overwrites
  • HeapAlloc checks the lookaside before the free
    list
  • There is no check to see if the cookie was
    overwritten since it was freed
  • It is a singly-linked list, thus the safe
    unlinking check doesnt apply
  • Result a clean exploitation technique (albeit
    with brute-forcing required)

47
XP Service Pack 2
  • Chunk-on-Lookaside Overwrites (Technique Summary)
  • // We need at least 2 entries on lookaside
  • a_n0 HeapAlloc(n)
  • a_n1 HeapAlloc(n)
  • HeapFree(a_n1)
  • HeapFree(a_n0)
  • Overwrite a_n0 (somewhere on the heap) with
  • a_n0.Flags Busy (to prevent accidental
    coalescing)
  • a_n0.Flink AddressWeWant
  • HeapAlloc(n) // discard, this returns a_n0
  • p HeapAlloc(n)
  • p now points to AddressWeWant

48
XP Service Pack 2
  • Chunk-on-Lookaside Overwrite - Success rate?
  • Reqiures overwriting a chunk already freed to the
    lookaside
  • If an attacker overflows a buffer repeatedly, how
    often will he/she need to before succeeding?

49
XP Service Pack 2
  • Chunk-on-Lookaside Overwrite Empirical results
  • 64K heap with 1 segment
  • All chunk sizes sizes between 8-1024 bytes
  • Max overflow size 1016 bytes
  • Random number of allocs between 10-1000
  • Free probability of 50
  • Took an average of 84 allocations to be within
    overflow range
  • It will take at least 2 overwrites (one to
    overwrite a function pointer, one to place
    shellcode)

50
XP Service Pack 2
  • Chunk-on-Lookaside Overwrite Empirical results
  • Application specific function pointer and
    writable location for shellcode
  • 842 168 attempts to execute shellcode
  • Using PEB lock routine PEB space (application
    generic)
  • 842122,016 attempts to execute shellcode
  • The 12 is for the 12 possible locations of the
    PEB due to PEB randomization

51
XP Service Pack 2
  • Chunk-on-Lookaside Overwrite Summary
  • To exploit a non-application specific heap
    exploit will take 2000 attempts to do it
    reliably
  • But now ask yourself how long does it take
    generate 2000 heap overwrite attempts?
  • Lets be overly conservative and assume 5 minutes
  • That will really slow down a worm
  • But will it help you if someone is specifically
    trying to hack your machine?

52
XP Service Pack 2
  • Low Fragmentation Heap (LFH)
  • Looks really solid kudos to its author ?
  • Uses 32-bit cookie
  • Obscures address of Lookaside list heads
  • ChunkSizes ((DWORD )Chunk) //
    (ChunkSizeltlt16PrevChunkSize)
  • pLookasideEntry (DWORD)Chunk / 8
  • pLookasideEntry Lookaside-gtKey
  • pLookasideEntry ChunkSizes
  • pLookasideEntry RtlpLFHKey

53
XP Service Pack 2
  • Low Fragmentation Heap (LFH)
  • The RtlpLFHKey is a show stopper
  • push eax
  • call _RtlRandomEx_at_4
  • mov _RtlpLFHKey, eax
  • lea eax, ebpvar_4
  • push eax
  • call _RtlRandomEx_at_4
  • imul eax, _RtlpLFHKey
  • push esi
  • mov _RtlpLFHKey, eax

54
XP Service Pack 2
  • Low Fragmentation Heap (LFH)
  • Must be enabled manually (via NTDLL!RtlSetHeapInf
    ormation or KERNEL32!HeapSetInformation)
  • It is used for chunks lt 16K
  • It is not used by anything on XP SP2 Professional
  • What irony ?

55
Summary
  • Win2K WinXP SP1
  • Fixed heap base and fixed PEB allow for writing
    very stable exploits
  • Overwriting FreeList/Lookaside list heads gives
    us the ability to overwrite any writable address
    with 1K of data

56
Summary
  • WinXP SP2
  • Decreases reliability (more bruteforcing is
    necessary)
  • But with enough time, exploitation will still
    succeed
  • XP SP2 will really slow worm propagation, but not
    help a targeted victim
  • ...

57
Summary
  • WinXP SP2
  • Heap corruption handling is weak
  • PEB randomization is weak
  • Safe unlinking is evadable
  • Non-LFH cookie checks are weak
  • LFH looks good

58
Summary
  • Solutions
  • Use low fragmentation heap by default
  • Just be sure it is the lowest address on the heap
  • Expand PEB randomization over 1MB or so
  • Most machines have 1GB RAM these days
  • Inform user if heap corruption exceeds a
    threshold
  • If I have an application with 50 corrupt chunks
    in 60 seconds, I want to know someone is owning
    me
  • Check security cookies on allocation also

59
Summary
  • The eventual death of 4 byte overwrites
  • Whether an attacker can predict the
    ChunkSize/PrevSize or not, he/she wont be able
    to predict a larger security cookie (like LFH
    has).
  • Heap exploits will focus more on attacking
    application data on the heap (not the heap itself)
Write a Comment
User Comments (0)
About PowerShow.com
