Title: Hexaphonic Digital Mixer


1

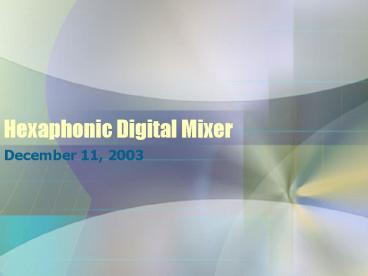

Hexaphonic Digital Mixer
  • December 11, 2003

2
Group 14 Members
  • Thomas Kennedy (Group Leader)
  • Jonathan Maikisch
  • Joseph Keller
  • Ali PourManouchehri
  • Advisor Prof. Hong Man

3
Sponsors
  • Tom and Terri Kennedy

4
Abstract
  • Geared toward live DJs
  • Implementation of current and new technologies to
    a rapidly developing niche market
  • Use of 32 Bit DSP
  • Use of newest S? codecs
  • Combination of two pieces of equipment in one
    unit

5
If you can believe that turntables outsell
guitars in Japan then you will make an educated
guess that they are gonna become the most popular
musical instrument.
  • -SEE Magazine May 2001

6
Features
  • Digital Audio Manipulation
  • Surround Sound 6 channels of output
  • Modular
  • Simplify design
  • New products adaptable from older versions with
    less design work
  • Can create range of products with different price
    ranges
  • Near Real-Time processing

7
Design Requirements
8
I/O Requirements
  • Six independent of channels output
  • Front L/R
  • Mid L/R
  • Back L/R
  • Two stereo inputs (four in all)
  • 47kO200pF
  • 40dB gain preamp based on RIAA curve
  • Headphone output

9
User Interface Requirements
  • Volume change for each input channel
  • Cross-fade must be fast communication between the
    fader and DSP

10
Audio System Requirements
  • High quality audio processing
  • 24-bits or higher of quantization
  • High sampling frequency 48kHz
  • Good noise characteristics
  • 100SNR
  • lt1 THD
  • High speed for real-time processing
  • Less than 50ms between fader position change and
    audio processing change
  • Less than 100ms between parameter knob or button
    press and audio processing change

11
Constraints
  • Complexity of system made simpler with
    evaluation board
  • Learning curve
  • Assembly language
  • SIMD
  • Fortunately, C/C compiler
  • Cost of evaluation board

12
System Design
13
System Design - Overview
14
Preamplifier Module
15
Why is a Preamp necessary?
  • Signal levels from record player are much lower
    than normal line level signals (up to 5mV for
    phono, up to 1 V for line level)
  • Approx 40dB is needed
  • Due to mechanics of sound transduction from vinyl
  • Bass frequencies attenuated for ease of
    manufacture
  • Equalization needed to achieve flat frequency
    spectrum amplify lows, attenuate highs (noise)
  • Common feature for existing mixers

16
Design Off the shelf or from scratch?
  • Answer a little from column A a little from
    column B
  • Chose circuit outlined in application note for
    High Performance Audio IC, The LM833
    (http//www.national.com/an/AN/AN-346.pdf)

17
Reasons for using chosen design
  • Phono preamplifiers of comparable sound quality
    are in the neighborhood of 50. Design in
    application note costs approximately 10.
  • Off the shelf product would require removal
    and/or reffitting of enclosure, input/output
    connections, and power supply.
  • Application Note design has documentation
    enabling the modification the performance of the
    circuit

18
Schematic of circuit
19
Circuit mechanics
  • Two stage amplifier (one chip)
  • Stage one Low Pass amplifier handles rolloffs
    at 50 Hz and 500 Hz
  • Passive network basic low pass filter in
    sequence with high pass handles 1222 rolloff
  • Stage two 10 dB gain (in this instance)

20
Simulation Performance
21
Ideal RIAA equalization curve
Note normalized to 1kHz
22
User Interface - Faders
23
Description
  • Fast Interface
  • Digital A/D converter AD7994
  • Mechanically sound tactile device
  • Alps faders for pro-audio equipment

24
Circuit
25
User Interface Microcontroller and Buttons
26
Description
  • Chose PIC16F874
  • 33 Lines of I/O
  • SPI bus peripheral
  • Fast clock speed 20MHz
  • Simple to implement, already have development
    tools
  • Buttons
  • Tact pushbuttons, N.O.
  • Debouncing circuit needed

27
Schematic
28
Button Schematic
Debouncing Circuit
29
Debouncing Circuit Simulation
Debouncing Circuit Simulation
30
User Interface CPLD and Encoder
31
Design Decisions
  • CPLD- Xilinx CPLD 9536
  • will implement glue logic with less cost and less
    components
  • Can adapt for future products
  • Encoders
  • used because they can be assignable, their
    functionality is mutable
  • Good speed and feel
  • Digital-easy to send through communications
    interface

32
Design Overview
  • Encoders will take input from user
  • CPLD
  • will take quadrature output from encoder
  • Decide which direction
  • Encode into 5 bits for all encoder functions
    using a priority encoder
  • Chose XC9536 for speed, I/O, price and ease of
    implementation

33
Encoder
  • 16 counts per revolution
  • 90 quadrature
  • Up/Dn
  • Mechanical connection needs debouncing

34
CPLD
35
Encoder Debouncing Circuit
36
CPLD Logic
37
Encoder Up/Down Decision Circuit
38
Data encoding
39
Evaluation Board
40
Audio Processing
41
Processing Inputs
  • Pre-amplification Outputs
  • 2 independent stereo channels
  • User Interface
  • Effects Parameters
  • Volume Levels
  • Mixing Levels
  • Source Positioning (Fade/Balance)

42
Effects Processing
  • Order of Effects
  • Saved in memory register
  • Important to final output
  • Parameters
  • Change how each effect is applied
  • Include Spatial Effects
  • Output is 6 channel audio
  • Specific information on each channel

43
Volume Adjustment
  • Channel Volume
  • Taken from volume slider for each channel
  • Effects Volume
  • Taken from separate effects volume knob
  • Universally applied
  • These are simply gain adjustments, not affecting
    the specific information on any of the 6 audio
    channels.

44
Stage 1 Mixing
  • Mixes effects with original stereo audio
  • Converts original audio into 6 channels to be
    mixed with the effects audio on a
    channel-to-channel basis.
  • Output is 6 channel audio
  • Each channel has specific information from
    effects application
  • Mixing with original audio leaves effects intact

45
Source Positioning
  • User-Defined Spatiality
  • Adjusts speaker levels to make the source appear
    to come from one direction
  • Leaves specific channel information intact, only
    changing gains on specific channels
  • Based on channel fade and balance
  • Calculation of Speaker Levels
  • 2 dimensional vector space
  • 6 base vectors for more defined distribution

46
Stage 2 Mixing
  • Mixes both 6-channel audio streams
  • Mixing level defined by main fader
  • Output is the combined 6 channel audio with
    spatial and effect specific information
  • Actual mixing has no effect on spatial and effect
    specific information aside from aural
    interference due to the inherent nature of the
    mixed audio.

47
Effects in Use
  • Equalization
  • Distortion
  • Fade/Balance
  • Delay
  • Spatial Velocity
  • Flanger
  • Pitch Shifter
  • Spatial Velocity
  • Chorus
  • Fade/Balance

48
Financial Budget
49
Sub Set Breakdown
50
Total Project Costs
51
Man-Power Cost Breakdown
52
Tools
53
Project Schedule
54
(No Transcript)
55
(No Transcript)
56
(No Transcript)
57
Conclusion
  • Complex Project
  • All have interest
  • Lot of design out of the way
  • Have all of the development tools
  • Believe in the success of the project
