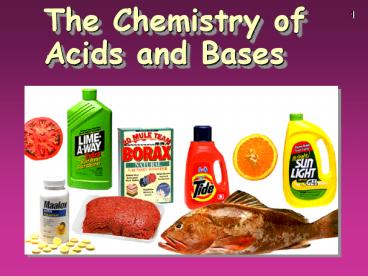

The Chemistry of Acids and Bases

1
The Chemistry of Acids and Bases
2
Acid and Bases
3
Acid and Bases
4
Acid and Bases
5
Some Properties of Acids

• Produce H (as H3O) ions in water (the
  hydronium ion is a hydrogen ion attached to a
  water molecule)
• Taste sour
• Corrode metals
• Electrolytes
• React with bases to form a salt and water
• pH is less than 7
• Turns blue litmus paper to red Blue to Red
  A-CID

6
Some Properties of Bases

• Produce OH- ions in water
• Taste bitter, chalky
• Are electrolytes
• Feel soapy, slippery
• React with acids to form salts and water
• pH greater than 7
• Turns red litmus paper to blue Basic Blue

7
Some Common Bases
Formula Name Common Name

• NaOH
• KOH
• Ba(OH)2
• Mg(OH)2
• Al(OH)3

sodium hydroxide lye
potassium hydroxide liquid soap
barium hydroxide stabilizer for plastics
magnesium hydroxide MOM Milk of magnesia
aluminum hydroxide Maalox (antacid)
8
Acid Nomenclature
Binary ?
Ternary
An easy way to remember which goes with
which In the cafeteria, you ATE something ICky
9
Acid Nomenclature Flowchart
10
Acid Nomenclature Review

• HBr (aq)
• H2CO3
• H2SO3

? hydrobromic acid
? carbonic acid
? sulfurous acid
11
Try these

• Hydroiodic Acid

• HI (aq)
• HCl (aq)
• H2SO4
• HNO3
• H2CO3

• Hydrochloric Acid

• Sulfuric Acid

• Nitric Acid

• Carbonic Acid

12
Try these

• Hydrobromic Acid

• HBr (aq)
• HCN (aq)
• H2SO3
• HClO4
• CH3OOH

• Cyanic Acid

• Sulfurous Acid

• Perchloric Acid

• Acetic Acid

13
Acid/Base definitions

• Definition 1 Arrhenius (traditional)
• Acids produce H ions (or hydronium ions H3O)
• Bases produce OH- ions
• (problem some bases dont have hydroxide ions!)

14
Arrhenius acid is a substance that produces H
(H3O) in water
Arrhenius base is a substance that produces OH-
in water
NaOH H2O ? OH- Na H2O
15
Acid Base Definitions

• Definition 2 BrønstedLowry
• Acids proton donor
• Bases proton acceptor
• A proton is really just a hydrogen atom that
  has lost its electron!

PDA (proton donated acid)
BAD (BrønstedLowry acid donates)
16
ACID-BASE THEORIES
A Brønsted-Lowry Acid is a proton donor A
Brønsted-Lowry Base is a proton acceptor
The Brønsted definition means NH3 is a Base in
water and water is itself an Acid
Conjugate Base
Conjugate Acid
Acid
Base
17
Conjugate Pairs
Conjugate Acid the remaining ion or molecule
that can re-accept the proton and act as a
base
Conjugate Base the species that is formed when
a Brønsted-Lowry base gains a proton.
18
Acids Base Definitions
Definition 3 Lewis

• Lewis acid - a substance that accepts an electron
  pair

Lewis base - a substance that donates an electron
pair
19
Lewis Acids Bases

• Formation of hydronium ion is an excellent
  example.

• Electron pair of the new O-H bond originates on
  the Lewis base.

20
Acids Base Definitions Summary
21
SOME DEFINITIONS

• Amphoteric - A substance that can act as either
  an acid or a base, e.g., H2O, HCO3-
• Polyprotic acid or base - An acid or base that
  can donate or accept more than one proton or
  hydroxide, e.g., H3PO4, H2CO3, H4EDTABa(OH)2,
  Al(OH)3

22
Strong and Weak Acids/Bases
The strength of an acid (or base) is determined
by the amount of IONIZATION.

• Generally divide acids and bases into STRONG or
  WEAK

23
Strong and Weak Acids/Bases
STRONG ACID

• HNO3 (aq) H2O(l) --gt H3O(aq) NO3-(aq)
• HNO3 is about 100 dissociated in water.

HNO3, HCl, HBr, HI, H2SO4 and HClO4 are among the
only known strong acids.
24
Strong and Weak Acids/Bases

• Weak acids are much less than 100 ionized in
  water.
• One of the best known is acetic acid CH3COOH

25
Strong and Weak Acids/Bases

• Strong Base 100 dissociated in water.
• NaOH (aq) ---gt Na (aq) OH- (aq)

Other common strong bases include KOH and
Ca(OH)2. CaO (lime) H2O --gt Ca(OH)2
(slaked lime)
26
Strong and Weak Acids/Bases

• Weak base less than 100 ionized in water
• One of the best known weak bases is ammonia
• NH3(aq) H2O(l) ? NH4(aq) OH-(aq)

27
Other Weak Bases
28
The pH scale is a way of expressing the strength
of acids and bases. Instead of using very small
numbers, we just use the NEGATIVE power of 10 on
the Molarity of the H (or OH-) ion.Under 7
acid 7 neutralOver 7 base
29
pH of Common Substances
30
(No Transcript)
31
(No Transcript)
32
1) Solution A H3O 5.89 x 10-7 pH
?  2) Solution B H3O 4.365 x 10-12 pH
?  3) Solution C H3O 1.05 x 10-4 pH
?  4) Solution D H3O 1.00 x 10-6 pH ?
Determine the pH of the following H3O
concentrations
33
1) Solution A H3O 5.89 x 10-7 pH
6.23  2) Solution B H3O 4.365 x 10-12 pH
11.36  3) Solution C H3O 1.05 x
10-4 pH 3.98  4) Solution D H3O 1.00 x
10-6 pH 6.00
Determine the pH of the following H3O
concentrations
34
pH meter

• Tests the voltage of the electrolyte
• Converts the voltage to pH
• Very cheap, accurate
• Must be calibrated with a buffer solution

35
Calculating the pH

• pH - log H
• (Remember that the mean Molarity)
• Example If H 1 X 10-10pH - log 1 X
  10-10
• pH - (- 10)
• pH 10
• Example If H 1.8 X 10-5pH - log 1.8 X
  10-5
• pH - (- 4.74)
• pH 4.74

36
(No Transcript)
37
pH calculations Solving for H

• If the pH of Coke is 3.12, H3O ???
• Because pH - log H3O then
• - pH log H3O
• Take antilog (10x) of both sides and get
• 10-pH H3O
• H3O 10-3.12 7.59 x 10-4 M
• to find antilog on your calculator, look
  for Shift or 2nd function and then the log
  button

38
pOH

• Since acids and bases are opposites, pH and pOH
  are opposites!
• pOH is useful for changing bases to pH.
• pOH looks at the perspective of a base
• pOH - log OH-
• Since pH and pOH are on opposite ends,
• pH pOH 14

39
pH
H
OH-
pOH
40
(No Transcript)
41
(No Transcript)
42
The pH of rainwater collected in a certain region
of the northeastern United States on a particular
day was 4.82. What is the H ion concentration
of the rainwater?
43
pH testing

• There are several ways to test pH
• Blue litmus paper (red acid)
• Red litmus paper (blue basic)
• pH paper (multi-colored)
• pH meter (7 is neutral, lt7 acid, gt7 base)
• Universal indicator (multi-colored)
• Indicators like phenolphthalein
• Natural indicators like red cabbage, radishes

44
pH indicators

• Indicators are dyes that can be added that will
  change color in the presence of an acid or base.
• Some indicators only work in a specific range of
  pH
• Once the drops are added, the sample is ruined
• Some dyes are natural, like radish skin or red
  cabbage

45
The pigment in red cabbage juice is anthocyanin,
which changes color from red in acid solution to
purplish to green in mildly alkaline solution to
yellow in very alkaline solution.
46
Other pH Indicators
47

• Determine the pH to the tenth and ion
  concentration of the following unknown solution
  given the color of each indicator
• q       Phenolphthalein - colorless
• q       Universal indicator red-orange
• q       Bromcresol Green yellowish green

48

• Determine the pH to the tenth and ion
  concentration of the following unknown solution
  given the color of each indicator
• q       Alzarin Yellow R yellow
• q       Phenolphthalein - pink
• q       Thymolphthalein blue

49

• Determine the pH to the tenth and ion
  concentration of the following unknown solution
  given the color of each indicator
• q      Methyl Orange yellowish orange
• q       Chlorphenol Red yellow
• q       Bromthymol Blue yellow
• q       Bromcresol Green blue

50
ACID-BASE REACTIONSTitrations

• H2C2O4(aq) 2 NaOH(aq) ---gt
• acid base
• Na2C2O4(aq) 2 H2O(liq)
• Carry out this reaction using a TITRATION.

51
Setup for titrating an acid with a base
52
Titration

• 1. Add solution from the buret.
• 2. Reagent (base) reacts with compound (acid) in
  solution in the flask.
• Indicator shows when exact stoichiometric
  reaction has occurred. (Acid Base)
• This is called NEUTRALIZATION.
