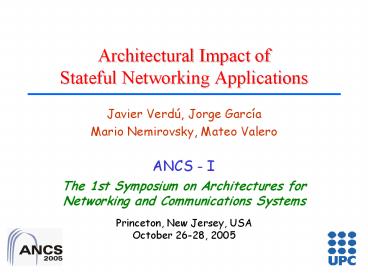

Architectural Impact of Stateful Networking Applications

1
Architectural Impact ofStateful Networking
Applications

• Javier Verdú, Jorge García
• Mario Nemirovsky, Mateo Valero
• The 1st Symposium on Architectures forNetworking
  and Communications Systems
• Princeton, New Jersey, USA
• October 26-28, 2005

ANCS - I
2
Trends of Internet

• Important growth of Internet Traffic
• Consequent Traffic Aggregation increment
• Low packet/flow temporal locality
• End-point routers appliances execute stateful
  apps
• Upper layer packet processing
• Larger workloads per packet
• Facing new security issues
• Improvement of attacks methods
• Need to spread the knowledge futher than a packet

3
Stateful Application Model
Granularity Levels
State Lifetime
-

4
Research Limitations on Stateful Apps

• Pool of Benchmark Suites for Network Processors
• CommBench
• NetBench
• NpBench
• NPForum
• Lack of Stateful Benchmarks
• Most of them are stateless benchmarks
• Creating new benchmarks
• Reliability???
• State size
• State management

5
Talk Outline

• Introduction
• Network Traffic Properties
• Description of Environment
• Architectural Impact Analysis
• Summary

6
Network Traffic Properties

• Traffic Aggregation Level
• Unique Flow rate in a given window

vs
7
Network Traffic Properties

• Traffic Aggregation Level
• Unique Flow rate in a given window
• Intra-Flow Temporal Distribution
• How the packets are exchanged?

vs
8
Network Traffic Properties

• Traffic Aggregation Level
• Unique Flow rate in a given window
• Intra-Flow Temporal Distribution
• How the packets are exchanged?
• Inter-Flow Temporal Distribution
• Packet rate between packets of the same flow

vs
vs
9
Benchmark Selection (I)

• Snort is tuned with four different configurations
• Stream4
• Prevents Stick/Snot attacks
• Flow-Portscan
• Detects portscanning attacks
• SfPortscan
• Detects a variety of portscanning attacks
• Merged Engines
• The combination of the above engines
• Argus is a monitoring/billing benchmark
• Currently it is included in NO benchmark suite
• Open source application
• http//www.qosient.com
• Equivalent to the commercial tool Cisco NetFlow

10
Benchmark Selection ( II)

• Obviously, stateless applications keep no
  flowstate
• The state size may vary a lot between
  applications
• The state management also may be quite different

11
Evaluation Methodology

• Instrumented Binary Code ATOM
• Trace-driven simulation Modified version of
  SMTSim Simulator
• Simulation length
• Warming period
• 10K Packets
• Processing period
• 50K Packets
• Packet selection for the flow lifetime studies
• Towards analysis of actual application behavior
• The baseline is an ample configuration
• ROB Size 256 entries
• No significant improvements with larger ROBs
• Physical Regs 192 int, 192 FP
• No stress due to lack of regs
• Perceptron Branch Predictor
• The most powerful configuration

12
Architectural Impact Analysis

• Computational complexity
• Available Parallelism
• Impact of Bottlenecks
• Branch Prediction
• Data Cache Behavior

13
Computational Complexity (I)

• There are no significant differences among
  benchmarks
• Roughly 35 - 45 of memory accesses
• Argus is more memory intesive

14
Computational Complexity ( II)

• The instruction mix is similar along all the
  packets
• Some applications generate the hardest workload
  in the first packets
• Other applications show almost constant workload

15
Available Parallelism

• Processor configuration modified towards avoiding
  any constraint
• The ILP is independent of the app category
• It is inherent to the application itself
• The evaluated apps show low ILP 3,7 IPC

16
Impact of Bottlenecks

• Stateful apps show very lower performance
• Roughly 0,6 IPC on average
• The importance of the packet processing
• Constant vs concentrated workload
• Memory Impact
• 3x 19x of speed up

17
Branch Prediction (I)

• High branch prediction accuracy on average
• But we have two branch categories
• Flow independent similar among packets -gt easy
  to predict
• Flow dependent flow related -gt sensitive to
  traffic properties

18
Branch Prediction ( II)

• A single active connection
• Higher accuracy and no variations among n-th
  packets
• High traffic aggregation level
• Lower accuracy and vairations among n-th packets
• Negative aliasign due to flow dependent branches
• Most of our applications hide this effect due to
  concentrated workload

No traffic aggregation level
High traffic aggregation level
19
Data Cache Behavior (I)

• Stateful apps need reduced DL1 to get steady
  miss rate
• Taking advantage of flow independent memory
  references
• Almost 100 of DL2 accesses are misses
• It is unable to keep the state of the active
  flows
• Larger flow-states emphasize network properties
  impact
• Getting higher steady state even with low traffic
  aggregation
• The intra-flow distribution may be more helpful

20
Data Cache Behavior ( II)

• Negative effects of the memory concentrated in
  the first packets
• Constant workload applications show similar miss
  rate for every packet
• Extra miss rates for data structures maintainance
• Merged Engines from 1,5 to 5 on average

21
Summary (I)

• We present the architectural impact of Stateful
  Networking Applications
• An important new type of applications
• The behavior along the packets of a TCP
  connection
• Constant workload for the packets of a connection
• Workload concentrated in the first packets of a
  connection
• Analysis of network traffic properties
• Branch prediction and data cache are sensitive to
  them

22
Summary ( II)

• Reduced IPC on average
• L2 is unable to maintain the required states of
  active flows
• Branch prediction also may improve once solved
  memory bottleneck
• Other stateful applications may present different
  valuable results, but
• The critical bottlenecks even may be more
  stressed
• Our concern is
• To have more sample applications to evaluate
• To analyse the apps in a more realistic
  environment
• Running simultaneously a number of applications

23

• Questions...

24
Traffic Traces

• Filtered Traffic Trace
• Bidirectional TCP connections
• Generating Synthetic Traffic Traces
• Mixing different traffic traces
• microTimestamp sorting based
• We are assuming a set of traces with the same
  bandwidth link
• In our case MRA link
• Avoiding the aliasing of IP addresses among
  aggregated traces
• The set of traces are originally sanitized
• The resulting traffic trace shows roughly 1Gbps
• 170K active flows
• Achieved from the original OC12 MRA link (622Mbps)
