Title: Safe CLevel Programming: Cyclone and Beyond


1

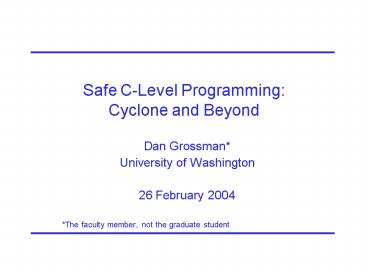

Safe C-Level ProgrammingCyclone and Beyond
  • Dan Grossman
  • University of Washington
  • 26 February 2004
  • The faculty member, not the graduate student

2
C is not memory safe
  • void f(int p,
  • int i,
  • int v)
  • pi v
  • Address pi might hold important data or code
  • could be any data in the application
  • many other ways to misuse f
  • Memory safety is crucial for reasoning about
    programs

0 i n
...
p
i
v
3
A question of trust
  • We rely on our C-level software infrastructure
    to
  • not crash (or crash gracefully)
  • preserve data, restrict access, ...
  • serve customers, protect valuables, ...
  • Infrastructure is enormous
  • careful humans not enough
  • One safety violation breaks all isolation
  • Memory safety is necessary for trustworthy systems

4
Safe low-level systems
  • For a safety guarantee today, use YFHLL
  • Your Favorite High Level Language
  • YFHLL provides safety in part via
  • hidden data fields and run-time checks
  • automatic memory management
  • Data representation and resource management are
    essential aspects of low-level systems
  • Write or extend your O/S with YFHLL?
  • There are strong reasons for C-like languages

5
Some insufficient approaches
  • Compile C with extra information
  • type fields, size fields, live-pointer table,
  • treats C as a higher-level language
  • Use static analysis
  • very difficult
  • less modular
  • Ban unsafe features
  • there are many
  • you need them

6
Cyclone a combined approach
  • Cyclone is a safe C-level language
  • Advanced type system for safety-critical
    invariants
  • Flow analysis for tracking state changes
  • Exposed run-time checks where appropriate
  • Modern language features for common idioms
  • Joint work with Greg Morrisett (Harvard),
  • Trevor Jim (ATT),
  • Michael Hicks (Maryland)

7
The plan from here
  • Example NULL-pointer dereferences
  • Brief mention of other cool stuff
  • Status
  • Future directions
  • Beyond memory safety and C

8
Not-NULL pointers
/
  • Subtyping t_at_ lt t but t_at__at_ lt t_at_?
  • Downcast via run-time check, often avoided via
    flow analysis

9
Example
  • FILE fopen(const char_at_, const char_at_)
  • int fgetc(FILE _at_)
  • int fclose(FILE _at_)
  • void g(char c)
  • FILE f fopen(foo, r)
  • while((cfgetc(f)) ! EOF)
  • fclose(f)
  • Gives warning and inserts one null-check
  • Encourages a hoisted check

10
A classic moral
  • FILE fopen(const char_at_, const char_at_)
  • int fgetc(FILE _at_)
  • int fclose(FILE _at_)
  • Richer types make interface stricter
  • Stricter interfaces make implementations
    easier/faster
  • Exposing checks to user lets them optimize
  • Cant check everything statically (e.g.,
    close-once)

11
Fancier stuff
  • Array lengths USENIX2001
  • Size known statically int17
  • Size-place known statically struct MyArrltigt
  • tag_tltigt sz
  • inti arr
  • Fat pointers int?
  • Region-based memory management PLDI2001
  • Dangling-pointer dereferences a compile-time
    error
  • Integrates with optional garbage collection
  • C things (varargs, unions, casts, )

12
The plan from here
  • Example NULL-pointer dereferences
  • Brief mention of other cool stuff
  • Status
  • Future directions
  • Beyond memory safety and C

13
Status
  • Cyclone really exists
  • gt130K lines of Cyclone code, including the
    compiler
  • gcc back-end (Linux, Cygwin, OSX, FreeBSD,
    Mindstorm, )
  • Users manual, mailing lists,
  • More features exceptions, datatypes,
  • Still a research vehicle

14
Experience
  • Scalable
  • compiler libraries (65K lines) build in lt30sec
  • Static safety helps exploit the C-level
  • I use x more than in C
  • Ported many small benchmarks from C
  • usually change 5-10 of lines
  • usually 1x to 2x slowdown (less for systems apps)
  • changing a little more helps a lot (and still
    safe!)
  • discovered unknown bugs

15
Other projects
  • STP Patel et al., SOSP2003
  • upgrade transport protocols with untrusted code
  • RBClick Patel/Lepreau, OPENARCH2003
  • resource-bounded extensible routers
  • FPGA synthesis Manohar et al., FPGA2004
  • MediaNet Hicks et al, OPENARCH2003
  • multimedia overlay-network with quick packet
    filtering
  • Open Kernel Environment Bos/Samwel,
    OPENARCH2002
  • runs partially trusted code in a kernel, but
    shares data
  • Windows device driver (6K lines)
  • 100 lines in C (vs. 2500 in Vault
    Fähndrich/DeLine)
  • unclear what to do when a run-time check fails
  • still many ways to crash a kernel (fewer with
    Vault)

16
Onward directions
  • Modules
  • Encapsulate low-level data assumptions
  • Enforce application-level interface protocols
  • Error messages
  • Advanced type systems with inference a known
    problem
  • Can search at human-time for small corrections
    without complicating the checker
  • Tractable models
  • Beautiful language theory informs the design
  • A formal model assures me of soundness (painful
    lessons)
  • But the (simplified) models are at the edge of
    tractability

17
Longer term
  • What I think an O/S implementation wants
  • high-level control, low-level data
  • C-level with less historical baggage
  • smoother interoperability with assembly and HLLs
  • rich, principled compile-time tools for modern
    systems programming
  • Broad PL design/implementation interests
  • garbage collection, functional languages,
    accurate profiling, temporal properties, type
    systems,

18
Summary
  • Memory safety is essential, but the world relies
    on C
  • Cyclone is a safe C-level language
  • Today
  • A language for user-controlled C-level safety
  • Sophisticated data and lifetime invariants
  • Tomorrow
  • Modularity, not just safety
  • High-level control, low-level data
  • To learn more
  • http//www.cs.cornell.edu/projects/cyclone
  • write some code!
