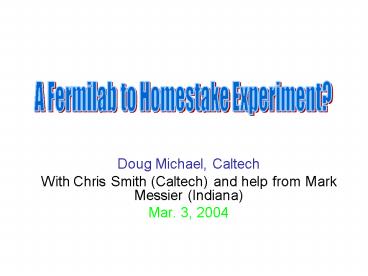

1A Fermilab to Homestake Experiment?
- Doug Michael, Caltech
- With Chris Smith (Caltech) and help from Mark
Messier (Indiana) - Mar. 3, 2004
2Setting the Scene
- The Fermilab NuMI beam will start operating later
this year. - Initial operation will be at about 0.2 MW (about
2e20 protons per year) - The beamline is designed for 0.4 MW of 120 GeV
protons and can probably sustain a factor of 2
beyond that without substantial reworking. - Up to 2 MW may be possible with the main issue
being repetition rate and total heat in the
target, decay pipe and dump. - MINOS will be the first experiment to use this
beamline. - Will provide the best oscillation measurements
yet But we want more! - The Off Axis Experiment is being proposed to
offer yet further improvement in sensitivity to
ne appearance. - 50 kT fine-grained calorimeter, 15 mR off axis.
- Lower energy, narrow-band beam than on-axis.
Better rejection of NC p0. - We will hear from Gary Feldman on this on Friday.
- Sensitive to ne appearance including matter
effects and dCP. - Ambiguities come from the sensitivity to the
different terms and also from uncertainty in sin2
q23. - A new 8 GeV proton driver will be the central
element of recommendations from the Future of
Fermilab Committee. Neutrino physics is the
initiating flagship enterprise for this machine. - This will increase the proton intensity at 120
GeV by a factor of 5-10. - Reduces, but does not eliminate ambiguities for
all parameters. - Measurements at the second oscillation maximum
can remove the ambiguities. This could be done
building yet another off axis detector. But
perhaps on this timescale it would make more
sense to connect this effort to a new laboratory
at Homestake (or elsewhere).
3Measurement of Oscillations in MINOS
For Dm2 0.0020 eV2, sin2 2q 1.0
Plots on the left Oscillated/unoscillated ratio
of number of nm CC events in the far detector
vs Eobserved
Plots on the right MINOS 90 and 99 CL allowed
oscillation parameter space for the Super-K best
fit point.
4Appearance of Electrons
Neutrinos at higher energy provide most of the
events.
Peak of oscillation prob for this Dm2
For Dm2 0.0025 eV2
For Dm2 0.0025 eV2, sin2 2q13 0.067
3 s discovery potential for three different
levels of protons on target and versus systematic
uncertainty on the background.
Observed number of events identified as coming
from ne CC interactions with and without
oscillations. 25x1020 protons on target.
5Off Axis A possible next step
- The neutrino beam isnt limited
- just to those on axis. It is a
- broad distribution.
- Total flux goes down as one
- moves off axis, but the flux of
- low energy neutrinos can be
- greater than on axis due to pion
- decay kinematics.
Sensitivity goal for the Off Axis Experiment
Based on 20e20 P.O.T.
Note, this is the NuMI medium energy beam
Neutrino Events
The goal for the Off Axis Experiment is a factor
of 20 more sensitivity than MINOS 10 x bigger
detector, finer sampling, low Z, low energy beam,
more protons.
6Comparison of Long Baseline and Reactor Exp'ts
Phase I
Phase I
The size of the correlation and degeneracy
bars represent sensitivity to additional physics!
Huber, Lindner, Winter
7Assumptions for beyond Off Axis
- I dont see this as an alternative proposal to
starting with an Off Axis experiment at Fermilab.
Rather, it is a longer term way of building on
investments and offering the best possible
physics measurements. - We assume that the following resources will be
available - A new 2 MW 8 GeV proton source at Fermilab
- Corresponding 2 MW of 120 GeV protons from the
Main Injector - A new beamline, with whatever characteristics we
need aimed in the direction of Lead. - An underground laboratory at Homestake (1290 km
from Fermilab). - A 500 kT water Cerenkov detector at Homestake
with Super-K type capabilities. (Alternatively, a
100 kT fine-grained calorimeter, liquid argon or
scintillator.) - It is clear that we are talking about an
experiment that will start later than 2015. - Other paths/approaches can be imagined, but this
gives a first idea of what might be possible.
8A Brief Side-Bar
An example 700 MeV ne CC event in a 4cm pitch
totally active scintillator detector
100 kT detector for 400M?
Courtesy Leon Mualem
9A new proton driver at Fermilab?
Neutrino Super- Beams
SY-120 Fixed-Target
NUMI
Off- Axis
X-RAY FEL LAB
Anti- Proton
8 GeV
2 MW 8 GeV Linac
To Homestake 120 GeV and 8 Gev
Main Injector _at_2 MW
700m Active Length
Slow-Pulse Spallation Source Neutrino Target
Also includes upgrades to Main Injector for
current and cycle
10Appearance Probabilities at 1290 km
11The FeHo Beamline
(FErmilab to HOmestake)
8m
- A new neutrino beamline using the same 120 GeV
extraction line as the current NuMI beam but then
redirecting towards Homestake. - In addition, a beamline to deliver 8 GeV protons
from the (assumed) new proton driver. - Dual targeting/focussing stations
- Decay region 200 m in length, 4 m tall and 8 m
wide. (Roughly the same scale as NuMI
construction.) - Tunable Off Axis beams for 120 GeV protons. On
axis beam for 8 GeV protons. - 2 MW of proton power at both 120 GeV and 8 GeV.
30 mR maximum off axis
200M
4m
120 GeV protons
8 GeV protons
12Unoscillated Rate of CC Events at 1290 km
The off axis beams Are NuMI beams.
The 8 GeV beam shown is exactly the
Mini-BooNE beam with more protons. Probably a
more optimal beam will be possible.
13"Optimized" Unoscillated Rate of CC Events at
1290 km
Note that use of several narrow band beams
to form a broad energy envelope will permit
better background rejection than a single
wide-band beam
14A better look at the HE Tails
15Rate of QE Events Only at 1290 km
16Oscillated rate of neutrino events at 1290 km
Unoscillated
Remaining nm
Appearing ne
17Oscillated rate of neutrino events at 1290 km
Remaining nm
Unoscillated
Appearing ne
18Oscillated rate of neutrino events at 1290 km
Unoscillated
Appearing ne
19What the statistics permit with an impossible
detector
- Using all ne CC events with no
- background.
- In other words, it only gets
- worse than this.
20What the statistics permit with a possible
detector?
Fit done using only QE events with no background.
Perhaps not so far from what might be expected
for 100 kT liquid argon or scintillator?
21Approximating the Response in Water Cerenkov
Ala Super-K courtesy of Mark Messier
22Measured spectrum and fit for single ring,
mu-like events
Statistics are based only on QE events but
backgrounds come from all events
23Measured spectrum and fit for single ring, e-like
events
Statistics are based only on QE events but
backgrounds come from all events
24Individual Reconstructed Spectra in Water Cerenkov
120 GeV, 30mR OA
8 GeV on axis
120 GeV, q0mR OA
120 GeV, 15mR OA
Statistics are based only on QE events but
backgrounds come from all events
25Conclusions
- Use of combined 8 GeV and 120 GeV proton beams
with a future Fermilab proton driver permits a
very intense, wide/narrow band beam with tunable
flux over two orders of magnitude in neutrino
energy. - Assuming a large detector at Homestake, an
experiment with very high statistics will be
possible. Even for a tracking calorimeter
detector which may be better suited than water
Cerenkov to the event reconstruction needs. We
need to look at this in more detail. - Further assuming the detector to be 500 kT water
Cerenkov with Super-K-like features permits - Very small errors on nm disappearance parameters.
Systematics (not addressed here) may well
dominate. - OK errors on ne appearance parameters but
disappointing compared to the statistics due to
energy smearing and backgrounds. - Hard to get information out of the second
oscillation ne appearance maximum. Needs more
work.
