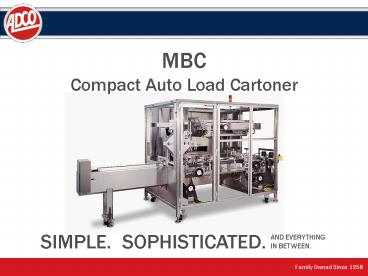

MBC Compact Auto Load Cartoner

1
MBCCompact Auto Load Cartoner
2
MBC Compact Auto Load Cartoner

• The MBC compact auto load cartoner was designed
  specifically for smaller carton sizes. The mini
  MBC was developed to meet the demands of the
  pharmaceutical, cosmetic, and personal care
  industries for a compact cartoner to run smaller
  cartons.

3
MBC Compact Auto Load Cartoner

• The MBC features a welded tubular frame with the
  hopper positioned over the frame for a compact 87
  x 58 (2.21 x 1.47m) footprint. Additionally,
  the MBC features side shifting infeed buckets,
  swing away overheads, horizontal powered carton
  hopper, and digital indicators on all
  adjustments. A variety of automatic product
  handling systems can be integrated depending on
  the products to be packaged. Several options are
  available including washdown construction.

4
MBC Compact Auto Load Cartoner

• Benefits
• Sliding infeed buckets insure smooth product
  transitions into the carton
• The hopper is mounted over the frame for a
  compact machine footprint
• Utilizes the industry standard, OMAC PackML state
  model programming which integrates the logic,
  motion control, and human machine interface so
  that they work together allowing the MBC to
  integrate easily withinthe entire packaging
  line.
• Fully enclosed, Category-3 barrier guarding
  keepsoperators safe, while allowing easy-open
  accessfor maintenance.

5
MBC Compact Auto Load Cartoner

• The MBC is packed with many standard features

48 Powered Carton Hopper
Interlocked Barrier Guarding
Multi-head Rotary Carton Feeder
Product Infeed Conveyor
Stainless SteelFrame
Automatic Barrel Cam Loader with Sliding Buckets
6
MBC Compact Auto Load Cartoner
7
MBC Compact Auto Load Cartoner

• Standard Features
• Right or Left hand load construction
• Multi-head rotary carton feeder
• Horizontal powered carton hopper mounted over the
  frame
• Automatic barrel cam inserter with retract system
• 6' (1.83m) product infeed conveyor frame
• Side shifting infeed buckets
• Powered discharge belts
• Unloaded product discharge chute
• Allen Bradley PLC control system with touch
  screen interface
• OMAC PackML state model programming
• No product/No carton and No carton/No load
  sensing
• Digital readouts for size changes
• Category-3 safety system with full safety
  guarding
• Oilless vacuum pump
• Compact welded tubular steel frame, measuring 87
  x 58 (2.21 x 1.47m)
• Castors for portability and leveling feet
• Metric construction
• Group lubrication

8
MBC Compact Auto Load Cartoner

• Options
• Washdown construction
• Nordson pressurized hot melt glue system
• Tablock tuck closing plows
• Deboss, Ink Jet, or Laser carton coding
• Continuous or intermittent motion
• Open flap detect and reject system
• Additional product infeed conveyor length

9
MBC Compact Auto Load Cartoner

• To learn more about what ADCO can do for you,
  please contact our Sales Team today!
• ADCO Manufacturing
• 2170 Academy AvenueSanger, CA 93657
• Tel [phone]
• sales_at_adcomfg.com
• www.ADCOMFG.com
