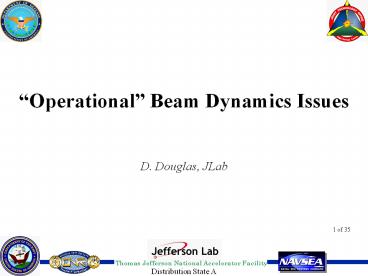

Operational Beam Dynamics Issues

• D. Douglas, JLab

2
A.K.A., The JLab Dirty Dozen"

• Cathode
• Injector Operations
• Merger Issues
• Space Charge down linac (esp. LSC)
• BBU
• Stability
• Propagating modes
• CSR/LSC during recirculation/compression
• THz heating
• Halo
• Ions
• Resistive wall/RF heating
• Momentum acceptance
• Magnet field quality/reproducibility
• RF transients/stability

3
1. Cathode

• Cesiated GaAs
• Excellent performance for RD system
• When lifetime limited, get 500 C between
  cesiations (50k sec, 14 hrs at 10 mA, many days
  at modest current), O(10 kC) on wafer
• Typically replace because we destroy wafer in an
  arc event, cant get QE
• When (arc, emitter, vacuum,) limited, few hours
  running
• Not entirely adequate for prolonged user
  operations
• Other cathodes?
• Need proof of principle for required combination
  of beam quality, lifetime?

4
2. Injector Operational Challenges

• At highest level
• System is moderately bright operates at
  moderate power
• Halo tails are significant issue
• Must produce very specific beam properties to
  match downstream acceptance have very limited
  number of free parameters to do so
• Issues
• Space charge steering in front end
• Deceleration by first cavity
• Severe RF focusing (with coupling)
• FPC/alignment steering phasing a challenge
• Miniphase
• Halo/tails
• Divots in cathode scatted drive laser light
  cathode relaxation

5
3. Merger Issues

• Low charge (135 pC), low current (10 mA) beam
  quality preservation notionally not a problem
  however
• Can have dramatic variation in transverse beam
  properties after cryounit
• 4 quad telescope has extremely limited dynamic
  range
• Must match into long linac with limited
  acceptance
• Matched envelopes 10 m, upright ellipse
• Have to get fairly close (halo, scraping, BBU,)
• Beam quality is match sensitive (space charge)
• Have to iterate injector setup match to linac
  until adequate performance achieved

6
System Layout

• Requirements on phase space
• high peak current (short bunch) at FEL
• bunch length compression at wiggler
• using quads and sextupoles to adjust compactions
• small energy spread at dump
• energy compress while energy recovering
• short RF wavelength/long bunch,
• large exhaust dp/p (12)
• get slope, curvature, and torsion right
• (quads, sextupoles, octupoles)

7
4. Space Charge Esp. LSC Down Linac

• Had significant space charge issues in linac
  during commissioning
• Why was the beam momentum spread asymmetric
  around crest?
• dp/p ahead of crest 1.5 x smaller than after
  crest average PARMELA
• Why did the properly tuned lattice not fully
  compress the bunch?
• M55 measurement showed proper injector-to-wiggler
  transfer function, but beam didnt cooperate
  minimum bunch length at wrong compaction
• Why was the bunch too long at the wiggler?
• bunch length at wiggler too long even when
  fully optimized
• could only get 300-400 fsec rms, needed 200 fsec
• We blamed wakes, mis-phased cavities, fundamental
  design flaws, but in reality it was LSC
• PARMELA simulation (C. Hernandez-Garcia) showed
  LSC-driven growth in correlated uncorrelated
  dp/p magnitudes consistent with observation
• Simulation showed uncorrelated momentum spread
  (which dictates compressed bunch length) tracks
  correlated (observable) momentum spread

8
Space-Charge Induced Degradation of Longitudinal
Emittance

• Mechanism self-fields cause bunch to spread
  out
• Head of bunch accelerated, tail of bunch
  decelerated, causing correlated energy slew
• Ahead of crest (head at low energy,
• tail at high) observed momentum spread
• reduced
• After crest (head at high energy,
• tail at low) observed energy spread
• increased
• Simple estimates gt imposed correlated momentum
  spread 1/Lb2 and 1/rb2
• The latter observed bunch length clearly
  match-dependent
• The former quickly checked

9
Solution

• Additional PARMELA sims (C. Hernandez-Garcia)
  showed injected bunch length could be controlled
  by varying phase of the final injector cavity.
• bunch length increased, uncorrelated momentum
  spread fell (but emittance increased)
• reduced space charge driven effects both
  correlated asymmetry across crest and
  uncorrelated induced momentum spread
• When implemented in accelerator
• final momentum spread increased from 1 (full,
  ahead of crest) to 2
• bunch length of 800900 fsec FWHM reduced to
  500 fsec FWHM (now typically 350 fsec)
• bunch compressed when decorrelated
  injector-to-wiggler transfer function used (beam
  matched to lattice)

10
Happek Scan
11
Key Points

• Lengthen thy bunch at injection, lest space
  charge rise up to smite thee (Pv. 321, or
  Hernandez-Garcia et al., Proc. FEL 04)
• best injected emittance DOES NOT NECESSARILY
  produce best DELIVERED emittance!
• LSC effects visible with streak camera

12
Streak Camera Data from IR Upgrade
(t,E) vs. linac phase after crest
(data by S. Zhang, v.g. from C. Tennant)
13
Streak Camera Data from IR Upgrade
(t,E) vs. linac phase, before crest asymmetry
between and - show effect of longitudinal space
charge after 10 MeV
(data by S. Zhang, v.g. from C. Tennant)
14
4 and 6 degrees off crest

• on rising, - on falling part of waveform
• Lbunch consistent with dp/p and M56 from linac
  to observation point
• dp/p(-)gtdp/p()
• on - side there are electrons at energy higher
  than max out of linac
• distribution evolves hot spot on - side
  (kinematic debunching, beam slides up toward
  crest)
• gt LSC a concern

-4o
-6o
4o
6o
15
5. BBU
BBU video courtesy C. Tennant

• After considerable effort, stability is usually a
  nonissue
• A bad setup can have ½ mA threshold
• A good setup can be absolutely stable (skew quad
  rotator)
• Threshold sometimes lasing dependent (laser
  ongtlaser off) but with bad match
• Propagating modes can be an issue (well, a
  nusiance) even at our low beam powers
• High frequency from beam talks to cold window
  temp. monitors in waveguide trips us off (CWWT)
• Typically run masked, monitor values determine
  response to beam is prompt, not thermal
• Good example of power going to the wrong place
  at the wrong time

16
6. CSR/LSC during recirculation/compression (with
a side of THz heating)

• 135 pC/0.35 psec bunch 400 A peak current
• CSR/LSC effects evident
• Enhanced by parasitic compressions (Bates bend)
• Initial operation irradiated outcoupler THz
  heating (next slide)
• Use CSR enhancement at tuning cue

CSR video courtesy K. Jordan
17
CSR/THz (Mis)Management

• Parasitic compressions
• Very short bunch after optical cavity chicane and
  at 1st dipole of return arc
• Sprayed THz onto outcoupler power where we
  didnt want it
• Added chicane between wiggler and arc to lengthen
  bunch (overcompression), move source point away
  from outcoupler
• And, yes, its putting more power where we didnt
  want it

18
Learning About THz Management/Mirror Loading

• July 04 10 kW run provided illumination on
  problem of THz loading of mirrors
• THz chicane installed during next down to move
  source point away from downstream optic
• Reduced THz power onto optic, but also modified
  distribution of remaining THz, directing it onto
  center of mirror with resulting aggravated
  loading/distortion
• THz traps developed to capture/block remnant
  alleviate remaining loading

Image courtesy G. Biallas
19
Lucky 7 Halo

• Huge operational problem
• Many potential sources
• Ghost pulses from drive laser
• Cathode temporal relaxation
• Scattered light on cathode
• Cathode damage
• Field emission from gun surfaces
• Space charge/other nonlinear dynamical processes
• Dark current from SRF cavities
• We see multiple sources (CW beamlets at various
  energies even with beam off), large-amplitude
  energy tails/spatial halo (beam on) all through
  system
• Much of our tune time is spent getting halo to
  fit though (cant throw it away get activation
  heating damage cant collimate it, it just
  gets mad)
• Tends to be mismatched to, out of phase with,
  core beam
• Can tweak it through though this might not
  work a large system.
• Look at activation patterns, beam loss, tune on
  BLMs

20
Caveats

• Yet another example of putting power where you
  dont want it
• Halo is not like beam loss during storage ring
  operation, its more like beam loss during
  injection into a storage ring so unless
  injection efficiencies are always (cathode to
  stored beam) 99.999 or so (0.00001 loss), halo
  is a problem. ERLs are transport lines.
• Large acceptance systems are hoist by their own
  petard stuff that might go away in a more
  conventional machine will instead fit into the,
  well, LARGE acceptance and can end up going away
  someplace unexpected or bad
• unexpected in our system e.g. the middle of
  the 1st reverse bend (dark current) where the
  chamber is about 1 foot wide
• bad in our system the small aperture wiggler
  chamber, where its ½ inch wide
• HALO NEEDS IMMEDIATE ATTENTION!
• Large apertures/small beam envelopes

21
8. Ions

• Not a problem. Not a problem for CEBAF-ER. Not a
  problem for the IR Demo. Not a problem for CEBAF.
• In other words, its not a problem for 4 machines
  (including 3 ERLs) spanning two orders of
  magnitude in energy (20 Mev to 6 GeV) , seven
  orders of magnitude in current (yes, seven,
  wait just a minute) and eight orders of
  magnitude in bunch charge (yes, EIGHT Hall B
  takes 1 nA, 10 electrons/bunch, thats a
  nano-nano Coulomb)
• We have no clue why
• Estimates on all the machines show that they
  should have problems and also show they
  should be problem free. Nature chose, we dont
  know how.
• Gotta love cryopumping?
• IONS NEED IMMEDIATE ATTENTION! (Thanks Todd!)

22
Caveat

• Not a problem implies
• We know what the signature(s) of ions will be in
  a recirculator or ERL (we dont)
• CEBAF emittance growth?
• That (those) signature(s) are missing from the
  aforementioned machines (we dont know if they
  are or arent)
• CEBAF emittance growth?
• We just havent seen anything in 20 years of
  operation that screams IONS and we really
  dont know why, or what to look for

23
9. Resistive Wall RF Heating

• Yes, were STILL putting power where we dont
  want it
• Resistive wall seen when new narrower wiggler
  chamber installed in Fall 05
• Observed drift in optical diagnostics traced to
  beam-induced heating of wiggler chamber chamber
  expands, moving hardware
• Temperature rise depends both on current and
  bunch length 5 mA CW beam/short bunch led to 50o
  C rise in a few minutes
• Attributed to resistive wall effects after
  analysis by SRF, CASA collegues
• Managed by adding cooling

courtesy T. Powers
Images courtesy T. Powers
24
Beam Current-Driven Effects

• RF heating of OCMMS/x-ray cube
• OCCMS, x-ray cube also heated up over 40o C when
  running 5 mA CW
• Heating depended on current but not on bunch
  length
• K. Beard analysis with Microwave Studio showed
  OCMMS resonates at 1500 MHz X-ray cube is 10
  cm x 10 cm x 10 cm or roughly a pi-mode cavity
  at 1500 MHz
• Suggests heating due to deposition of RF power
  into the devices
• X-ray cube removed, RF control/damping added to
  downstream OCMMS

courtesy T. Powers
Images courtesy T. Powers
25
Beam Current-Driven Effects

• Momentum spread enhancement by OCCMS/x-ray cube
• Over the summer, a large blow-up of momentum
  spread evolved at short bunches
• 10 exhaust energy spread observed for short
  bunch even without lasing
• Compressing beam at various locations localized
  this effect to region between wiggler and THz
  chicane
• Lasing remained okay, suggesting effect due to
  beam interaction with downstream OCMMS (known to
  be resonant at RF frequencies)
• Change of match, installation of shorting clips,
  RF dampers in OCCMs, removal of x-ray cube
  mitigated effect

Images courtesy G. Biallas
26
10. Momentum Acceptance

• FEL exhaust energy spread 12-13 full
• Need
• Large acceptance beam transport
• Energy compression during energy recovery
• Decelerating 14 MeV spread to 10 MeV
• Requires 30o phase acceptance in linac
• Use incomplete energy recovery, control of path
  length (aberrations)
• Tune momentum compactions through 3rd order
• Harmonic RF difficult to implement

27
Cautionary Tale (Tail?) Serving as a Warning to
OthersDemo Dump core of beam off center, even
though BLMs showed edges were centered
28
11. Magnet Field Quality/Reproducibility

• Magnet field quality excellent
• e.g. GX at 145 MeV/c
• Top measured field
• Bottom design calculation
• (contours _at_ 1/2x10-4)
• (Thanks to George Biallas, Tom Hiatt the
  magnet measurement facility staff, Chris Tennant,
  and Tom Schultheiss)
• Reproducibility
• Large magnets great
• Small magnets bad (consumes a lot of tune time)

29
ERL Field Quality Requirement

• DB ? dx DBl/Br (DB/B) q (dipole)
• dx ? dl M52 dx
• dl ? DEdump Elinacsin f0 (2p dl/lRF)
• Elinacsin f0 (2p M52(DB/B)q/lRF)
• Field quality DB/B needed to meet budgeted
  DEdump must improve (get smaller) for longer
  linac (higher Elinac), shorter lRF, larger
  dispersion (M52M16)
• must
• make better magnets
• use lower energy linac
• reduce M52 (dispersion)
• provide means of compensation (diagnostics
  correction knobs)

30
Put ANOTHER Way

• DB ? dxDBl/Br DBl/(33.3564 kg-m/GeV
  Elinac) (error integral)
• dl ? DEdump sin f0 (2p M52(DBl/33.3564
  kg-m)/lRF) (GeV)
• Error field integral DBl is independent of
  linac length/energy gain
• tolerable relative field error falls as energy
  (required field) goes up
• Numbers for upgrade
• DEdump 3400 MeV (DB/B)
• (which we see we have 10-4 and see few 100
  keV)
• DEdump 0.16 keV/g-cm (DBl)

31
12. RF Transients Stability

• If you energy compress during recovery, M56 is
  nonzero (wiggler to linac)
• FEL turn off/on gt phase shift gt transient beam
  loading
• Similar for beam off/on
• See Powers Tennant, ERL2007
• Big driver of RF power requirements

32
An Appeal

• This is a challenge not operational from IR
  Demo/Upgrade, but a concern given CEBAF
  CEBAF-ER experience
• PLEASE CONSIDER RECIRCULATION as cost
  savings/performance enhancement for x-fel
  drivers (and multipass ERLs)
• Quantum excitation becomes problem for emittance
  preservation, but
• Addressed in SLC, managed in a generation of
  storage rings, being attacked for CEBAF 12 GeV
  upgrade

33
(No Transcript)
34
Acknowledgements Funding by ONR, JTO, DOE
35
Details
36
Another Surface of Section

• Putting power where you dont want it
• Propagating HOMs
• Halo
• Resistive wall
• RF heating
• THz heating (mirrors)
• Momentum acceptance
• Magnetic field quality/reproducibility
• Ions
• RF Transients/stability
• Synchrotron radiation excitation (larger
  machines, e.g. CEBAF-ER)
• A dare (ERLers GO MULTIPASS X-FELers
  RECIRCULATE!)

• Cathode
• Injector Operation
• Space charge in front end (solenoid settings
• Deceleration of low energy beam in multicell
  cavity
• How to phase (observables)
• Matching across merger into long linac
• Merger Issues
• Beam quality preservation
• Space charge down linac, esp. LSC
• CSR/LSC during recirculation/compression
• BBU

37
2. Injector Operational Challenges

• At highest level
• System is moderately bright operates at
  moderate power
• Halo tails are issue
• Must produce very specific beam properties for
  rest of system, and have very limited number of
  free parameters to do so
• Space charge have to get adequate transmission
  through buncher
• steering complicated by running drive laser off
  cathode axis (avoid ion back-bombardment)
• solenoid must be reoptimized for each drive laser
  pulse length
• Vacuum levels used as diagnostic

38
Injector Operational Challenges

• 1st cavity
• decelerates beam to 175 keV, aggravates space
  charge
• E(f) nearly constant for 20o around crest (phase
  slip)
• Normal skew quad RF modes in couplers violate
  axial symmetry add coupling
• Dipole RF mode in FPC
• Steer beam in spectrometer, make phasing
  difficult
• Drive head-tail emittance dilution

39
Injector Operational Challenges

• FPC/cavity misalignment steering as big as
  dispersive changes in position
• Phasing takes considerable care and some time
• Have to back out steering using orbit measurement
  in linac
• RF focusing very severe can make beam
  large/strongly divergent/convergent at end of
  cryounit constrains ranges of tolerable
  operating phases
• Phasing
• 4 knobs available drive laser phase, buncher
  phase, 2 SRF cavity phases
• Constrained by tolerable gradiants, limited
  number of observables (1 position at dispersed
  location), downstream acceptance
• Typically spectrometer phase with care every few
  weeks miniphase every few hours

40
Miniphase

• System is underconstrained, difficult to
  spectrometer phase with adequate resolution
• Phases drift out of tolerance over few hours
• Recover setup by
• Set drive laser phase to put buncher at zero
  crossing
• (therein lies numerous tales, or sometimes
  tails...)
• Set drive laser/buncher gang phase to phase of
  1st SRF cavity by duplicating focusing (beam
  profile at 1st view downstream of cryounit)
• Set phase of 2nd SRF cavity by recovering energy
  at spectrometer BPM
• this avoids necessity of fighting with 1st SRF
  cavity
