RRC06 Results related to Other Primary Services

1

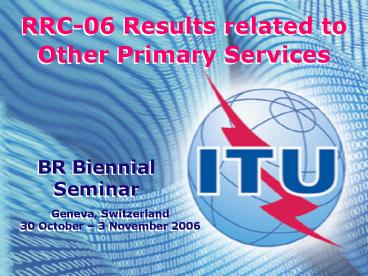

RRC-06 Results related to Other Primary Services
BR Biennial Seminar
Geneva, Switzerland 30 October 3 November 2006
2
Outline of the presentation

• Allocation and utilization issues
• RRC-04 and intersessional activities
• Results of RRC-06
• Coordination and notification of Other Primary
  Terrestrial Services (OPS)
• Implementation of RRC-06 decisions

3
Allocation aspects
4
Utilization aspects

• Prior to RRC-04 MIFR contained 8580 assignments
  to OPS in the planned bands
• Some administration intensively used OPS in the
  planned bands (RR5.312, RR5.316)
• Provisions of ST61 and GE89 provided for
  compatibility between broadcasting and OPS
• Regulatory status and utilization resulted in
  the protection of OPS during the planning

5
RRC-04 decisions concerning OPS

• Which assignments to protect ? Definition
  of existing and planned OPS assignments
• How to coordinate OPS ? Procedure of
  coordination with the broadcasting service
• What services shall be protected ? List
  of other primary services
• How to protect OPS ? Protection criteria
  (field strength, PRs, percentage of time,
  locations, propagation curves)

6
Intersessional activities

• Development of missing protection criteria and
  working assumptions by Study Group and PXT
• Coordination of OPS with broadcasting service,
  submission of assignments to the BR
• Identification of coordination requirements for
  OPS by the Bureau
• Establishment of OPS reference situations at the
  request of administrations

7
Intersessional activities
Intersessional Planning Group (IPG)
PXT
Administrations
BR
Study Groups
8
RRC-06 activities related to OPS

• Establishment of the final Reference Situation
  for OPS on 23 May 2006
• Development of the digital Plan taking into
  account other primary terrestrial services
• Development of GE06 Agreement containing
  different provisions for OPS
• Creation of List of assignments to other primary
  terrestrial services (List)

9
OPS Reference Situation by 23 May 2006

10
RRC-06 planning process
11
OPS in GE06 Agreement

• Definition of OPS Nos.1.14 and 1.15 of Art. 1
• Coordination Procedure - Section 4.2 of Art. 4
• Notification Procedure - Section 5.2 of Art. 5
• Description of OPS systems - Chapter 4, Ann. 2
• Characteristics to be submitted Annex 3
• Identification of affected adm.- Section I, Ann.
  4
• List of OPS assignments Annex 5

12
Definition of other primary services

• 1.14 Other primary terrestrial services The
  primary terrestrial services other than the
  broadcasting service, and the primary radio
  astronomy service, to which the frequency bands
  174-230 MHz and/or 470-862 MHz are allocated in
  the Planning Area in accordance with Article 5 of
  the Radio Regulations.

13
Coordination procedure - General

• Procedure is described in Section 4.2 of Art. 4
• Applied to new or modified OPS assignments
• Consists in coordination of OPS assignment with
  broadcasting service of all affected
  administrations
• Affected administrations are identified by
  territory according to Section I of Annex 4
• No coordination OPS vis-à-vis OPS is effected

14
Coordination procedure - Initiation

• A sends parameters and agreements with other
  administrations to BR
• Electronic forms G11 to G14 should be used
• BR identifies affected administrations
• BR publishes Special Section (SS) in BRIFIC
  within 40 days from receipt

15
Inclusion in Coordination procedure

• Adm. B asks to remove its name from the list of
  agreeing administrations BR removes the
  name and informs A
• Adm. C asks to add its name to the list of
  affected administrations BR verifies
  whether the request is justified
• If justified BR informs A and C and
  publishes Addendum to Special Section
• If not justified - BR informs C, no other
  actions

16
Coordination procedure - Seeking agreement

• Administrations attempt to reach agreement
• 50 days after SS BR asks to give decision
• 75 days after SS BR informs A on status of
  coordination
• No reply within 75 days considered as objection
• A may asks assistance. BR sends reminder
• No reply within 40 days after reminder is
  considered as agreement
• If continuing disagreement study by BR

17
Completion of coordination procedure

• A sends final characteristics to the BR
• BR publishes Part B of Special Section and
  updates the List
• If change in characteristics results in newly
  affected, the procedure is re-applied
• Time limit for coordination 24 months after the
  75 day period
• BR assistance may requested before or at any
  stage of the procedure

18
Specific features of coordination procedure

• Shortcut, if all agreements are obtained
• No reply within 75 days is considered as
  objection
• Duration of the procedure is 24 months
• Change in parameters leads to re-application of
  the procedure
• Agreement can be for a limited period
• Deletion from List if no notification is received
  under Art.11 within 12 months

19
Notification procedure (1)

• Contained in Section 5.2 of Art. 5, based on Art.
  11 of the Radio Regulations
• Notification is made not earlier than 3 months
  prior to bringing assignment into operation
• Notification is made not later than 12 months
  after entering in the List
• BR performs 2 examinations regulatory (RR),
  conformity to List (existence and parameters)
• If both findings are favourable MIFR, if
  unfavourable return to the administration

20
Notification procedure (2)

• Provision No. 5.2.4 - possibility to record
  assignment on a non-interference basis
• If continuing disagreement and there is no entry
  in List A may notify under Art.11
• BR formulates unfavourable CONFORM LIST finding
  and returns assignment
• A resubmits assignment with signed commitment
  of non-interference basis
• BR records assignment in the MIFR with
  unfavourable CONFORM LIST finding and names of
  non-agreeing administrations
• A shall eliminate interference, if occurs.

21
Implementation of RRC-06 decisions

• Modifications in TerRaSys databases (GE06, ST61,
  GE89, MIFR)
• Development of new electronic notice forms for
  OPS (G11 G14)
• Development of new calculation and verification
  software

22
RRC-06 implementation software, databases

• Creation of new Fragment GE06L in TerRaSys -
  List of OPS assignments
• Revision of findings in the MIFR, regulatory,
  CONFORM LIST findings
• Addition of new fields introduced by RRC-06 for
  application of Art. 4 and 5
• Changes in different TerRaSys programs
  receivability, validation, query, display

23
Fragment GE06L
24
RRC-06 implementation G11 G14 notices

• G11 to G14 notice types are based on T11 T14
  notices
• G11 - G14 are described in CR/261 of 3.08.06
• Administrations shall submit electronic notices
  only
• G11-G14 notices are for primary and secondary
  other services in GE06 bands
• G11 G14 are applied from 3.08.06
• T11 - T14 shall not be used under GE06

25
(No Transcript)
26
G11 G14 notices new fields

• System type code
• Maximum effective antenna height
• Effective antenna height in 36 azimuths
• Antenna gain towards the local horizon
• Signed commitment of operation on a
  non-interference basis
• Expiry date of the assignment
• Identifier of the digital entry

27
Example of GE06 application (1)

• Deployment of new fixed station in GE06 bands
• Identify affected administrations Section I of
  Annex 4 of GE06 Agreement
• Coordinate with affected administrations GE06
  protection criteria, mutually agreed methods
• Choose and prepare elec. notice to BR Annex 3,
  CR/261 of 3.8.06 (G11, Fragment GE06L)
• Apply coordination procedure Section 4.2, Art.4

28
GE06 application (2)
OPS assignment under GE06
Modification of the List (Art. 4)
Notification procedure (Art. 5)
Master Register
29
Example of GE06 application (3)

• Finalise Art. 4 procedure, BR enters FX in List
• Notify FX assignment according to Art.5
• Notification not later than 1 year after entering
  in List, not earlier 3 months prior putting into
  operation
• Notification under Art.5 Annex 3, CR/261 (the
  same G11, Fragment NTFD_RR)
• Recording FX in the List protection from future
  modifications of digital and analogue Plans
• Recording FX in the MIFR assignment in operation

30
Contact information

• Nikolai Vassiliev
• BR/TSD/FMD
• Office V 324, Tel. [phone]
• E-mail brfmd_at_itu.int
