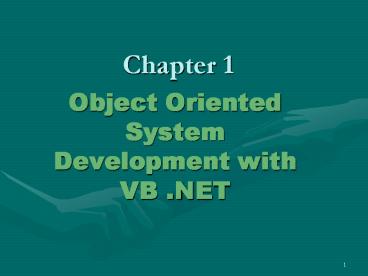

Title: Object Oriented System Development with VB .NET


1
Chapter 1
  • Object Oriented System Development with VB .NET

2
Introduction
  • Object-oriented information system development
    involves analysis, design, and implementation of
    information systems using
  • Object-oriented programming languages
  • Object-oriented technologies
  • Object-oriented techniques
  • Object-oriented information system development is
    usually referred to as OO or as the OO
    approach

3
Introduction
  • When developing business systems, OO means using
    an
  • Object-oriented approach to system analysis (OOA)
  • Object-oriented approach to system design (OOD)
  • Object-oriented approach to programming (OOP)

4
Understanding OO Development and VB .NET
  • The object-oriented approach defines a system as
    a collection of objects that work together to
    accomplish tasks
  • The objects can carry out actions when asked
  • Each object maintains its own data

5
Understanding OO Development and VB .NET
  • The procedural approach defines a system as a set
    of procedures that interact with data
  • The data are maintained in files separate from
    the procedures
  • When the procedure executes, data files are
    created or updated

6
Understanding OO Development and VB .NET
7
Object-Oriented Programming
  • Object-oriented programming started in the 1960s
  • Today many OO programming languages
  • Java is a pure OO language
  • Microsoft
  • C .NET a direct competitor to JAVA
  • With VB .NET hopes to dominate OO and Web-based
    development

8
The Microsoft .NET Framework and VB .NET
  • The .NET framework has two main components
  • .NET common language runtime (CLR)
  • manages code at execution
  • Supports variety of programming languages
  • All code compiled to MSIL
  • .NET framework class library
  • reusable classes of objects that work with the
    CLR
  • Any .NET language can use these classes
  • VB .NET is a full-blown OO programming language

9
Object-Oriented Analysis and Design
  • The standard object-oriented analysis and design
    modeling notation is
  • Unified Modeling Language (UML)
  • assumes a model-driven approach to analysis and
    design

10
Object-Oriented Analysis and Design
11
Object-Oriented Analysis and Design
  • The system development life cycle (SDLC) is a
    project management framework
  • It defines project phases and activities within
    phases
  • The phases typically are named
  • Planning
  • Analysis
  • Design
  • Implementation
  • Support

12
Object-Oriented Analysis and Design
  • OO developers usually follow an iterative
    approach to analysis, design, and
    implementation
  • Prototyping and joint application development
    (JAD) are usually part of OO development
  • Prototyping creating a working model of one or
    more parts of a system to give users a chance to
    see and evaluate something concrete
  • During JAD sessions, key system stakeholders and
    decision makers work together to define system
    requirements and designs

13
Object-Oriented Analysis and Design
  • The following are also required when using OO
    development, as they are in traditional system
    development
  • Project management
  • Interviewing and data collection
  • User interface design
  • Testing
  • Conversion techniques

14
Understanding Object-Oriented Concepts
  • Object-oriented development assumes that a system
    is a collection of objects that interact to
    accomplish tasks

15
Objects, Attributes, and Methods
  • An object (nouns) is a thing that has attributes
    (adjectives) and behaviors (verbs)
  • A GUI object
  • uses graphics, such as a button or label
  • has attributes (adjectives), which are
    characteristics that have values
  • have behaviors or methods (verbs), which
    describe what an object can do

16
Objects, Attributes, and Methods
  • OO systems also contain problem domain objects
  • a business system might use
  • Customer objects
  • Order objects
  • Product objects
  • What attributes or methods might be assigned?
  • Objects interact by sending messages to each
    other
  • Tasks to be carried out is the main concept of
    OOA and OOD

17
Encapsulation and Information Hiding
  • Encapsulation
  • an object has attributes and methods combined
    into one unit
  • programmer does not need to know the internal
    structure of the object to send messages to it
  • Information hiding
  • Using encapsulation to hide the internal
    structure of objects, protecting them from
    corruption

18
Encapsulation and Information Hiding
  • Each object also has a unique identity
  • An objects identity must be known for sending a
    message to it
  • The objects identity is usually stored as a
    memory address
  • Persistent objects are those that are defined as
    available for use over time usually stored in a
    file system

19
Classes, Instances, and Associations
  • The class defines
  • what all objects of the class represent
  • Objects can be referred to as instances of the
    class
  • When an object is created for the class, it is
    common to say the class is instantiated
  • The terms instance and object are often used
    interchangeably

20
Classes, Instances, and Associations
21
Classes, Instances, and Associations
  • Objects maintain association relationships among
    themselves
  • Some association relationships are one-to-one,
    and some associations are one-to-many
  • UML refers to the number of associations as the
    multiplicity of the association

22
Classes, Instances, and Associations
23
Inheritance and Polymorphism
  • Inheritance
  • one class of objects takes on characteristics of
    another class and extends them
  • For example
  • Person Generalization - Superclass
  • Customer
  • Employee
  • Student
  • All are specialization or SubClasses of Person
  • Can extend Person with additional Attributes and
    Methods
  • What might be another example of Inheritance?

24
Polymorphism
  • Polymorphism
  • the way different objects can respond in their
    own way to the same message
  • Classes are polymorphic if their instances can
    respond to the same message differently
  • Example
  • Bank Account ComputeInterest Method
  • Savings
  • Certificate of Deposit
  • Checking

25
Benefits of OO Development
  • The two main reasons
  • Naturalness
  • people usually think about their world in terms
    of objects
  • OOA, OOD, and OOP all involve modeling classes of
    objects
  • Reuse
  • Classes and objects can be invented once and used
    many times
  • class libraries that contain predefined classes
  • Programmers use these classes to create their own
    objects

26
Introducing Three-Tier Design
  • The book is organized according to an approach to
    OO development called three-tier design
  • Three-tier design requires
  • GUI classes Presentation Presentation Tier
  • Problem domain classes Business Rules
    Business Tier
  • Data access classes Data Data Tier

27
Part 1 Object-Orientation and VB .NET
Fundamentals
  • Part 1 covers OO concepts and introduces the VB
    .NET programming language
  • This part includes chapters 1, 2, 3, 4 and 5

28
Part 2 Developing Problem Domain Classes
  • Part 2 shows how to use VB .NET to create new
    problem domain classes that are specific to the
    business system being developed
  • Part 2 includes chapters 6, 7, 8 and 9

29
Part 3 Developing GUI Classes
  • Part 3 describes how to create graphical user
    interface classes with which the user can
    interact
  • The GUI classes in turn interact with problem
    domain classes
  • Part 3 includes chapters 10, 11 and 12

30
(No Transcript)
31
Chapter 2
  • The Visual Studio .NET Development Environment

32
Visual Studio .NET
  • Visual Studio .NET is
  • Integrated Development Environment (IDE) used to
  • Create .NET projects
  • Compile and execute programs
  • Design GUI front ends (forms)
  • Debug programming logic
  • Contains extensive help facilities
  • Dynamic help
  • Context-sensitive help F1
  • IntelliSense

33
Understanding the Start Page
34
Creating a Project Using VB .NET
  • To create a VB .NET project, identify
  • Type of project
  • Template to use
  • a pattern for creating a specific type of
    application
  • Project name and location
  • Project Name must be meaningful
  • Customize this location

35
Understanding the Way VB .NET Organizes Your
Programs
  • A project (.vbproj) is a mechanism for grouping
    related files, for example
  • Program files (.vb)
  • Image files
  • Other miscellaneous items
  • Startup object must be set
  • A solution (.sln) is a container for one or more
    projects
  • Solution file appears at the top of the hierarchy
    in Solution Explorer window
  • Startup project must be set

36
Using the Text Editor
  • Visual Studio .NET text editor provides
  • Standard text editing capabilities
  • Color-coding feature
  • VB Specific
  • Pretty Print
  • Code indentation feature
  • Code completion feature

37
Setting the Startup Object
  • After changing the module name within the source
    code, project properties must be changed to
    identify the new name as the startup object
  • Startup object is the module where execution
    begins

38
Compiling and Executing a VB .NET Program
  • A program can be compiled and executed using
  • Options on Build and Debug menus or toolbars
  • Shortcut key combinations
  • To compile and execute a program using menu
    options
  • Click Debug on menu bar
  • Click Start Without Debugging

39
Using the Visual Form Designer
  • A Windows application is one that runs in the
    Windows environment
  • When creating Windows applications, a visual form
    editor can be used
  • In a visual editor
  • Programmer places icons representing various
    components on the screen
  • VB .NET generates required programming statements

40
Using the Visual Form Designer
  • The visual form editor in MDE is Windows Forms
    Designer
  • Toolbox contains visual components
  • Elements can be selected from Toolbox to
    dynamically design forms
  • Properties window is used to adjust properties of
    components on the form

41
Creating a Windows Application
42
Customizing the Appearance of a Form
  • To change title of the form, use Text property in
    Properties window

43
Adding Components to a Form
  • Toolbox contains components which can be added to
    a form

44
Accessing Help
  • Most help features can be accessed through
    options on Help menu

45
Chapter 3
  • VB .NET Programming Fundamentals

46
Writing a VB .NET Module Definition
  • VB .NET code can be structured as a module
    definition, form definition, or class definition
  • Module definition begins with Module and ends
    with End Module
  • Form definition is used to create a GUI
  • Class definition is written to represent an
    object

47
Writing a VB .NET Module Definition
  • The VB .NET statements consist of keywords and
    identifiers
  • VB .NET identifiers
  • Can be of any length
  • Can include any letter or number, but no spaces
  • Must begin with a letter of the alphabet
  • VB .NET code is not case sensitive
  • Naming Conventions
  • Camel Casing
  • Comment lines
  • Begin with a single quote (')

48
Writing a VB .NET Module Definition
  • Procedures
  • begin with a procedure header
  • identifies the procedure
  • describes some of its characteristics
  • VB .NET has two types of procedures
  • Function
  • A Function procedure can return a value
  • Sub
  • A Sub procedure cannot return a value

49
Using VB. NET Variables and Data Types
  • A variable named memory location that can
    contain data
  • All variables have
  • Data type kind of data the variable can contain
  • Name An identifier the programmer creates to
    refer to the variable
  • Value Every variable refers to a memory
    location that contains data. This value can be
    specified by the programmer

50
Declaring and Initializing Variables
  • When declaring a variable, the programmer must
    specify its data type
  • VB .NET has nine primitive data types
  • Data types for numeric data without decimals
  • Byte, Short, Integer, Long
  • Data types for numeric data with decimals
  • Single, Double, Decimal
  • Other data types
  • Boolean, Char

51
Declaring and Initializing Variables
  • To declare a VB .NET variable, write
  • Keyword Dim
  • Name to be used for identifier
  • Keyword As
  • Data type
  • Example
  • ' declare a variableDim i As Integer

52
Declaring and Initializing Variables
  • A value can be assigned by the programmer to a
    variable
  • Assignment operator () assigns the value on the
    right to the variable named on the left side
  • Example
  • ' populate the variable
  • i 1

53
Changing Data Types
  • If Option Strict On
  • helps prevent unintentional loss of precision
  • Casting from one data type to another must be
    done Explicitly
  • If Option Explicit On
  • the programmer must define a variable before
    using it in a statement
  • Required in all programs

54
Using Constants
  • Constant variable with a value that does not
    change
  • Code to declare a constant is identical to the
    code to declare a variable, except
  • Keyword Const is used instead of Dim
  • Constants must be initialized in the statement
    that declares them
  • By convention, constant names are capitalized
    EX. Const SALES_TAX_RATE As Decimal 0.075

55
Using Reference Variables
  • There are two kinds of variables
  • Primitive variable
  • Declared with a primitive data type
  • Contains the data the programmer puts there
  • Reference variable
  • Uses a class name as a data type
  • Refers to or points to an instance of that class
  • Does not contain the data
  • Contains the address of an instance of a class
    that contains the data

56
Using Reference Variables
57
Computing with VB .NET
  • VB .NET uses
  • Arithmetic operators (, , , /) for addition,
    subtraction, multiplication, and division
  • Remainder operator (Mod) produces a remainder
    resulting from the division of two integers
  • Integer division operator (\) to produce an
    integer result
  • Caret () for exponentiation
  • String concatenation operator

58
Order of Operations
  • Parenthesis
  • Exponents
  • Multiplication / Division
  • Integer Division
  • Modulus
  • Addition / Subtraction

59
Assignment Operators
  • , -, , / , \, intTotal intTotal
    intStudentScore
  • Can be written
  • intTotal intStudentScore

60
Computing with VB .NET
  • Math class contains methods to accomplish
    exponentiation, rounding, and other tasks
  • To invoke a Math class method, write
  • Name of the class (Math)
  • A period
  • Name of the method
  • Any required arguments
  • Example Math.Pow(5,4)

61
Writing Decision-Making Statements
  • Selection statements evaluate conditions and
    execute statements based on that evaluation
  • VB .NET includes If and Select Case statements
  • If statement
  • Evaluates an expression
  • Executes one or more statements if expression is
    true
  • Can execute another statement or group of
    statements if expression is false

62
Writing Decision-Making Statements
  • Select Case statement
  • Evaluates a variable for multiple values
  • Executes a statement or group of statements,
    depending on contents of the variable being
    evaluated

63
Writing If Statements
64
Writing If Statements
  • VB .NET If statement has two forms Simple If and
    If-Else
  • Simple If
  • Evaluates an expression
  • Executes one or more statements if expression is
    true
  • If expressions then statement(s)End If

65
Writing If Statements
  • If-Else
  • If expression Then statements
  • Else
  • statements
  • End If

66
Logical Operators
  • AND
  • OR
  • NOT
  • If (intAge gt 20) And (intAge lt 35) then
  • statements
  • End if
  • .NET will short circuit conditional testing as
    soon as it can determine result

67
Nested IFs
If intAge gt 20 Then If intAge lt 35
Then statements
Else statements End If Else
statementsEnd If
68
Writing Select Case Statements
  • Select Case statement
  • Acts like a multiple-way If statement
  • Transfers control to one of several statements,
    depending on the value of an expression
  • Select intStudentAgeCase is gt 21
    statements
  • Case 17 to 18
  • statements
  • Case 10,12,14
  • statementsCase Else
  • statements
  • End Select

69
Writing Loops
  • Loops repeated execution of one or more
    statements until a terminating condition occurs
  • Three types of loops
  • Do While (condition is true) While (condition
    is true)
  • statements
    statements
  • Loop
    End While
  • Do Until (until condition is true)
  • statements
  • Loop
  • For Next
  • Early out
  • Exit Do, Exit For, Exit While

70
Writing Post-Test Loops
  • Programming languages provide two kinds of loops
  • Pre-test loop tests the terminating condition at
    the beginning of the loop
  • Post-test loop tests the terminating condition at
    the end of the loop

71
Writing Post-Test Loops
  • Do
  • statements
  • Loop While (condition is true)
  • Do
  • statements
  • Loop Until (condition becomes true)
  • For Next and While loops are always pre-test

72
Writing For Next Loops
  • VB .NET For Next loop
  • loop counter
  • initialization
  • incrementing defaults to 1, can be any /-
    value
  • pre-test logic Example
  • ' for next loop
  • For i 1 To 3 Step 1
  • Console.WriteLine("for next loop i " i)
  • Next

73
Writing Nested Loops
  • Nested loop
  • A loop within a loop
  • Can be constructed using any combination of Do
    While, Do Until, or For Next loops

74
Declaring and Accessing Arrays
  • Arrays create a group of variables with the same
    data type
  • In an array
  • Each element behaves like a variable
  • All elements must have the same data type
  • Elements either can contain primitive data or can
    be reference variables

75
Declaring and Accessing Arrays
  • Arrays can be either one-dimensional or
    multi-dimensional
  • One-dimensional array consists of elements
    arranged in a row
  • Two-dimensional array has both rows and columns
  • Three-dimensional array has rows, columns, and
    pages
  • VB .NET implements multi-dimensional arrays as
    arrays of arrays

76
Using One-Dimensional Arrays
  • Declare a 5-element array with of integers
  • ' declare an integer array with 5 elements
  • Dim intTestScores(4) As Integer
  • Accessing individual array elements intTestScores
    (0)
  • Subscript (Index) must be an integer
  • Literal - (1)
  • Identifier (intCounter)
  • Relative reference (intCounter 2)
  • Expression (intAge intMultiplier)
  • Length attribute returns number of elements

77
Using One-Dimensional Arrays
  • Code to initialize the array elements
  • testScores(0) 75
  • testScores(1) 80testScores(2)
    70testScores(3) 85testScores(4) 90
  • An array can be declared and populated using a
    single statement
  • Dim testScores() As Integer 75, 80, 70, 85,
    90

78
Using One-Dimensional Arrays
79
Using Multidimensional Arrays
  • Conceptually
  • A two-dimensional array is like a table with rows
    and columns
  • A three-dimensional array is like a cube, with
    rows, columns, and pages
  • Each dimension has its own index
  • Declare an Integer array with five rows and two
    columns
  • Dim testScoreTable(4, 1) As Integer
  • Length attribute returns total number of
    elements Example testScoreTable.Length returns
    10
  • GetLength(dimension) returns the number of
    elements in a specific dimensionExample
    testScoreTable.GetLength(0) returns 5

80
Using Multidimensional Arrays
81
(No Transcript)
Write a Comment
User Comments (0)
About PowerShow.com
