Title: Drill Press Safety


1

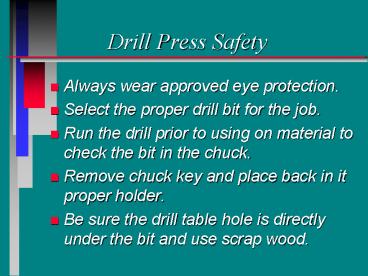

Drill Press Safety
  • Always wear approved eye protection.
  • Select the proper drill bit for the job.
  • Run the drill prior to using on material to check
    the bit in the chuck.
  • Remove chuck key and place back in it proper
    holder.
  • Be sure the drill table hole is directly under
    the bit and use scrap wood.

2
Drill Press Safety
  • Secure all work in a clamp or vise when drilling,
    no exceptions.
  • If the bit gets stuck in the material, stop the
    press and address the problem.
  • Make all adjustment prior to turning the press
    on.
  • Clear material when drilling large or deep holes.
  • Locate center holes with a punch or awl.

3
Drill Press Safety
  • Make all speed adjustments with the motor on and
    consult instructor prior to doing so.
  • never use auger bits in the drill press.
  • Do not leave the drill press until it has
    stopped.
  • Remove and return all bits after use.

4
Disc Spindle Sander Safety
  • Always wear approved eye protection.
  • Make any adjustments with the power off.
  • Make sure the abrasive surface is not torn or
    frayed.
  • Keep hand at least two inches from the abrasive
    surface.
  • Sand only on the downward side of the disc.

5
Disc Spindle Sander Safety
  • Keep material flat on the table when sanding.
  • Do not use the shaping machines to remove more
    than 1/8 of material.
  • Keep material off of the disc until it has
    started to rotate.
  • Do not leave any sander until it has come to a
    complete stop.
  • Do not use one location on the abrasive surface.

6
Band and Scroll Saw Safety
  • Always wear approved eye protection.
  • Check material for foreign objects before
    processing.
  • Adjust the guide post 1/4 above the material
    while the machine is off.
  • Remove scrap only when the machine has stopped.
  • Allow the saw to reach full operation speed
    before using.

7
Band and Scroll Saw Safety
  • Feed material slowly, do not force, let the
    machine do the work.
  • Never allow anyone to stand to the right of the
    machine. If the blade breaks, injury may occur.
  • Ask the instructor before cutting round objects
    such as dowels.
  • Use relief cuts when cutting small curves, do not
    allow the blade to twist.

8
Band and Scroll Saw Safety
  • If the blade breaks, stand back and inform the
    instructor.
  • Do not leave the machine until it has stopped.
  • Avoid backing out of cuts, if needed, turn the
    power off.

9
Radial Arm Saw
  • Always wear approved eye protection
  • Remove any jewelry, loose clothing, and tie back
    long hair
  • Make all adjustments with the machine off
  • Make sure the saw travels easily on the arm and
    also retracts to the rear of the table after the
    cut is finished

10
Radial Arm Saw
  • Adjust the anti-kickback device to 1/8 above the
    material and check before cutting
  • Make sure material to be cut is tight against the
    fence before cutting
  • Make sure to let the teacher check any
    adjustments to the saw other than the original
    setup

11
Radial Arm Saw
  • Keep fingers out of the cut line and at least 3
    away from the table
  • Do not cut material shorter than 6 in length or
    wider than the saws capability
  • Use a push-stick to support small pieces of
    material
  • Get help or use a support with long material stock

12
Radial Arm Saw
  • Do not leave the machine until the blade has come
    to a complete stop

13
Plastic Processing Information and Safety
  • Eastview High School
  • Fabrication Laboratory

14
Introduction to Plastics
  • Plastics are an excellent material to prototype
    with
  • Plastics can be processed on the drill press,
    disc sander, bandsaw and radial arm saw
  • Plastics may be shaped, glued and buffed to a
    clean finish

15
Introduction to Plastics
  • The type of plastic that we use most is acrylic
    otherwise know as Plexiglass
  • Some of the problems with plastic is that it is
    difficult to work with, scratches VERY easily,
    can crack or break, and attracts dirt or dust

16
Cutting Acrylic Plastic
  • Acrylic plastics can also be cut on the table saw
  • The hacksaw it the only good hand tool to cut the
    material with
  • Another way to cut thin sheet plastic is to score
    the plastic and then crack the plastic

17
Cutting Acrylic Plastic
  • Sheet plastic has a protective covering on it
  • This protects the plastic while processing is
    being done
  • Do not remove this film until processing is
    complete
  • You may still work with uncovered scrap, but be
    careful

18
Cutting Acrylic Plastic
  • One safety concern when cutting plastic is the
    melting factor
  • When the plastic is processed heat is generated
    which in turn melts the plastic
  • This residue can be very hot and can burn you
    slightly

19
Cleaning and Finishing an Edge
  • When cutting and processing acrylic plastic the
    edges tend to look rough and unfinished
  • This may be removed and finished to any degree
    that meets your needs
  • The following steps must be followed in order to
    achieve the best finish possible

20
Cleaning and Finishing an Edge
  • DO NOT REMOVE THE PROTECTIVE COVERING!
  • Scrape all the edges until all of the saw marks
    are removed
  • Using fine sandpaper and a block of wood, sand
    the edges until they are smooth and clean

21
Cleaning and Finishing an Edge
  • Using the large buffing wheel, buf the edges
    until they are clear
  • Use the smaller buffing wheel, buff the edges
    until the clear edge is smooth

22
Buffer Safety Rules
  • Always wear safety glasses
  • Remove loose clothing and jewelry
  • Always buff using the lower half of the wheel
  • Always stand to the side when buffing
  • Never use a rag to hold the work while you are
    buffing

23
Buffer Safety Rules
  • Use extra caution when buffing around corners,
    openings or areas where the wheel could grab
    and throw the material
  • Always use two hands
  • Watch that the material does not overheat and
    burn your hands

24
Buffer Safety Rules
  • Only one person may operate the buffer at a time
    and no one else should be in the safety zone
    while someone is buffing
  • DO NOT stop the buffer with your hand

25
Strip Heater Safety Rules
  • Always wear safety glasses
  • Never leave the strip heater while you are using
    it
  • Always assume that the heater is VERY HOT!
  • Make sure the plastic never touches the element

26
Strip Heater Safety Rules
  • Only use acrylic plastic on the heater
  • Heated plastic is extremely hot, use gloves
  • Be prepared to bend the plastic BEFORE you start
    heating
  • More than one person may work on the strip heater

27
Strip Heater Safety
  • Watch for bubbling or sagging which means the
    plastic is overheated
  • Test for flexibility while heating
  • Do not shape plastic on the table

28
Oven Safety
  • Use same safety rules as strip heater
  • Always use gloves when handling plastic out of
    the oven
  • The oven needs 10 minutes to heat up
  • Do not change the settings on the oven

29
Cement Processes and Safety
  • Clean all edges that are to be glued
  • Pieces must be flush to each other no gaps
  • Since the glue can actually melt the plastic,the
    more you put on the worse the bond will be
  • Leave the materials together overnight for best
    results

30
Cement Processes and Safety
  • Do not get the glue on your skin or clothes
  • Wash your hands if you get it on your skin
  • Do not poke or fool around with glue guns
