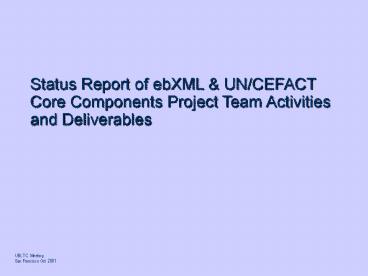

Status Report of ebXML UN/CEFACT Core
Components Project Team Activities and
Deliverables
2
eb XML
Transport, Routing Packaging and Registry
Repository
Business Models and Core Components
Syntax Neutral Semantics
Standard XML Technical Framework
3
ebXML

• UN/CEFACT OASIS
• Combining 30 yrs trade facilitation,
• 15 yrs of traditional EDI and
• 20 yrs of SGML electronic documentation standards
• to develop global business process choreographies
  and semantic definitions for e business

4
ebXML Vision
Vision

• A global electronic market place where
  enterprises of any size anywhere can
• Find each other electronically
• Conduct business through the exchange of XML
  based messages
• Using standard message structures
• According to standard business process sequences
• With clear business semantics
• According to standard or mutually agreed trading
  partner agreements
• Using off the shelf purchased business
  applications

5
Interoperable electronic business
ebXML Syntax Neutral Semantics Vision
ebXML compliant syntax implementations
XML
UN/EDIFACT
X.12
Etc.
UN Layout
6
Scope of CC Project Team

• Discovery and Analysis methodologies
• Sample Catalog of Core Components
• Naming Conventions Rules
• Sample Dictionary
• Classification of Context
• Describe conditions of reuse rules for document
  assembly
• Extension Methodology
• Describe ways in which components are reused

7
Standards Bodies UN/CEFACT TMWG, EWG, BPAWG
OASIS, W3C eCo ANSI X.12 ISO TC154 BSR
TC68 (Finance) OMG CEN/ISSS XML/EDI
Workshop DAMSAD
Industry Groups OTA ATA (Air Travel) MIST
(European Trade Transport) ACORD GDV
(Insurance) AIAG (Automotive) OAG (ERP) SWIFT
(Finance) EAN.UCC GCI (Retail) EDIFICAS
(Accounting Audit) BASDA (Accounting
ERP) EDIFICE RosettaNet (Electronics) Biztalk

8
ebXML CC Results as of Vienna May 2001

• Technical Reports/White Papers approved
• Concept document and overview of deliverables
• Core Component Discovery and Analysis Methodology
• Naming Conventions for core components
• Sample Catalog of core components
• Sample Data Dictionary
• Context Re-Usability of Core Components
• Sample Catalog of Context Drivers
• Document Assembly Context Rules

9
Status of UN/CEFACT CC TS Oct 2001

• At stage 4 of the UN/CEFACT Open Development
  Process
• Revised Draft to be sent for Open Review Nov
  2001
• To be published in three sections -
• Core Components Technical
• . Working Process and Methodology for Business
  Users
• . Technical Details - Core Components and Context
• . Technical Details - Storage and Metadata
• . Full Glossary of Terms
• Core Components Primer
• Catalogue of Discovered Core Components

10
(No Transcript)
11
Dictionary Entries

• Syntax neutral name format
• Oxford English basis
• Multi-level entries
• Unique Global Identifier (UID)
• Other countries can add their language
  equivalents
• The Naming Conventions are designed to support
• extensions to other languages
• We expect in the short term, at least,
• French
• German
• Japanese

12
(No Transcript)
13
(No Transcript)
14
Domain 1
Domain 2
DISCOVERY

Discovery Analysis Methodology
Domain N
Processes/ Components
DISCUSS
ANALYSIS
Issues
AGREE
Domain Processes/ Components
Common Processes/ Core Components
Specific Domain Processes/ Components
Re-Used Processes/ Components
REGISTRY REPOSITORY
15
Context
Context drivers expressed as hierarchical
classifications can define business process
choreographies and refine core components. The
classifications are

•   Product Classification Context the goods or
  services concerned
•   Industry Classification Context the relevant
  trading partner industry
•   Geopolitical Context where the business
  process is to be conducted
•   Official Constraints Context Any legal
  restrictions or requirements
•   Business Process Role Context the role of
  the sender or receiver
•   Supporting Role Context the role of any
  other relevant party
•   System Capabilities Context any major
  restrictions derived from the type
• of system e.g. legacy requirements
  etc.

16
ebXML/X12/EWG to May 2001
UN/CEFACT
OASIS
X12
GOAL Global Standard Business
Messages Based on Common Business Models and
Common Core Components
17
X12 UN/EDIFACT Collaboration (JCC) Timetable
Sep 2000 EWG and X12 leadership proposed
collaborative CC effort and
EWG formally agreed Oct 2000 X12 formally
agreed Nov 2000 ebXML meeting in Tokyo Feb 2001
X12 meeting in Seattle ebXML meeting in
Vancouver Mar 2001 EWG meeting in
Washington May 2001 Final ebXML meeting in
Vienna Jun 2001 X12 meeting in St Louis Sep
2001 EWG meeting in Rotterdam where JCC as a
title for this continuing collaborative
effort ceased but work continues Oct 2001 X12
meeting in Miami Oct 2001 ebTWG meeting in San
Francisco Next meetings Feb 2002 ebTWG
meeting in Seattle Feb 2002 X12 meeting in
Seattle Mar 2002 - EWG in Barcelona March 2002

18
After ebXML?
Transport, Routing Packaging and Registry
Repository
Business Models and Core Components
UN/CEFACT EWG, ebWG, ebTWG BPAWG!
OASIS
Syntax Neutral Semantics
Standard XML Technical Framework
19
Interoperable electronic business
ebXML Syntax Neutral Semantics Vision
ebXML compliant syntax implementations
XML
UN/EDIFACT
X.12
Etc.
UN Layout
20
XML syntax implementation pieces are missing!
XML business document design rules, XML syntax
core component structures and ebXML (UN/CEFACT)
CC compliant XML document schemas
Where will this work be done and by whom UBL?
21
The home of future CC work is currently unclear

• UN/CEFACT EWG future under discussion
• UN/CEFACT ebWG under construction
• UN/CEFACT ad hoc ebTWG in transition
• UN/CEFACT TMWG hovering
• Working members must be representative of
  business and vendor interests i.e. from OASIS
  and EDIFACT/X12 business domain groups plus other
  XML initiatives OAGI, Rosettanet, xBRL etc. etc.

22
3.3
3.3
e
-
Business Standards Development Management
e
-
Business Standards Development Management
Domain e
-
business Standards
External e
-
Business
Domain e
-
business Standards
External e
-
Business
3.5
3.11
3.5
3.11
Work
Standards Work
Work
Standards Work
Business User
Business User
Business User
Business User
3.4
3.4
Requirements
Requirements
3.6
3.6
Business Standards Development Work
Business Standards Development Work
Business Operational View
Business Operational View
BPM
BPM
CCL
CCL
All
All
new material
new material
new material
new material
BPM
BPM
3.9
3.9
eb
Repository
eb
Repository
All
All
Cross
Domain Business
CCL
CCL
-
-
3.7
3.7
Assessment, Harmonisation Approval
Syntax
Syntax
Solutions
Solutions
3.8
3.8
Technical Syntax Solutions
Technical Syntax Solutions
Functional Service View
Functional Service View
XML
EDIFACT
edocs
etc
XML
EDIFACT
edocs
etc
UBL?
3.10
3.10
Business User Implementation
Business User Implementation
23
3.8 Technical syntax solutions
Each of these will take the duly assessed,
harmonised and approved business requirements and
process specifications and develop the required
syntax solution(s), using existing library
content, and ultimately adding new solutions into
the library.
Two technical solution areas have been
identified

• UN/EDIFACT - this would consist of an
  instantiation of the CCL in the form of
  directories and UNSM (United Nation Standard
  Messages)
• XML (UBL?) - this would consist of an
  instantiation of the CCL in the form of a
  commonly accepted directory and document schemas

Each specific syntax implementations will require
their own infrastructure, which will include at
least technical assessment, document
design/generation, syntax rules, architecture and
maintenance within each.
