Generic Programming using Adaptive and AspectOriented Programming

1

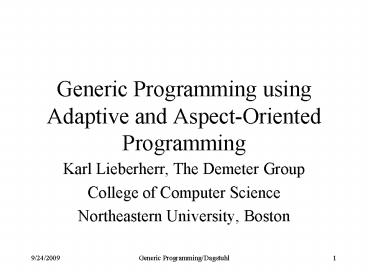

Generic Programming using Adaptive and
Aspect-Oriented Programming

• Karl Lieberherr, The Demeter Group
• College of Computer Science
• Northeastern University, Boston

2
Overview

• Generic programming
• Aspect-oriented and Adaptive Programming
• Adaptive Plug-and-Play Components
• Pricing Policies (from an IBM code generator)
• Graph Algorithms (Cycle checking)
• Demeter/Java
• Conclusions

3
What is Generic Programming?

• Expressing algorithms with minimal assumptions
  about data abstractions, and vice versa, thus
  making them as interoperable as possible
• Lifting of a concrete algorithm to as a general
  level as possible without losing efficiency

4
What is Generic Programming?

• Lifting of a concrete algorithm to as a general
  level as possible without losing efficiency i.e.,
  the most abstract form such that when specialized
  back to the concrete case the result is just as
  efficient as the original algorithm.
• From Dagstuhl 98 conference on generic programming

5
What is Generic Programming?

• Generic programming is about making programs more
  adaptable by making them more general
• Embody non-traditional kinds of polymorphism
• Parameters of a generic program are rich in
  structure (programs, types, graphs).
• From Workshop on Gen. Prog. Sweden 98

6
How does Aspect-Oriented Programming help?

• Tease out bigger chunks than classes
• Tease out issues which cross-cut many classes
• Describe different issues separately making
  minimal assumptions among them Avoid tangling of
  issues
• Express issues by aspect descriptions which are
  compiled into behavior by a weaver

7
Many evolution problems come from tangled
designs/programs

• Code for a requirement is spread through many
  artifacts. In each artifact, code for different
  requirements is tangled together.
• For example
• Information structure is tangled with behavior.
  We want structure-shyness (Lieberherr 92).
• Synchronization code is tangled with sequential
  code.

8
Eliminating drawbacks with Aspect-Oriented
Programming (AOP)

• Solution Split software into cooperating,
  loosely coupled components and aspect-descriptions
  .
• Untangles designs/programs and eliminates
  redundancy.
• Aspect description examples marshalling,
  synchronization, information structure etc.

9
Cross-cutting of components and aspects
better program easier to understand!
ordinary program
structure-shy functionality
Components
structure
Aspect 1
synchronization
Aspect 2
10
What is adaptive programming (AP)? A special case
of AOP

• One of the aspects or the components use graphs
  which are referred to by traversal strategies.
• A traversal strategy defines traversals of graphs
  without referring to the details.
• Adaptive programming is aspect-oriented
  programming with traversal strategies.

11
Flexibility versus Complexity

• AP adds flexibility
• BUT simplifies designs and programs
• Partial evaluation makes efficient

12
Families Nature Analogy for AP
same seeds in different climates
similar trees same strategy in different class
graphs similar traversals
warm climate
cold climate
13
Why Traversal Strategies?

• Law of Demeter a method should talk only to its

• friends
• arguments and part objects (computed or
  stored)
• and newly created objects
• Dilemma
• If followed Small method problem of OO
• If not followed Unmaintainable code
• Traversal strategies are the solution to this
  dilemma

10 year anniversary
Widely used, for example, at JPL for the Mars
exploration software.
Graph patterns for implementing patterns
14
Software Architecture View

• Software architectures where connections
  necessary for a specific behavior are specified
  approximately, yet precisely, using regular
  expression-like constructs.
• Improves on conventional architectures by
  supporting structure-shyness allowing both
  simpler and more flexible architectures.

15
Implementation of traversal strategies

• Based on novel applications and variations of
  standard techniques
• Intersection of non-deterministic finite automata
• Simulation of non-deterministic finite automata

16
How to do the interesting work?

• Traversal strategies only navigate.
• Visitors and adaptive plug and play components
  (APPCs) specify what is done in addition to
  navigation.
• APPCs
• change group of classes during a traversal
• plug-and-play organization based on ports
• parameterized by traversal strategies

17
Adaptive Plug-and-Play Components (APCCs)

• Specify two interfaces
• to the class structure they are supposed to
  visit
• to other APPCs they may be connected to

18
Pricing Policies with APPCs
APPC Pricing Interface s1 from lineItem
LineItemParty via item ItemParty to charges
ChargesParty s2 from lineItem
LineItemParty to pricer PricerParty s3
from lineItem LineItemParty to customer
Customer PricerParty Float
basicPrice(ItemParty item) Integer
discount(ItemParty item, Integer qty, Customer
customer) ChargesParty Float
cost(Integer qty, Float unitP, ItemParty item )

19
Pricing Policies with APPCs
APPC Pricing Behavior LineItemParty
public Float price (Integer qty ) Float
basicPrice, unitPrice Integer discount
basicPrice pricer.basicPrice() discount
pricer.discount(item, qty, customer)
unitPrice basicPrice - (discount
basicPrice) return (unitprice
additionalCharges(unitPrice, qty)) Float
additionalCharges(float unitP, Integer qty)
Interger total 0 during s1
ChargesPartytotal cost(qty, unitP, item)
return total
20
(No Transcript)
21
Pricing Policies with APPCs

• Let us generate different pricing schemes out of
  the generic pricing component
• specified by the pricing adaptive plug-and-play
  component
• Scheme 1 Regular Pricing
• each product has a base price which can be
  discounted depending on the number of the
• units ordered
• Scheme 2 Negotiated Pricing
• A customer may have negotiated certain
  prices and discounts for particular items

22
Pricing Policies with APPCs
Scheme 1 Regular Price
Quote float regPrice() Pricing with
LineItemParty Quote PriceParty HWProduct
basicPrice regPrice discount
regDiscount ItemParty HWProduct
ChargesParty Tax cost taxCharge
Roles LineItemParty PriceParty ItemParty Charge
sParty
Played by Quote HWProduct Tax
23
Pricing Policies with APPCs
Scheme 2 Negotiated Price
Quote Float negPrice() Pricing with
LineItemParty Quote PriceParty Customer
basicPrice negProdPrice discount
negProdDiscount ItemParty HWProduct
ChargesParty Tax cost taxCharge

Roles LineItemParty PriceParty ItemParty Charge
sParty
Played by Quote Customer HWProduct Tax
24
APPC Compositions
Graph algorithms Marking Basic Marking
Algorithm Cycle Cycle Checking
addition Connected Connected Component Addition
25
Composing APPCs
APPC Marking Interface s from
Graph to Adjacency to Vertex to Adjacency
Behavior Adjacency bool marked
false myRole() bool visited
marked if (marked false) marked
true next() return visited

26
Composing APPCs
APPC Connectivity Interface s
from Graph to-stop Adjacency Behavior
Integer count 0 return count Adjacency
myRole() if ( next() false ) count
1
27
Composing APPCs
APPC CycleCheck Interface s from
Graph to Adjacency to Vertex to Adjacency
Behavior Stack stack Stack
new() Adjacency myRole() if
(stack.includes(this)) System.out.printIn(
cycle'' stack.print) else
stack.add(this) next() stack.remove(th
is)
28
Composing APPCs
Want to do connectivity and cycle check
simultaneously
29
Instantiating APPC Compositions
ConnectivityAndCycleCheck (Connectivity
compose DGCycleCheck) (Marking) (Connectivity
gt CycleCheck gt Marking, Connectivity,
CycleCheck lt Marking) // INSTANTIATING FOR
CONCRETE GRAPH STRUCTURE s Network via
Adjacency through neighbors via Node through
lt-source to Adjacency Network void
connectivityAndCycleCheck()
ConnectivityAndCycleCheck during s with
Network Graph Node Vertex
30
Adaptive Plug-and-Play Components

• Builds on Batorys mixin layers (ECOOP 98) and
  supports adaptiveness by parameterization with
  traversal strategies
• Modification of a group of collaborating classes
• Encapsulate group of related adaptive programs

31
Goal of Demeter/Java
Tools using Demeter ideas Demeter/C,
Demeter/CLOS (BBN), Demeter/Perl5 (MIT), AspectJ
(Xerox PARC)

• Avoid code tangling and redundancy
• traversal strategies and visitors untangle
  structure and behavior
• visitors and adjusters untangle code for distinct
  behaviors
• COOL untangles synchronization issues and
  behavior
• RIDL untangles remote invocation issues and
  behavior and structure

32
Success indicators

• Used in several commercial projects (HP (printer
  family installation), GTE (compiler), Motorola
  (pattern generator), Novell (schema comparator)
• AspectJ from Xerox PARC based on Cristina Lopes
  Ph.D. thesis (1998) at Northeastern University
  supported by Xerox PARC.

33
Success indicators Commercialization effort
StructureBuilder from Tendril Software Inc. Has
support for traversals and generates code
controlled by structure.
www.tendril.com
34
Conclusions

• APPCs as a useful abstraction for generic
  programming
• How to use them with C and STL simulate them
  using the visitor design pattern
• Traversal strategies are a key component of APPCs

35
Some Connections

• Complete traversals APPCs need that too
• Polytypic Programming APPCs are polytypic
• Konstanz team Generic graph algorithms APPCs
  seem to help
• Traversal Strategy Graphs can be explained in
  terms of temporal logic (CTL formulas)

36
Partial Evaluation Ray Tracing
Viewpoint determines how scene appears. Avoid
recomputations from viewpoint to viewpoint
(imagine flying over scene). For
example, intersection of objects can be computed
once and reused for several viewpoints.
37
Partial Evaluation Ray Tracing
Scene(S)
ViewPoint(VP)
ViewPoint(VP)
P(S,VP)
P(VP) S fixed
Scene with light info
Scene with light info
38
Partial Evaluation Ray Tracing
Scene(S)
ViewPoint(VP)
ViewPoint(VP)
P(VP) S fixed
In C
P(S,VP)
PE for C
PE for C
PE for C
Scene with light info in C
Output Scene with light info in C
39
Partial Evaluation Adaptive Programming Component
OG
OG
SG
CG
P(SG,CG,OG)
P(OG) CG fixed SG fixed APPCs fixed
APPCs
ClassGraph CG ObjectGraph OG StrategyGraph SG
PE for graph language
PE for graph language
Output Graph Language with code annotations
Output
40
Similarities

• Ray tracing
• freeze scene
• transform program to gain efficiency
• domain specific computation
• use general partial evaluation algorithms

• AP
• freeze class graph
• freeze strategy graph
• transform program to gain efficiency
• general-purpose computation
• use specialized partial evaluation algorithms
  (automata intersection)

41
Similarities

• Ray tracing
• use general partial evaluation algorithms for a
  programming language such as C.

• AP
• use specialized partial evaluation algorithms
  (automata intersection)
• partial evaluation is done for a graph language

42
Partial Evaluation Adaptive Programming Component
OG
CG
OG
SG
CG
P(CG,OG) CG partially fixed SG fixed
P(SG,CG,OG)
ClassGraph CG ObjectGraph OG StrategyGraph SG
Output
Output
43
Aspect-Oriented Programming
44
Aspect-Oriented Programming

• Background aspects
• synchronization
• remote invocation
• Foreground aspects
• visitors
• APPCs

45
Aspect-Oriented Programming

• Implementation requires special purpose partial
  evaluators. Example

P(SG,CG,OG)
P(OG) CG fixed SG fixed
PE for graph language
46
Aspect-Oriented Programming

• Expansion of aspect description
• bounded
• synchronization
• unbounded
• structure

47
STL view
data structures
algorithms
glue iterators
parameterized by iterators
48
Demeter view
adaptive algorithms
data structures
glue traversal strategies
49
Demeter view
50
Demeter View

• Adaptive program strategies as parameters
• Class graph intended home for traversal
  strategies
• Glue traversal strategies adapt strategy
  parameters to specific class graph and check
  constraints

51
Traversal strategy types

• Traversal strategy parameters have an interface
• a traversal strategy without negative constraints
• express minimal relationships needed
• CTL expressions for ordering constraints
  (optional)

52
Modification of objects during traversal

• Validity of a traversal
• insertion or deletion
• at point to be traversed
• at point already traversed

53
Plug-and-play

• Has a specific meaning
• Self description
• Building blocks are enabled to find their own
  collaborators
• Popular in hardware

54
APPCs and composition

• Should be able to write programs to compose and
  configure APPCs?
• Ullrich Koethe It is sometimes time consuming
  and error prone to set up collaborations
  manually. Often, selecting one collaborator
  implies certain choices of other, related
  services. If these constraints must be kept
  manually gt reduced reusability

55
Composition of APPCs

• A gt B gt C
• A,B lt C
• Not good enough Need conditionals, loops, arrays
  to connect components.
