Trellis Algorithms

1

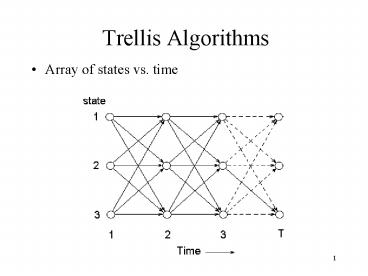

Trellis Algorithms

• Array of states vs. time

2
Trellis Algorithms

• Overlap in paths implies repetition of the same
  calculations
• Harness the overlap to make calculations
  efficient
• A node at (si , t) stores info about state
  sequences that contain Xt si
• This is the basis of dynamic programming

3
Viterbi Algorithm

• A node at (si , t) stores info about state
  sequences up to time t that arrive at si

s1
sj
Choose max path
s2
4
Viterbi Algorithm

• Define

is the best score along a single path, at
time t, which accounts for the first t
observations and ends in state si
By induction we have
Efficiently implemented using a trellis structure
5
Viterbi Algorithm
6
Viterbi Algorithm
7
Implementation
function VITERBI(observations, a, b) returns
viterbi-probability num-states ?
NUM-OF-STATES(pi) num-obs ?
LENGTH(observations) Create and initialise
probability matrix viterbinum-states1,
num-obs1 viterbi0, 0 ? 1.0 for each
time t from 1 to num-obs for each state s
from 1 to num-states max ? 0
for each previous state p from 0 to
num-states max ? MAX(max,
viterbip, t-1 ap, s bs,
observationst) end
viterbis, t ? max end end max
? 0 for each previous state p from 0 to
num-states max ? MAX(max, viterbip,
num-obs ap, FINAL-STATE) end return
max
