Title: Networking Algorithms


1

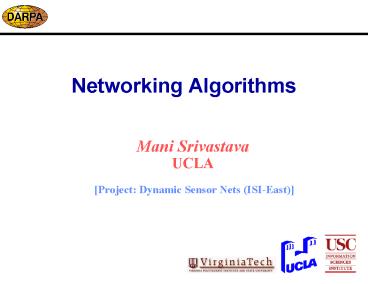

Networking Algorithms
  • Mani Srivastava UCLA Project Dynamic Sensor
    Nets (ISI-East)

2
Outline
  • Dynamic location discovery
  • Topology management
  • Dynamic MAC address assignment

3
I. Dynamic Location Discovery
  • Discovery of absolute and relative location
    important
  • Location-based naming and addressing,
    geographical routing, tracking
  • GPS not enough
  • LOS-requirements, costly, large, power-hungry
  • Ad hoc precludes trilateration with special high
    power beacons
  • also, susceptible to failure
  • Problem given a network of sensor nodes where a
    few nodes know their location (e.g. through GPS)
    how do we calculate the location of the other
    nodes?

4
Ad-Hoc Localization System (AHLoS)
Iterative Weighted Multilateration
  • GOALS
  • Localization in a distributed fashion
  • Trade-offs
  • Robustness
  • Computation vs. communication
  • Ranging using Ultrasound
  • Integrated with routing messages
  • Location discovery almost free
  • Implementation
  • Ranging using radio-synchronized ultrasound
  • 3m range, noisy
  • Accuracy
  • Iterative 10 cm
  • Collaborative 3 cm

5
Iterative Multilateration
  • Atomic multilateration applied iteratively across
    the network
  • may stall if network is sparse, of beacons is
    low, terrain obstacles

Resolved Nodes
Total Nodes
Initial Beacons
Uniformly distributed deployment in a field
100x100. Node range 10.
6
Iterative Multilateration Accuracy
50 Nodes 10 beacons 20mm white gaussian ranging
error
7
Collaborative Multilateration
  • Step 1 form Collaborative Subtrees within
    their neighborhood
  • an unknown node is collaborative if it has at
    least 3 participating neighbors
  • a node is participating if it is either a beacon,
    or if it is an unknown node that is also
    participating
  • at each node at least one of its participating
    nodes are new to the set
  • at least one of the beacons used to determine
    the position of a node should not be collinear
    with the other beacons used to determine the node
    position
  • Step II obtain initial location estimate for
    subsequent computation
  • use beacon locations hop distances to obtain
    approximate location bounds
  • Step III perform computation
  • Measurement Update part of Kalman Filter
  • Centralized, at a leader elected in the subtree
  • or, Fully Distributed
  • can start computing locations based on node
    connectivity and initial estimate

Uncertainty of estimated location in first
iteration
Uncertainty of estimated location in second
iteration
8
Example
  • Network of 30 nodes
  • 6 beacons, 24 unknowns
  • Ranging noise experimentally derived

9
Computation Communication Expense
Computation Expense Results using the FLOPS
command in MATLAB
Computation vs. Communication Tradeoff
  • Total number of transmissions
  • Centralized 70 packets
  • Distributed 416 packets
  • Centralized approach has additional overhead for
    leader election

10
II. Topology Management
  • Two phases of sensor network operation
  • Detect event
  • Relay information to users
  • Energy consumption of radio dominates that of
    sensors CPU
  • ? perform event detection continuously
  • The only energy efficient mode of the radio is
    the sleep mode
  • ? put radio to sleep as often as possible
  • Existing approaches density-energy trade-off
  • keep enough nodes awake to handle the data
    forwarding (forwarding state)
  • but for substantial energy savings we need large
    densities
  • Observation
  • most of the time, the network is only monitoring
    its environment, waiting for an event to happen
    (monitoring state)
  • Idea
  • put node radios to sleep and wake them up when
    they need to forward data
  • low duty-cycle paging channel using a 2nd radio
    trades off energy savings for setup latency

11
STEM High-level Operation
Wakeup plane
Power
f1
Tx
Time
Power
Data plane
f2
Tx /Rx
Sleep
Initiator node
Target node
Rx
Wakeup plane
Power
f1
Sleep
Time
Power
Data plane
f2
Tx /Rx
Sleep
12
Detailed Operation
Initiator node
f1
B1
B2
1. beacon received
Train of beacon packets
TRx
2. beacon acknowledge
T
f1
Target node
13
Latency Energy Analysis
Wakeup plane
f1
Data plane
f2
Forwarding state
Monitoring state
Fraction of time in the forwarding state ?
  • Setup latency
  • Energy savings

Appropriate choice of interval sizes
Mostly monitoring state ? ltlt 1 or ? gtgt 1
14
Energy-Latency Trade-off
? 101
? 102
TRx 0.225 s
? 103
? 104
  • The tradeoff between energy and delay is
    manipulated by varying T
  • T ? ? E ? TS ?
  • The energy savings increase as the monitoring
    state becomes more dominant, ? ?

15
Topology Management in Forwarding State
GAF Geographic Adaptive Fidelity Ya2001
  • Conserve traffic forwarding capacity
  • Divide network in virtual grids
  • Each node in a grid is equivalent from a traffic
    forwarding perspective
  • Keep 1 node awake in each grid at each time
  • GAF reduces the energy by a factor M
  • This factor is a function of the average number
    of nodes in a grid M

Average number of neighbors of a node
for uniformly random node deployment
16
Comparing STEM GAF
STEM
Curve of comparable energy savings
Leverage latency
?
Leverage density
GAF
17
Combining STEM and GAF forJoint
Energy-Latency-Density Trade-off
  • As in GAF, 1 node is active in each grid
  • ? the grid can be considered a virtual node
  • This virtual node runs the STEM protocol

STEM alone
? 10
GAF alone
? 30
? 60
? 100
? 200
18
III. Dynamic MAC Address Assignment
  • Wireless spectrum is broadcast medium
  • MAC addresses are required
  • In wireless sensor networks, data size is small
  • Unique MAC address present unneeded overhead
  • Employ spatial address reuse (similar to reuse in
    cellular systems)
  • MAC address, link ids
  • Two aspects
  • Dynamic assignment algorithm
  • Address representation

19
Distributed Assignment Algorithm
  • Network is operational (nodes have valid
    address)
  • Listen to periodic broadcasts of neighboring
    nodes
  • In case of conflict, notify node
  • (this node resends a broadcast)
  • Choose non-conflicting address and broadcast
    address in a periodic cycle. At this point the
    new node has joined the network.
  • Additive convergence network remains operational
    during address selection
  • Mapping unique ID to spatially reusable address
  • Algorithm also valid when unidirectional links

20
Encoded Address Representation
  • Size of the address field?
  • Non-uniform address frequency
  • Huffman encoding
  • Robust can represent any address
  • Practical address selection
  • All addresses with same codeword size are
    equivalent
  • Choose random address in that range to reduce
    conflict messages

21
Non-uniform Network Density
22
Effect of Packet Losses (? 10)
23
Scalability
  • Address assignment
  • Distributed algorithm with periodic localized
    communication
  • Address representation
  • Encoded addresses depend only on distribution

Scales perfectly (neglecting edge effects)
Assignment
Representation
24
Simulation Results
Fixed size dynamic
Our schemes
25
Dynamic Address Allocation Summary
  • Spatial reuse of address
  • Dynamic assignment algorithm
  • Localized scalability
  • Additive convergence robustness
  • Encoded address representation
  • Independent of network size scalability
  • Variable length addresses robustness
