Title: A synthetic noise generator


1

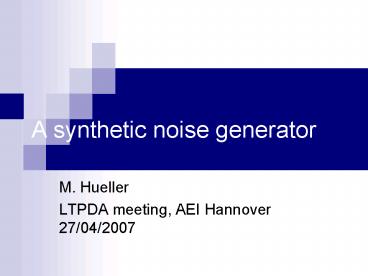

A synthetic noise generator
  • M. Hueller
  • LTPDA meeting, AEI Hannover 27/04/2007

2
Purpose
  • Simulate noise data with given continuous
    spectrum
  • Choose between
  • input the model parameters (developing and
    modeling)
  • fit experimental data
  • Use as a tool for system identification data
    simulation

3
Input parameters available features
  • LP filters
  • HP filters
  • f -2 noise, by a LP filter with roll-off at very
    low frequency
  • f -1 noise, by a cascade of LP filters with very
    low roll-off frequencies (not yet implemented)
  • Mechanical resonances
  • Mechanical forcing lines (not yet implemented)

4
The approach (1)
  • x(t) is the output of a filter, with transfer
    function H(w), with a white noise e(t) at input,
    with PSDS0
  • Assuming that the transfer function H(w) has the
    form
  • then the process x(t) can be seen as
  • the process x(t) is equivalent to Np correlated
    processes

5
The approach (2)
  • A powerful recursive formula
  • Once defined
  • One can calculate cross correlation of the
    innovation processes
  • And for the starting values

6
Matlab implementation (1)
  • Vector of starting values, with the given
    statistics
  • Propagate through time evolution, adding
    contributions from innovation processes
  • Innovations are evaluated starting from Np
    uncorrelated random variables, transformed
    according to
  • Eventually, add up the contribution from all
    correlated processes

7
Matlab implementation (2)
  • The base changing matrix Akj contains the
    eigenvectors of the cross-correlation matrix
    (diagonalization)
  • Additionally, a phase factor must be applied to
    each eigenvector, to allow the sum of all the Np
    contribution to be real
  • ?
  • Force the first element of each eigenvector to be
    real

Call from the command line (or other routines)
t_res2,x_res2 syntetic_noise(1e6,10,'lp',1,'
res',1e-2 0.5,1000 10000,'notalk',nopl')
8
  • Numeric approach some (precision?) problem
    associated with the calculation of the
    eigenvalues, impacting on the eigenvectors, being
    investigated
  • Imaginary part of the output process x(t) is not
    zero
  • This disagreement is associated with resonances
    (complex values in the cross correlation matrix)
  • Disagreement increases with the number of
    resonances
  • Compared with Mathematica evaluation, zero is
    bigger by a factor 106
  • Workaround using Symbolic Math Toolbox? Coding
    not finished yet
  • High-precision calculation in Mathematica passing
    the eigenvectors matrix to Matlab routine? This
    is also being considered

9
Some results
  • LP, roll-off _at_ 1 Hz

10
Some results
  • Resonance _at_10 mHz, Q 103
  • 106 points, evaluated in 60s

11
Some results
Normalization problem, under investigation!
  • Resonance _at_10 mHz, Q 103
  • 106 points, evaluated in 60s

12
Some results
  • Resonance _at_10 mHz, Q 103
  • 106 points, evaluated in 60s

13
Some results
Normalization problem, under investigation!
  • Resonances _at_10 mHz and 0.5 Hz, Q 103 and 104
  • 106 points, evaluated in 63s

14
  • What comes next
  • Get the fitting features to work
  • Pick the best solution for numerical precision
  • Include into the AO architecture
  • Use it as the tools for system identification
